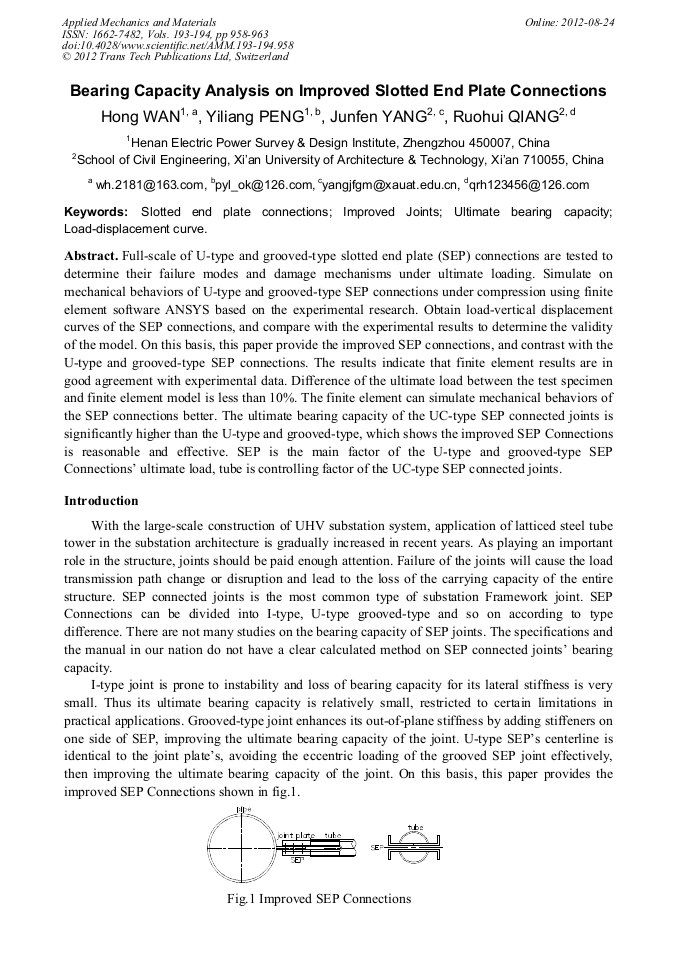

Bearing Capacity Analysis on Improved Slotted End Plate Connections

Abstract:

Full-scale of U-type and grooved-type slotted end plate (SEP) connections are tested to determine their failure modes and damage mechanisms under ultimate loading. Simulate on mechanical behaviors of U-type and grooved-type SEP connections under compression using finite element software ANSYS based on the experimental research. Obtain load-vertical displacement curves of the SEP connections, and compare with the experimental results to determine the validity of the model. On this basis, this paper provide the improved SEP connections, and contrast with the U-type and grooved-type SEP connections. The results indicate that finite element results are in good agreement with experimental data. Difference of the ultimate load between the test specimen and finite element model is less than 10%. The finite element can simulate mechanical behaviors of the SEP connections better. The ultimate bearing capacity of the UC-type SEP connected joints is significantly higher than the U-type and grooved-type, which shows the improved SEP Connections is reasonable and effective. SEP is the main factor of the U-type and grooved-type SEP Connections’ ultimate load, tube is controlling factor of the UC-type SEP connected joints.

• Periodical: Applied Mechanics and Materials (Volumes 193-194)
• Pages: 958-963
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.193-194.958
• Online since: August 2012
• Authors: Hong Wan, Yi Liang Peng, Jun Fen Yang, Ruo Hui Qiang
• Keywords: Improved Joints, Load-Displacement Curve, Slotted End Plate Connections, Ultimate Bearing Capacity

References

[1] Wu Lian1gsheng, Sun Weimin, et. al, Nonlinear FEM analysis of bearing behavior of steel tube connection with U-type flash board, J. Journal of Nanjing university of technology (Natural Science edition). 30(1) (2008) 92-96.

[2] Dai Gangping, Wang Shuhong, et. al, Nonlinear analysis on strength of full scale U-type connection with finite element method, J. Jiang Su Electrical engineering. 28(2) (2009) 44-47.

[3] Tao Qingsong, Zhang Dachang, et. al, Experimental study of connection node load bearing performance of steel tubes connected by full scale U-shape inserting plate, J. Electric power construction. 30(1) (2009) 32-34.

[4] Tao Qingsong, Zhang Dachang, et. al, Experimental research on full-scale single slotted tube connection strength of long span transmission tower, J. Special Structures. 25(5) (2008) 44-46.

[5] AISC. Specification for the design of steel hollow structural sections[S]. American Institute of steel Construction, Chicago, IL.

[6] AISC. Hollow structural sections connection manual[S]. American Institute of steel Construction, Chicago, IL.
