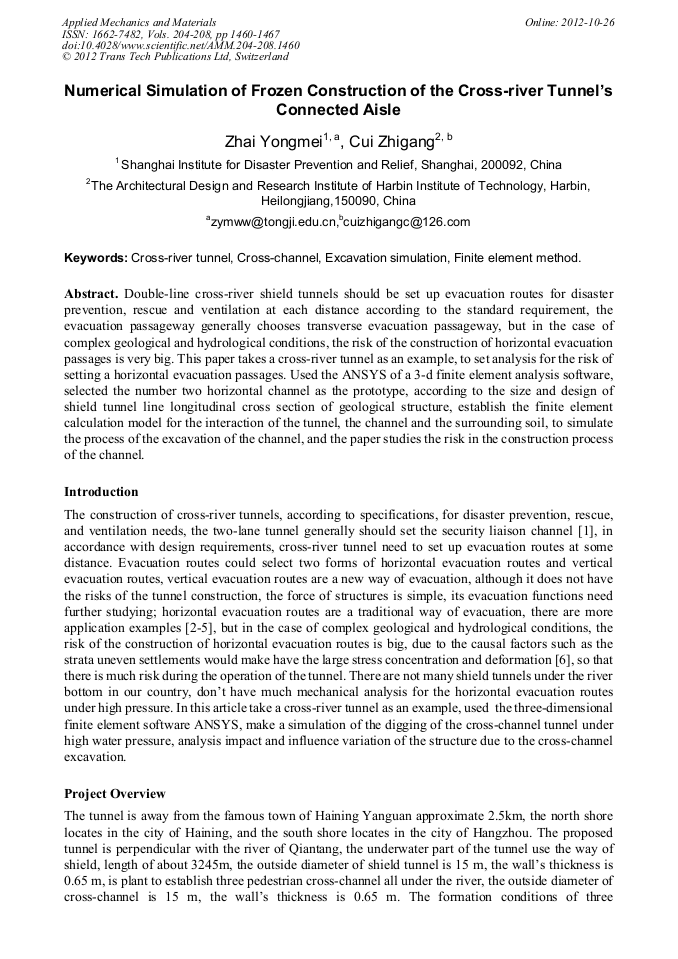

Numerical Simulation of Frozen Construction of the Cross-River Tunnel's Connected Aisle

Abstract:

Double-line cross-river shield tunnels should be set up evacuation routes for disaster prevention, rescue and ventilation at each distance according to the standard requirement, the evacuation passageway generally chooses transverse evacuation passageway, but in the case of complex geological and hydrological conditions, the risk of the construction of horizontal evacuation passages is very big. This paper takes a cross-river tunnel as an example, to set analysis for the risk of setting a horizontal evacuation passages. Used the ANSYS of a 3-d finite element analysis software, selected the number two horizontal channel as the prototype, according to the size and design of shield tunnel line longitudinal cross section of geological structure, establish the finite element calculation model for the interaction of the tunnel, the channel and the surrounding soil, to simulate the process of the excavation of the channel, and the paper studies the risk in the construction process of the channel.

• Periodical: Applied Mechanics and Materials (Volumes 204-208)
• Pages: 1460-1467
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.204-208.1460
• Online since: October 2012
• Authors: Yong Mei Zhai, Zhi Gang Cui
• Keywords: Cross-Channel, Cross-River Tunnel, Excavation Simulation, Finite Element Method (FEM)

References

[1] Prepared by the National Institute of Standards of the People's Republic of China Group: Geotechnical investigation of the specification of the Mass Transit Railway light rail(China Plans Publication,China 1999) .

[2] Zhao Jie, Ren Yun-fen and Bao Peng: Numerical Simulation of Frozen Construction of a Connected Aisle in Tianjin Metro. Journal Of Henan University(Natural Science) Vol. 37 (2007), p.434

[3] Zhang Zhi-qiang, He Chuan: Study on Construction of Cross Connection of Shield Tunnel and Connection Aisle by Freezing Method. Chinese Journal of Rock Mechanics and Engineering Vol 24(2005), pp.3211-3217.

[4] Sloan A. Storebaelt tunnels: ground treatment of cross passages. Ground Engineering, Vol 27(1994), p.20.

[5] Storry R B, Richely A, Licuanan D O. Ground treatment associated with the construction of cross-passages for the KCRC west rail phase I, Kwai Tsing tunnels in Hong Kong: Geotechnical Special Publication, New Orleans, LA, United states, 2003.

DOI: 10.1061/40663(2003)111

[6] Huang Qingfei, Yuan Daijun and Guo Xinjun: Study on Construction of Cross Connection of Shield Tunnel and Connection Aisle by Freezing Method. Chinese Journal of Rock Mechanics and Engineering. Vol 26(2007), pp.2643-2648.

[7] Li Wei: ANSYS Case Study of tunnel and underground engineering (China Water Power Press Publication, China, 2008)
