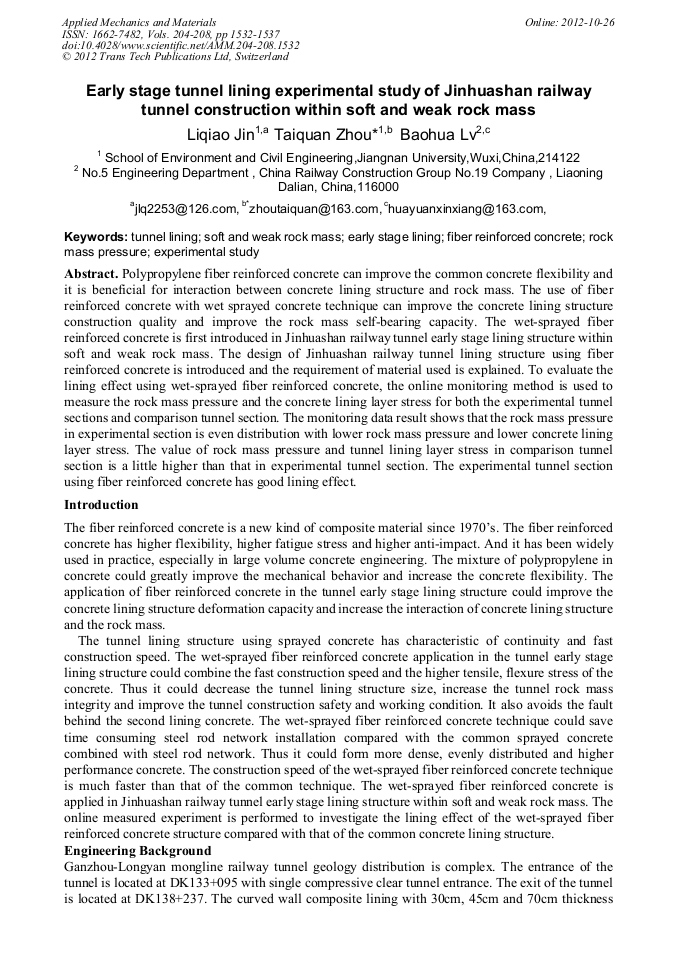

Early Stage Tunnel Lining Experimental Study of Jinhuashan Railway Tunnel Construction within Soft and Weak Rock Mass

Abstract:

Polypropylene fiber reinforced concrete can improve the common concrete flexibility and it is beneficial for interaction between concrete lining structure and rock mass. The use of fiber reinforced concrete with wet sprayed concrete technique can improve the concrete lining structure construction quality and improve the rock mass self-bearing capacity. The wet-sprayed fiber reinforced concrete is first introduced in Jinhuashan railway tunnel early stage lining structure within soft and weak rock mass. The design of Jinhuashan railway tunnel lining structure using fiber reinforced concrete is introduced and the requirement of material used is explained. To evaluate the lining effect using wet-sprayed fiber reinforced concrete, the online monitoring method is used to measure the rock mass pressure and the concrete lining layer stress for both the experimental tunnel sections and comparison tunnel section. The monitoring data result shows that the rock mass pressure in experimental section is even distribution with lower rock mass pressure and lower concrete lining layer stress. The value of rock mass pressure and tunnel lining layer stress in comparison tunnel section is a little higher than that in experimental tunnel section. The experimental tunnel section using fiber reinforced concrete has good lining effect.

• Periodical: Applied Mechanics and Materials (Volumes 204-208)
• Pages: 1532-1537
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.204-208.1532
• Online since: October 2012
• Authors: Li Qiao Jin, Tai Quan Zhou, Bao Hua Lv
• Keywords: Early Stage Lining, Experimental Study, Fiber Reinforced Concrete (FRC), Rock Mass Pressure, Soft and Weak Rock Mass, Tunnel Lining

References

[1] Hua Y., Qi H. B., Jiang Z. Q., Huang S. Z., etc. Study on the bending fatigue damage of the carbon and the polypropylene hybrid fiber reinforced concrete[J]. Key Engineering Materials, 2000 (183):.571-576.

DOI: 10.4028/www.scientific.net/kem.183-187.571

[2] Hua Y. Microstructure of the carbon and the polypropelene hybrid fiber reinforced concrete acted by bending and tensile stress[J]. Key Engineering Materials,2000,183:881-886.

DOI: 10.4028/www.scientific.net/kem.183-187.881

[3] Xu Gancheng, Bai Hongcai, Zheng yingren,etc. Underground engineering lining structure[M]. Beijing: China Water Conservancy and Hydroelectricity Press, 2002, 53-55.

[4] Guan Baoshu. Tunnel engineering design outline collections[M]. Beijing: People Communication Press, 2003, 210-223.In Chinese

[5] Zhu Hehua. Boundary element method and its application in geotechnical engineering[M]. Shanghai:Tongji University Press, 1997, 210-223. In Chinese

[6] Sun Jun. Underground engineering design theory and practice[M]. Shanghai: Shanghai science and technology Press, 1995, 310-332. In Chinese
