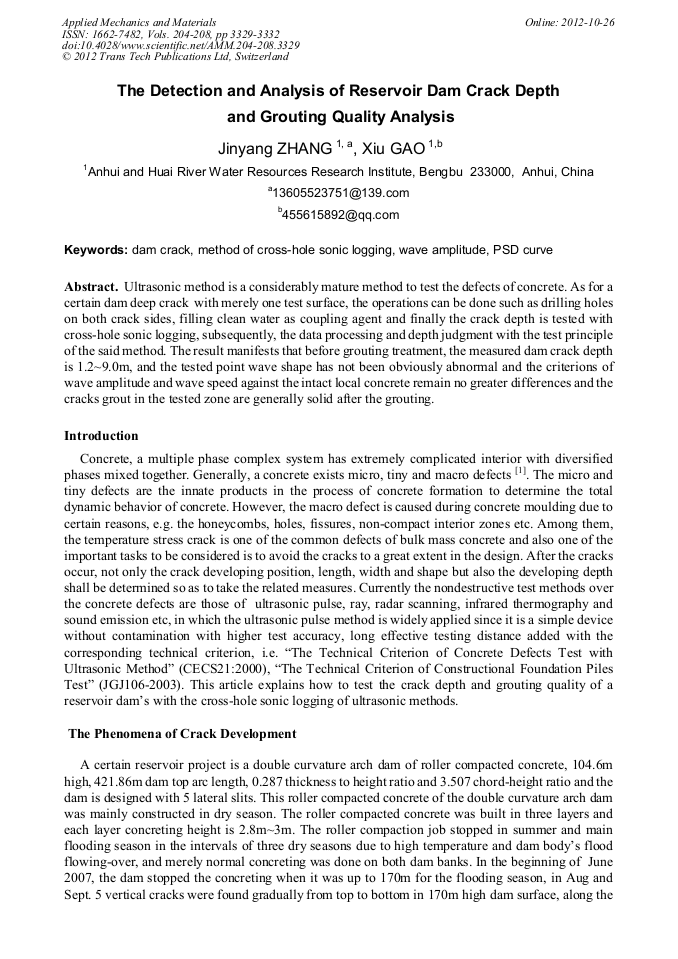

The Detection and Analysis of Reservoir Dam Crack Depth and Grouting Quality Analysis

Abstract:

Ultrasonic method is a considerably mature method to test the defects of concrete. As for a certain dam deep crack with merely one test surface, the operations can be done such as drilling holes on both crack sides, filling clean water as coupling agent and finally the crack depth is tested with cross-hole sonic logging, subsequently, the data processing and depth judgment with the test principle of the said method. The result manifests that before grouting treatment, the measured dam crack depth is 1.2~9.0m, and the tested point wave shape has not been obviously abnormal and the criterions of wave amplitude and wave speed against the intact local concrete remain no greater differences and the cracks grout in the tested zone are generally solid after the grouting.

• Periodical: Applied Mechanics and Materials (Volumes 204-208)
• Pages: 3329-3332
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.204-208.3329
• Online since: October 2012
• Authors: Jin Yang Zhang, Xiu Gao
• Keywords: Dam Crack, Method of Cross-Hole Sonic Logging, PSD Curve, Wave Amplitude

References

[1] Wu Keru, "The Introduction of Concrete Destruction Mechanism". Concrete and Cement Products, 1985, (1): 2~8

[2] Hu Qingnian, "The Cause Analysis of the Bailianya Dam Cracks in Construction Period", Anhui Construction, 2009, (6): 43~46

[3] CECS21: 2000. "Technical Criterion of Concrete Defects Detection with Ultrasonic method [S]. China Architecture and Building Press, 2000. Beijing

[4] JGJ106 – 2003. "The Technical Criterion of Constructional Foundation Pile Test [S]. China Architecture and Building Press, 2003. Beijing.
