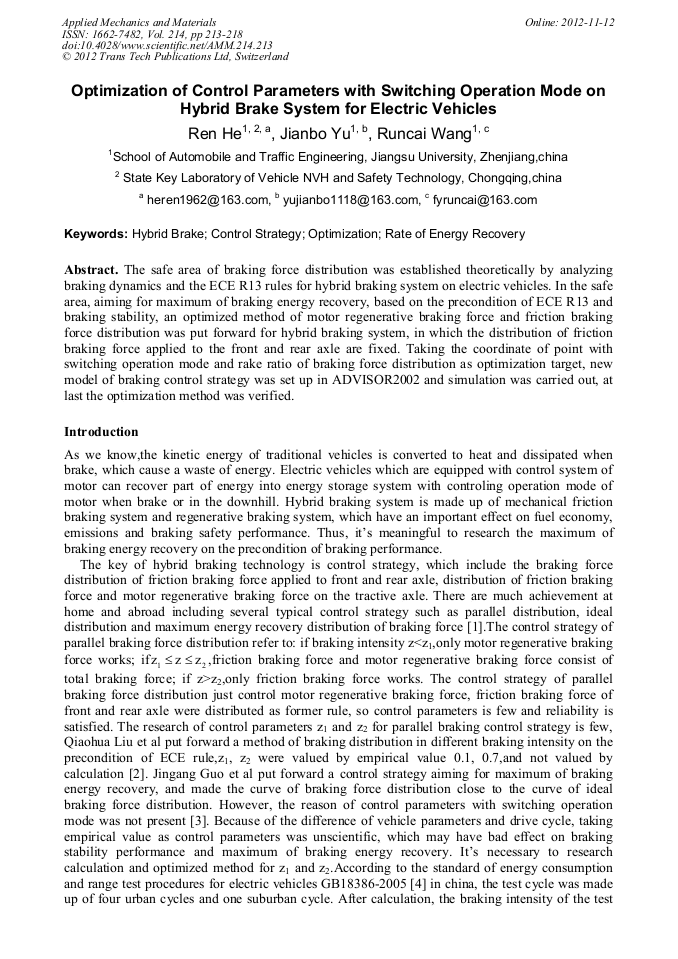

Optimization of Control Parameters with Switching Operation Mode on Hybrid Brake System for Electric Vehicles

Abstract:

The safe area of braking force distribution was established theoretically by analyzing braking dynamics and the ECE R13 rules for hybrid braking system on electric vehicles. In the safe area, aiming for maximum of braking energy recovery, based on the precondition of ECE R13 and braking stability, an optimized method of motor regenerative braking force and friction braking force distribution was put forward for hybrid braking system, in which the distribution of friction braking force applied to the front and rear axle are fixed. Taking the coordinate of point with switching operation mode and rake ratio of braking force distribution as optimization target, new model of braking control strategy was set up in ADVISOR2002 and simulation was carried out, at last the optimization method was verified.

• Periodical: Applied Mechanics and Materials (Volume 214)
• Pages: 213-218
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.214.213
• Online since: November 2012
• Authors: Ren He, Jian Bo Yu, Run Cai Wang
• Keywords: Control Strategy, Hybrid Brake, Optimization, Rate of Energy Recovery

References

[1] Lv Fengyang. Study on Coordinating Control Strategy of Regenerative Braking and Pneumatic Braking for Electric Bus (Master's Dissertation), Changchun: jilin University(2009).

[2] Liu Qiaohua, Li Yuelin, Zuo Cui et al. Hybrids Regenerative Braking Simulation. Chinese Journal of Automotive1(5), 464-468(2011).

[3] Guo Jingang, Wang Junping, Cao Binggang. Brake-Force Distribution Strategy for Electric Vehicle Based on Maximum Energy Recovery. Journal of Xi'an Jiaotong University42(5), 607-611(2008).

[4] GB/T 18386-2005. Energy consumption and range test procedures in electric vehicles(2005).

[5] Xue Dingyu, Chen Yangquan. Simulation Technique and Application of System Based on MATLAB/Simulink, second ed. TSINGHUA UNIVERSITY PRESS, Beijing(2011).

[6] Zhao Guozhu. Research on Braking Stability of Regenerative Braking System in EV and HEV. (Master's Dissertation), Nanjing: Nanjing University of Aeronautics & Astronautics(2006).

[7] Yu Zhisheng. Automobile Theory, fourth ed. CHINA MACHINE PRESS, Beijing(2006).

[8] Zhao Zhiguo, Peng Yugang. Simulation on Series Electro-hydraulic Combined Braking for 4WD Hybrid Electric Car[J]. Journal of System Simulation24(2), 1-8(2012).

[9] Hu Minghui, Qin Datong. The efficiency of a Ni-MH battery used in hybrid vehicles. Journal of Chongqing University32(3), 279-282(2009).

[10] Qiang Jiaxi, Ao Guoqiang, He Jianhui. Research on the Battery Simulation System of Electric Vehicles. Journal of Shanghai Jiaotong University43(8), 1196−1200(2009).
