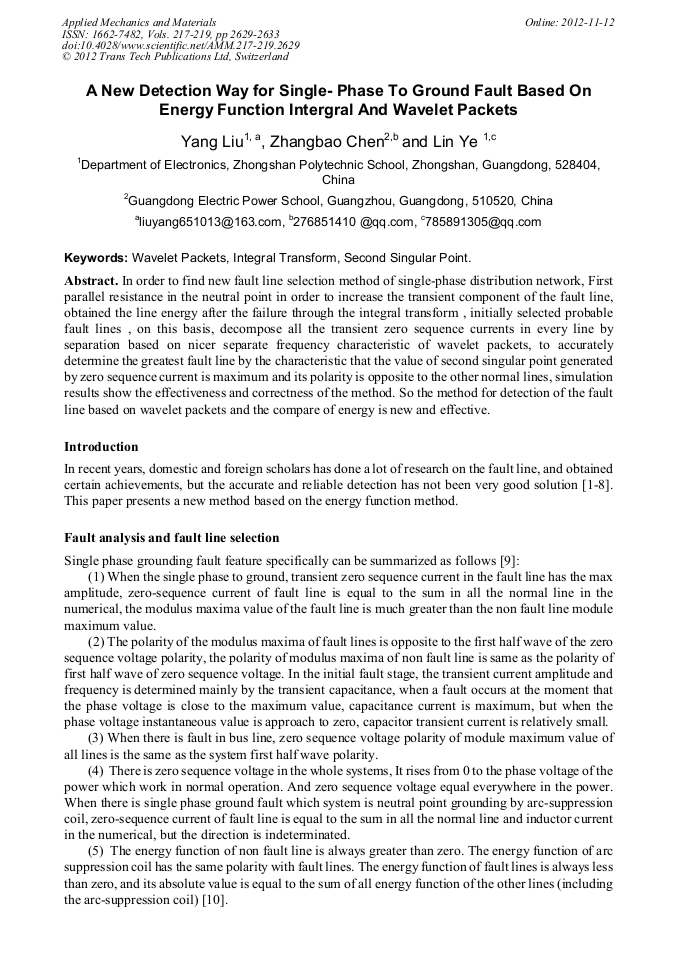

A New Detection Way for Single- Phase to Ground Fault Based on Energy Function Intergral and Wavelet Packets

Abstract:

In order to find new fault line selection method of single-phase distribution network, First parallel resistance in the neutral point in order to increase the transient component of the fault line, obtained the line energy after the failure through the integral transform , initially selected probable fault lines , on this basis, decompose all the transient zero sequence currents in every line by separation based on nicer separate frequency characteristic of wavelet packets, to accurately determine the greatest fault line by the characteristic that the value of second singular point generated by zero sequence current is maximum and its polarity is opposite to the other normal lines, simulation results show the effectiveness and correctness of the method. So the method for detection of the fault line based on wavelet packets and the compare of energy is new and effective.

• Periodical: Applied Mechanics and Materials (Volumes 217-219)
• Pages: 2629-2633
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.217-219.2629
• Online since: November 2012
• Authors: Yang Liu, Zhang Bao Chen, Lin Ye
• Keywords: Integral Transform, Second Singular Point, Wavelet Packets

References

[1] Ke Ma, Baohui Zhang, Development and Prospect of fault line selection principle of neutral point indirect ground system[J]. relay, 2003，31（5）: 65-70.

[2] Peng Mao, Yaming Sun, Zhaoning Zhang etc. The application of wavelet packet in the single-phase ground fault line selection of power distribution network[J]. Power system technology, 2000, 24(6): 9-13

[3] Yanxia Zhang, Chaoying Chen, Jie-hui Zhao etc. A new way for the single-phase earth fault line detection of distribution network[J]. Power system technology, 2002, 26(10):21-24

[4] Jingguang Huang, Yanping Lv, Single-phase fault detection based on the wavelet packet analysis of zero-sequence power components in the Petersen-coil grounded system[J]. relay, 2003, 31(6): 1-8

[5] Xiaorong Yu, Peijin Liao, Shutao Peng etc. The application of wavelet transform in finding fault feeder of earth fault in resonant grounded system[J]. Proceedings of the CSU-EPSA, 2003, 15（4）: 24-26

[6] Fengmei Cao, Peipu Su. Study on the application of wavelet transform to detect earth-fault in distribution automation system[J]. Automation of power systems, 1999,23(13):33-36

[7] Jianfeng Dai, Yanxia Zhang, Zhe Hou. Application of wavelet reconstruction algorithm in phase-to-ground fault detection of distribution networks[J]. Power system technology, 2004, 28（3）: 43-47

[8] Jianfeng Dai, Yanxia Zhang,. Study on adaptively choosing fault line under single- phase to ground fault based on analysis of multi-frequency bands.[J]. Proceedings of the Chinese Society for Electrical Engineering, 2003, 23(5): 44-47

[9] Jiehong Ye. Study and Application to Fault Line Detection in Distribution Network Based on Wavelet Analysis[D] Guangzhou, Guangdong university of technology, (2006)

[10] Benten He, Weijin Hu. A new drinciple to detect the grounded line in a neutral point indirectly grounded power system based on the energy function[J]. Journal of Zhejiang university(Natural of science), 1998, 7: 451-457

[11] Jiali He, Congju Song. The principle of power system relay protection. (revised and enlarged edition), China Electric Power Press, (2004)

[12] Chunju Fan, Weiyong Yu. Discussion on compensation mode for power distribution network[J]. Electric power automation equipment, 2001, 21（1）: 11-13

[13] Jinxia Zhang. The Analysis of over voltage and grounding protection in two grounding ways[J]. Journal of Qinghai university(natural science edition), 2001, 19（3）: 22-24

[14] Changhong Dong, Zhi Gao, Haixiao Yu. MATLAB principle and application of wavelet analysis toolbox. National defense industry press, 2004.1
