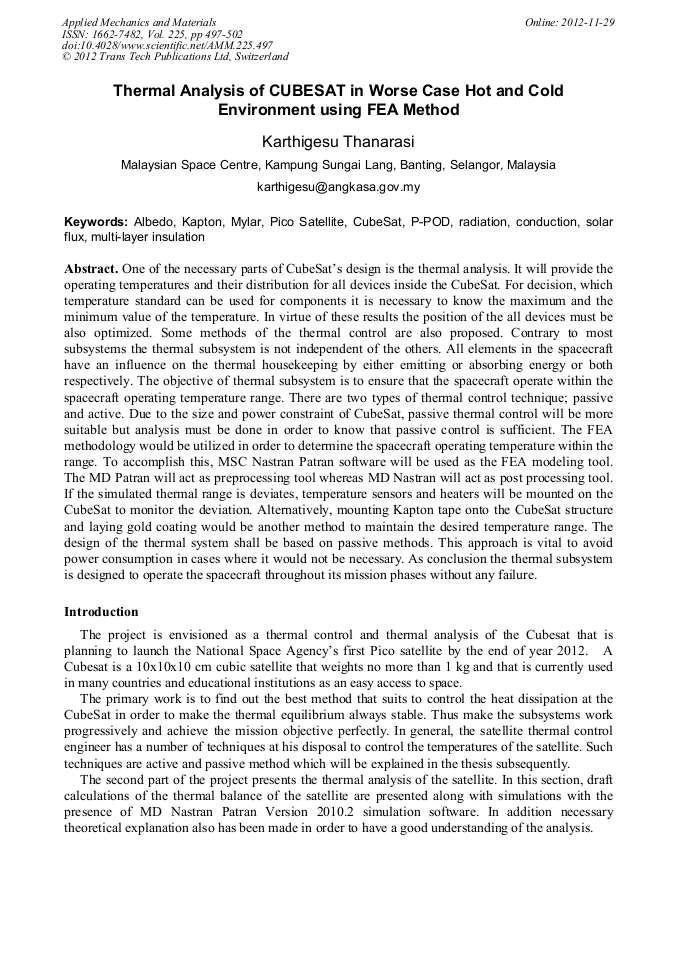

Thermal Analysis of CUBESAT in Worse Case Hot and Cold Environment Using FEA Method

Abstract:

One of the necessary parts of CubeSat’s design is the thermal analysis. It will provide the operating temperatures and their distribution for all devices inside the CubeSat. For decision, which temperature standard can be used for components it is necessary to know the maximum and the minimum value of the temperature. In virtue of these results the position of the all devices must be also optimized. Some methods of the thermal control are also proposed. Contrary to most subsystems the thermal subsystem is not independent of the others. All elements in the spacecraft have an influence on the thermal housekeeping by either emitting or absorbing energy or both respectively. The objective of thermal subsystem is to ensure that the spacecraft operate within the spacecraft operating temperature range. There are two types of thermal control technique; passive and active. Due to the size and power constraint of CubeSat, passive thermal control will be more suitable but analysis must be done in order to know that passive control is sufficient. The FEA methodology would be utilized in order to determine the spacecraft operating temperature within the range. To accomplish this, MSC Nastran Patran software will be used as the FEA modeling tool. The MD Patran will act as preprocessing tool whereas MD Nastran will act as post processing tool. If the simulated thermal range is deviates, temperature sensors and heaters will be mounted on the CubeSat to monitor the deviation. Alternatively, mounting Kapton tape onto the CubeSat structure and laying gold coating would be another method to maintain the desired temperature range. The design of the thermal system shall be based on passive methods. This approach is vital to avoid power consumption in cases where it would not be necessary. As conclusion the thermal subsystem is designed to operate the spacecraft throughout its mission phases without any failure.

• Periodical: Applied Mechanics and Materials (Volume 225)
• Pages: 497-502
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.225.497
• Online since: November 2012
• Authors: Karthigesu Thanarasi
• Keywords: Albedo, Conduction, Cubesat, Kapton, Multi-Layer Insulation, Mylar, Pico-Satellite, P-POD, Radiation, Solar Flux

References

[1] J. Larson, W.J and Wertz, J.R Space Mission Analysis & Design 3rd Edition Microcosm Press, New York, The States, 2006.

[2] Artur Scholz, Marco Hammer, Jens Giesselmann and Ali Aydinlioglu , Compass 1 Phase A Study Thesis, November 2003.

[3] Fortescue, P. W., Stark, J. and Swinerd, G., Spacecraft systems engineering, 2nd edition, John Wiley and Sons, 2003.

[4] Pol Sintes Arroyo, Mission and Thermal Analysis of the UPC Cubesat, December 2009.

[5] Yang Liu, Guo Hiu Li and Li Xiang Jiang, A new improved solution to thermal network problem in heat transfer analysis of spacecraft, 2009.
