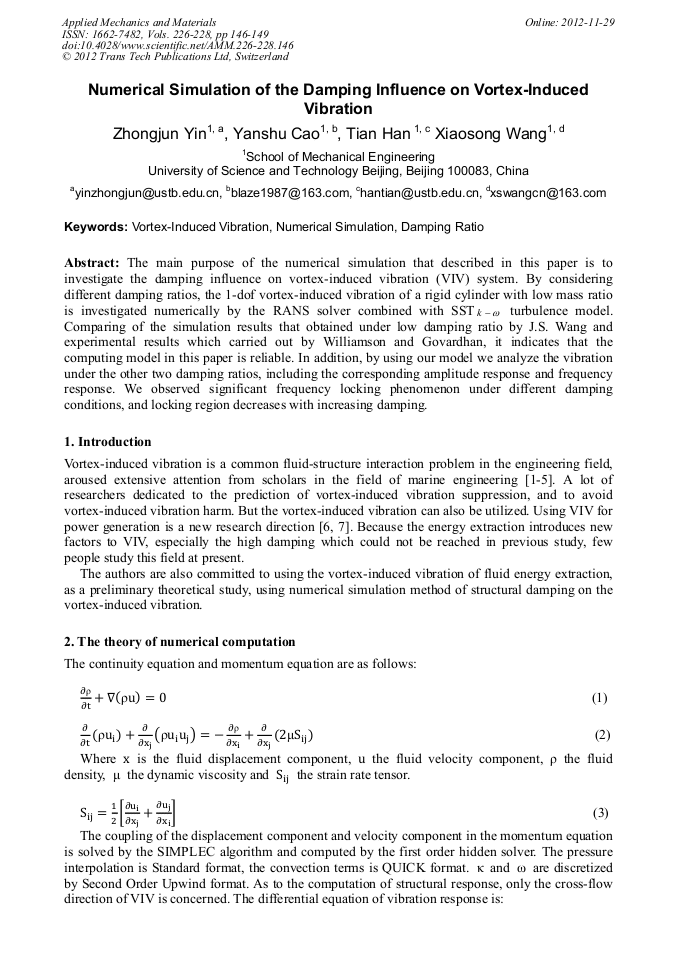

Numerical Simulation of the Damping Influence on Vortex-Induced Vibration

Abstract:

The main purpose of the numerical simulation that described in this paper is to investigate the damping influence on vortex-induced vibration (VIV) system. By considering different damping ratios, the 1-dof vortex-induced vibration of a rigid cylinder with low mass ratio is investigated numerically by the RANS solver combined with SST turbulence model. Comparing of the simulation results that obtained under low damping ratio by J.S. Wang and experimental results which carried out by Williamson and Govardhan, it indicates that the computing model in this paper is reliable. In addition, by using our model we analyze the vibration under the other two damping ratios, including the corresponding amplitude response and frequency response. We observed significant frequency locking phenomenon under different damping conditions, and locking region decreases with increasing damping.

• Periodical: Applied Mechanics and Materials (Volumes 226-228)
• Pages: 146-149
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.226-228.146
• Online since: November 2012
• Authors: Zhong Jun Yin, Yan Shu Cao, Tian Han, Xiao Song Wang
• Keywords: Damping Ratio, Numerical Simulation, Vortex-Induced Vibration (VIV)

References

[1] T. Sarpkaya. A critical review of the intrinsic nature of vortex-induced vibrations [J]. Journal of Fluids and Structures, 2004, 19: 389–447.

DOI: 10.1016/j.jfluidstructs.2004.02.005

[2] R.D. Gabbai and H. Benaroya. An overview of modeling and experiments of vortex-induced vibration of circular cylinders [J]. Journal of Sound and Vibration, 2005, 282: 575-616.

DOI: 10.1016/j.jsv.2004.04.017

[3] A. Khalak and C.H.K. Williamson. Dynamics of a hydroelastic cylinder with very low mass and damping [J]. Journal of Fluids and Structures, 1996, 10: 455-472.

DOI: 10.1006/jfls.1996.0031

[4] R. Govardhan and C.H.K. Williamson. Modes of vortex formation and frequency response for a freely vibration cylinder [J]. Journal of Fluids Mechanics, 2000, 420: 85-230.

DOI: 10.1017/s0022112000001233

[5] P.L. Zhao, J.S. Wang, S.Q. Jiang and L.B. Xu. Numerical simulation of fluid-structure interaction for vortex-induced vibration of risers[J]. Ocean Technology, 2008, 29(3): 73-77. (In Chinese).

[6] Bernitsas, M. M., Ben-Simon, Y., Raghavan, K., and Garcia, E. M. H., VIVACE (Vortex Induced Vibration Aquatic Clean Energy): A New Concept in Generation of Clean and Renewable Energy From Fluid Flow [J]. ASME J. Offshore Mech. Arct. Eng., 2008, 130, p.041101.

DOI: 10.1115/1.2957913

[7] Lee, J.H., et al., Virtual damper–spring system for VIV experiments and hydrokinetic energy conversion [J]. Ocean Engineering (2011), doi: 10. 1016/j. oceaneng. 2010. 12. 014.

DOI: 10.1016/j.oceaneng.2010.12.014
