Finite Element Model Updating of Existing T-Girder Bridge by Field Quasi-Static Generalized Influence Line

Abstract:

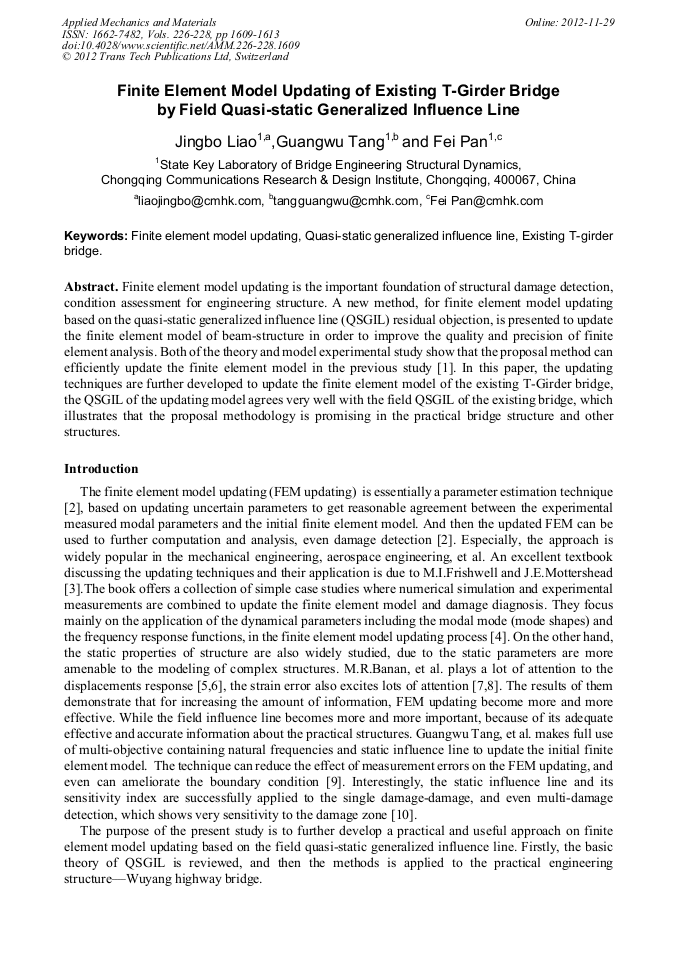

Article Preview

Finite element model updating is the important foundation of structural damage detection, condition assessment for engineering structure. A new method, for finite element model updating based on the quasi-static generalized influence line (QSGIL) residual objection, is presented to update the finite element model of beam-structure in order to improve the quality and precision of finite element analysis. Both of the theory and model experimental study show that the proposal method can efficiently update the finite element model in the previous study [1]. In this paper, the updating techniques are further developed to update the finite element model of the existing T-Girder bridge, the QSGIL of the updating model agrees very well with the field QSGIL of the existing bridge, which illustrates that the proposal methodology is promising in the practical bridge structure and other structures.

Info:

Periodical:

Edited by:

Chunliang Zhang and Paul P. Lin

Pages:

1609-1613

Citation:

J. B. Liao et al., "Finite Element Model Updating of Existing T-Girder Bridge by Field Quasi-Static Generalized Influence Line", Applied Mechanics and Materials, Vols. 226-228, pp. 1609-1613, 2012

Online since:

November 2012

Export:

Price:

$38.00

[1] J.B. Liao, G.W. Tang and L.B. Meng: Proc. Engng Vol. 31 (2012), p.348.

[2] A. Teughels and G.D. Roeck. g: Key engineering materials Vol. 245-246 (2004), p.19.

[3] M.I. Friwell and J.E. Mottershead: Finite element model updating in structural dynamics(Kluwer Academic Publishers, Dutch 1995).

[4] J.E. Mottershead and M.I. Friwell: J. Sound. Vib. Vol. 167(2)(1993), p.347.

[5] M.R. Banan, M.R. Banan and K.D. Hjelmstad: J. Struct. Engng. 120(11)(1994), p.3243.

[6] M.R. Banan, M.R. Banan and K.D. Hjelmstad: J. Struct. Engng. 120(11) (1994), p.3259.

[7] M. Sanayei and M.J. Saletnik: J. Struct. Engng. 122(5)(1996), p.555.

[8] M. Sanayei and M.J. Saletnik: J. Struct. Engng. 122(5)(1996), p.563.

[9] G.W. Tang, J.B. Liao and Y. Zhao: J. Chongqing University. 30(2007), p.131(in Chinese).

[10] G.W. Tang, J.B. Liao and Y. Zhao: Technology. Highway. transport. 6(2008), p.39(in Chinese).

[11] Y.J. Zhang H.G. Liu, L.B. Meng and F. Pan: C.N. Patent 10, 070, 102. 5. (2008).

[12] G.D. Cheng: Basic of structural optimization and design. (China Waterpower Press, China1984) (in Chinese).

[13] M.I. Friswell, J.E. Mottershead and H. Ahmadian: Phil. Trans.R. Soc. Lond.A. 359(2001), p.169.
