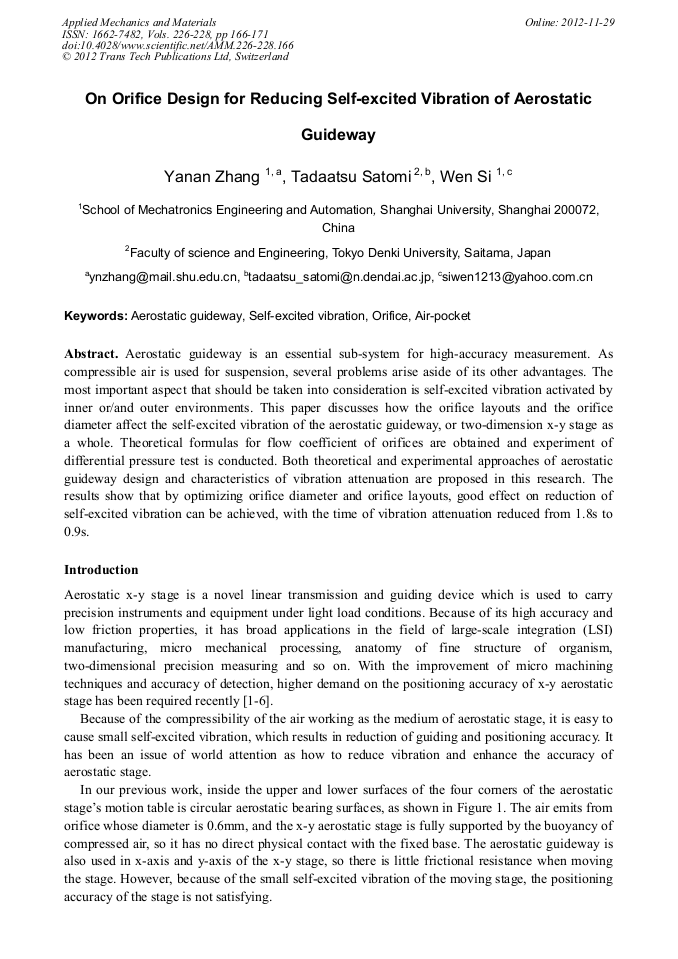

On Orifice Design for Reducing Self-Excited Vibration of Aerostatic Guideway

Abstract:

Aerostatic guideway is an essential sub-system for high-accuracy measurement. As compressible air is used for suspension, several problems arise aside of its other advantages. The most important aspect that should be taken into consideration is self-excited vibration activated by inner or/and outer environments. This paper discusses how the orifice layouts and the orifice diameter affect the self-excited vibration of the aerostatic guideway, or two-dimension x-y stage as a whole. Theoretical formulas for flow coefficient of orifices are obtained and experiment of differential pressure test is conducted. Both theoretical and experimental approaches of aerostatic guideway design and characteristics of vibration attenuation are proposed in this research. The results show that by optimizing orifice diameter and orifice layouts, good effect on reduction of self-excited vibration can be achieved, with the time of vibration attenuation reduced from 1.8s to 0.9s.

• Periodical: Applied Mechanics and Materials (Volumes 226-228)
• Pages: 166-171
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.226-228.166
• Online since: November 2012
• Authors: Ya Nan Zhang, Tadaatsu Satomi, Wen Si
• Keywords: Aerostatic Guideway, Air-Pocket, Orifice, Self-Excited Vibration

References

[1] D. J Chen, J. W Fan and F. H Zhang. Diagnosis of gas fluctuations of aerostatic guideway. Measurement, Vol. 44 (2011), p.434–444.

DOI: 10.1016/j.measurement.2010.11.008

[2] Gorka Aguirre, Farid Al-Bender and Hendrik Van Brussel. A multiphysics model for optimizing the design of active aerostatic thrust bearings. Precision Engineering, Vol. 34 (2010), p.507–515.

DOI: 10.1016/j.precisioneng.2010.01.004

[3] Uichiro Nishio, KeiSomaya and ShigekaYoshimoto. Numerical calculation and experimental verification of static and dynamic characteristics of aerostatic thrust bearings with small feedholes. Tribology International , Vol. 44 (2011), p.1790–1795.

DOI: 10.1016/j.triboint.2011.07.004

[4] Gorka Aguirre, Farid Al-Bender and Hendrik Van Brussel. A multiphysics model for optimizing the design of active aerostatic thrust bearings. Precision Engineering, Vol. 34 (2010), p.507–515.

DOI: 10.1016/j.precisioneng.2010.01.004

[5] T. OnatEkinci, J.R.R. Mayer and GuyM. Cloutier. Investigation of accuracy of aerostatic guideways. International Journal of Machine Tools & Manufacture, Vol. 49 (2009), p.478–487.

DOI: 10.1016/j.ijmachtools.2009.01.001

[6] Jooho Hwang, Chun-Hong Park and Seung-Woo Kim. Estimation method for errors of an aerostatic planar XYstage based on measured profiles errors. Int J Adv Manuf Technol, Vol. 46 (2010), p.877–883.

DOI: 10.1007/s00170-009-2008-9

[7] Tadaatsu Satomi. Studies on the aerostatic guiding system—influence of several design factors on occurrence of self-excited vibration. Precision machinery, Vol. 49 (1983) No. 9, pp.483-488(in Japanese).

[8] Tadaatsu Satomi. Studies on the Hydro-static guiding system with air—theory and Experiment on the static rigidity and stability. Precision machinery, Vol. 47(1981) No. 10, pp.1216-1222(in Japanese).

[9] Tadaatsu Satomi. Studies on the aerostatic guiding system—improvement of damping characteristics and prevention of self-excited vibration by electro-magnetic control. Precision machinery, Vol. 51(1985) No. 12, pp.2259-2264(in Japanese).

DOI: 10.2493/jjspe1933.51.2259
