Study of Side Thrust of Diesel Piston Based on Time-Domain Finite Element Method

Abstract:

Grasping the transmission of side thrust of piston is one of the effective methods to control engine vibration and noise. The paper uses time-domain FEM to study engine vibration. Firstly the finite element model is established after simplifications and modal analysis is conducted. Then the side thrust of piston is calculated and applied to cylinder liner using equivalent nodal load. The surface vibration is gained, from which it can be concluded that the displacements of upper block and top cylinder head reflect changes in cylinder pressure, while the vibration of observation window is complex. Finally, the vibration in a variety of engine working conditions is analyzed. Under load characteristics, the amplitude of engine surface vibration changes with loading; under propulsion characteristics, the surface vibration is essentially the same.

You might also be interested in these eBooks

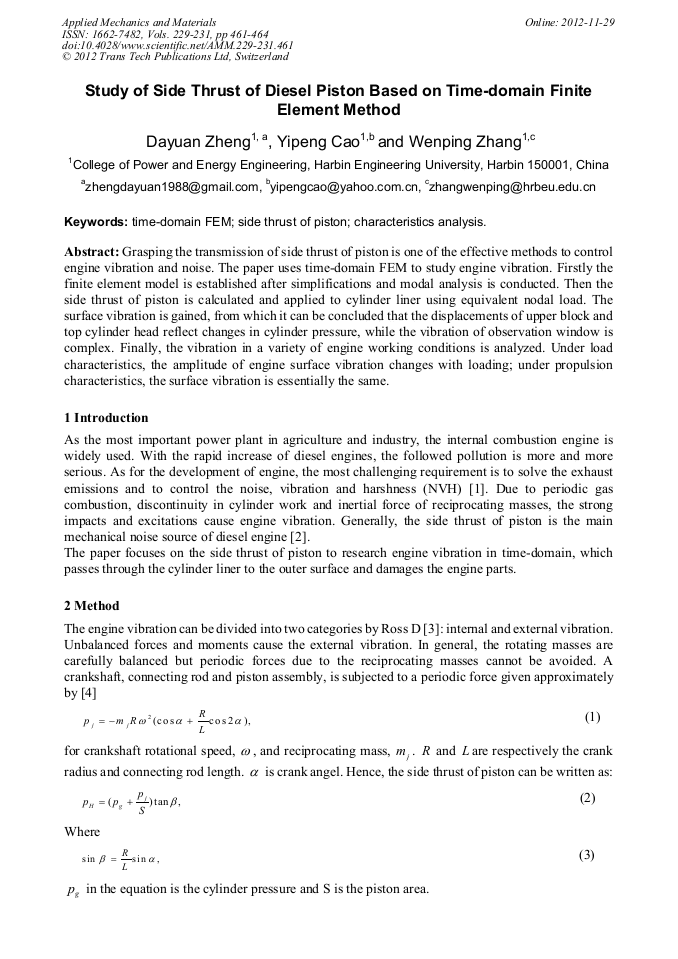

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 229-231)

Pages:

461-464

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.229-231.461

Citation:

Cite this paper

Online since:

November 2012

Authors:

Da Yuan Zheng, Yi Peng Cao, Wen Ping Zhang

Keywords:

Characteristic Analysis, Side Thrust of Piston, Time-Domain FEM

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Chen, A. and Qian, Y. Simulating Low Frequency NVH of Damped Automotive Body Panels Using Frequency Dependent Properties. SAE Paper, Number 1999-01-1836. (1999).

DOI: 10.4271/1999-01-1836

Google Scholar

[2] XIE Xingwang, ZHANG Weihai, LI Yanhong. Factors and Control of Mechanism Noise of Diesel Engine. I．C．E& Powerplant, 113 (5): pp.49-51. (2009).

Google Scholar

[3] Ross D. Mechanics of underwater noise. (Peninsula Publishing, Los Altos, CA, 1987).

Google Scholar

[4] H. Zheng, G.R. Liu, J.S. Tao, K.Y. Lam. FEM/BEM analysis of diesel piston-slap induced ship hull vibration and underwater noise. Applied Acoustics, 62(4): pp.341-358. (2001).

DOI: 10.1016/s0003-682x(00)00046-3

Google Scholar

[5] Bai Jingxiao. Study on the transfer Path of Internal Combustion Engine Combustion Noise and Evaluation. Master thesis. Harbin Engineering University, Harbin: pp.44-48. (2009).

Google Scholar

[6] Woo-Seok Choi, K.B. Park, G.J. Park. Calculation of equivalent static loads and its application. Nuclear Engineering and Design, 235(22): p.2337–2348. (2005).

DOI: 10.1016/j.nucengdes.2005.05.030

Google Scholar
