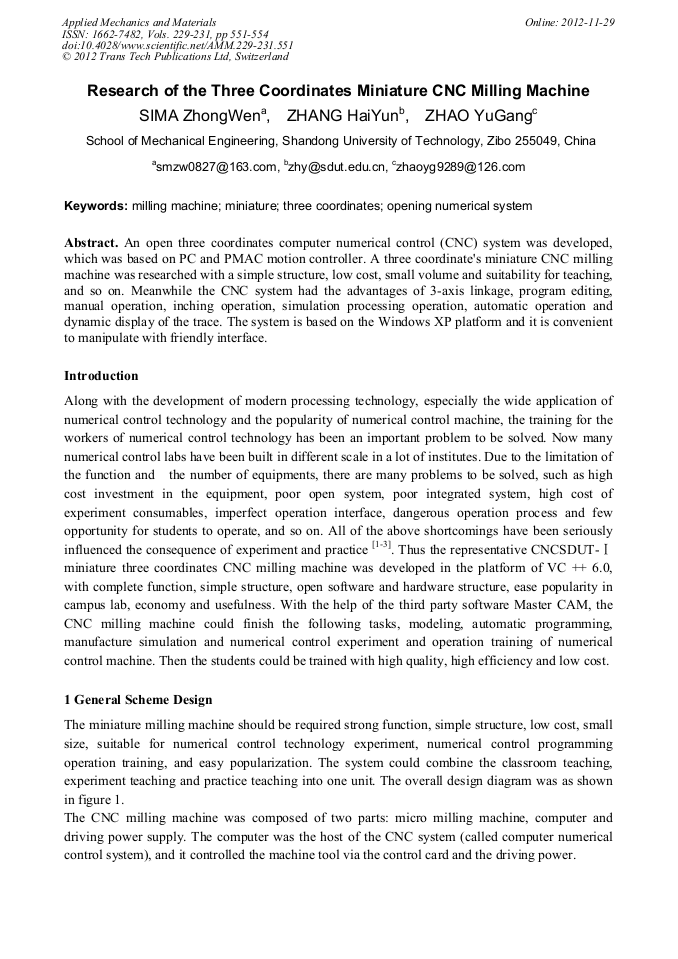

Research of the Three Coordinates Miniature CNC Milling Machine

Abstract:

An open three coordinates computer numerical control (CNC) system was developed, which was based on PC and PMAC motion controller. A three coordinate's miniature CNC milling machine was researched with a simple structure, low cost, small volume and suitability for teaching, and so on. Meanwhile the CNC system had the advantages of 3-axis linkage, program editing, manual operation, inching operation, simulation processing operation, automatic operation and dynamic display of the trace. The system is based on the Windows XP platform and it is convenient to manipulate with friendly interface.
