Simulation Analysis on Four Corners Leveling System of FRP Products Hydraulic Press

Jin Yu; Qing Long Yan; Guo Qing Huang; Jian Ping Li

doi:10.4028/www.scientific.net/AMM.233.146

Paper Titles

DSPACE Implication of HILS for Mill Control System
p.123

2-SMC of Electro-Hydraulic Drives Using the Twisting Algorithm
p.131

Study of the Hydraulic Mold System Basing on the Power Bond Graph
p.135

Research on Synchronous Control Technique of the Tube Hydroforming
p.142

Simulation Analysis on Four Corners Leveling System of FRP Products Hydraulic Press
p.146

Simulation and Analysis on Main Synchronized Hydraulic Cylinder of Huge Hydraulic Press
p.150

Numerical Simulation and Vibration Analysis of Inner Flow Field for Lage-Sized Throttle Valve
p.154

Speed Servo Control of Pneumatic Manipulator Based on Sliding Mode Variable Structure Control
p.158

The Modeling and Simulation of Water Hydraulic Overflow Valve with Giant Magnetostrictive Actuator
p.163

HomeApplied Mechanics and MaterialsApplied Mechanics and Materials Vol. 233Simulation Analysis on Four Corners Leveling...

Simulation Analysis on Four Corners Leveling System of FRP Products Hydraulic Press

Abstract:

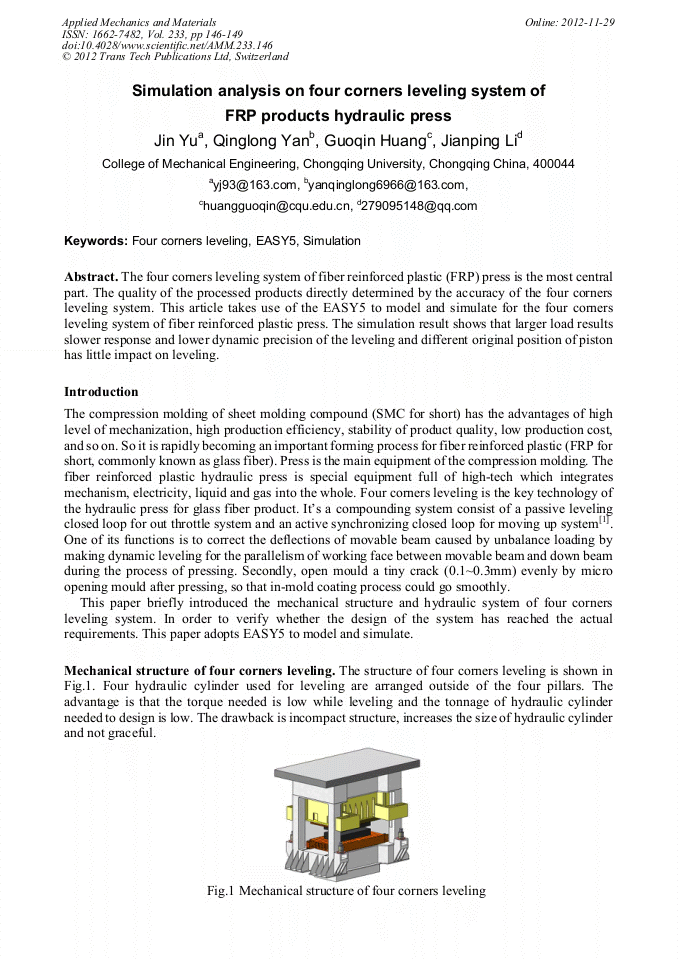

The four corners leveling system of fiber reinforced plastic (FRP) press is the most central part. The quality of the processed products directly determined by the accuracy of the four corners leveling system. This article takes use of the EASY5 to model and simulate for the four corners leveling system of fiber reinforced plastic press. The simulation result shows that larger load results slower response and lower dynamic precision of the leveling and different original position of piston has little impact on leveling.
