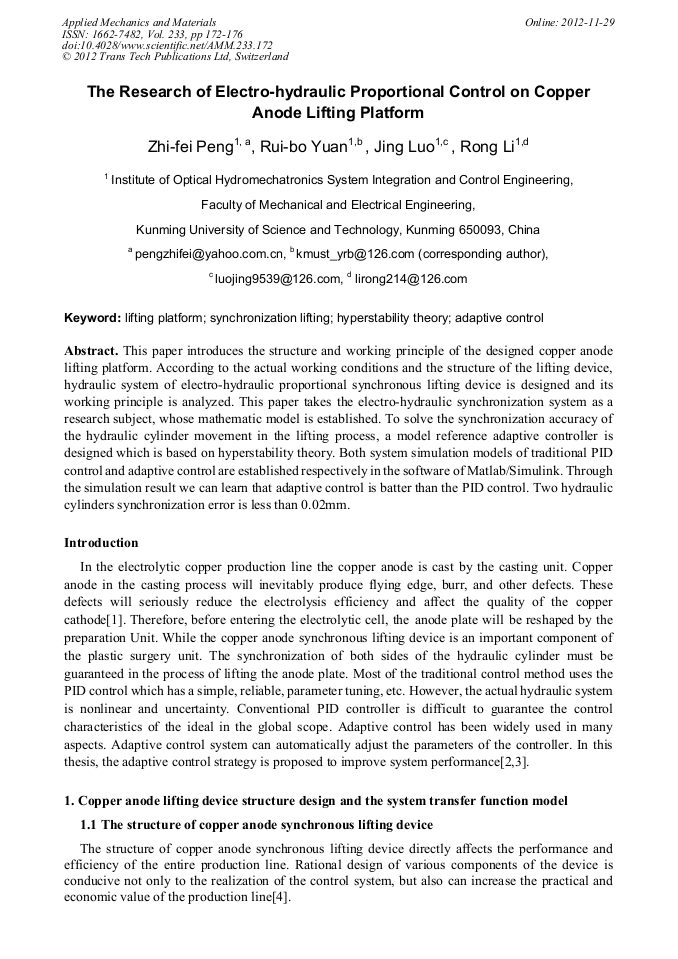

The Research of Electro-Hydraulic Proportional Control on Copper Anode Lifting Platform

Abstract:

This paper introduces the structure and working principle of the designed copper anode lifting platform. According to the actual working conditions and the structure of the lifting device, hydraulic system of electro-hydraulic proportional synchronous lifting device is designed and its working principle is analyzed. This paper takes the electro-hydraulic synchronization system as a research subject, whose mathematic model is established. To solve the synchronization accuracy of the hydraulic cylinder movement in the lifting process, a model reference adaptive controller is designed which is based on hyperstability theory. Both system simulation models of traditional PID control and adaptive control are established respectively in the software of Matlab/Simulink. Through the simulation result we can learn that adaptive control is batter than the PID control. Two hydraulic cylinders synchronization error is less than 0.02mm.

• Periodical: Applied Mechanics and Materials (Volume 233)
• Pages: 172-176
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.233.172
• Online since: November 2012
• Authors: Zhi Fei Peng, Rui Bo Yuan, Jing Luo, Rong Li
• Keywords: Adaptive Control, Hyperstability Theory, Lifting Platform, Synchronization Lifting

References

[1] Zi-rong Yuan. Fluid pressure transmission and control [M]. Chongqing: Chongqing University Press,2002.3, in Chinese.

[2] Zhen-Shun Wu. Hydraulic control system [M]. Beijing: Higher Education Press, 2008.5, in Chinese.

[3] Hong-ren Li. Hydraulic control system [M]. Beijing: National Defenses Industry Press,1990, in Chinese.

[4] Rui-bo Yuan, Ke-ding Zhao, Ge-qiang Li. Analysis and study on uncertainty for torque control servo system of electro-hydraulic load simulator. MACHINE TOOL & HYDRAULICS,2006,2:159-162

[5] De-xin Zhao. The research of electro-hydraulic proportional control on copper anode synchronous lifting device[D]. Kunming. Kunming University of

[6] Zheng-zhi Han. A textbook for adaptive control [M]. Beijing: Tsinghua University Press,2011.4, in Chinese.

[7] J Luo, CG Sun, P Zhang, et al. Research on control system of pump and valve parallel connection[C]. Applied Mechanics and Materials. 2011,44 (47):1751-1757

DOI: 10.4028/www.scientific.net/amm.44-47.1751

[8] Zhi-fei Peng, Sun Chun-geng, Yuan Rui-bo et al. The CFD analysis of main valve flow field for double-nozzle flapper servo valve[J]. International Conference on Advances in Computational Modeling and Simulation, Kunming，(2011)

DOI: 10.1016/j.proeng.2012.01.1000

[9] Sen Liu. The research of electro-hydraulic proportional speed control of walking-Beam Conveyer[D]. Kunming. Kunming University of Science and Technology，(2011)
