Study on the Design of Corner Conveyor Driven by “V” Belt with Friction

Abstract:

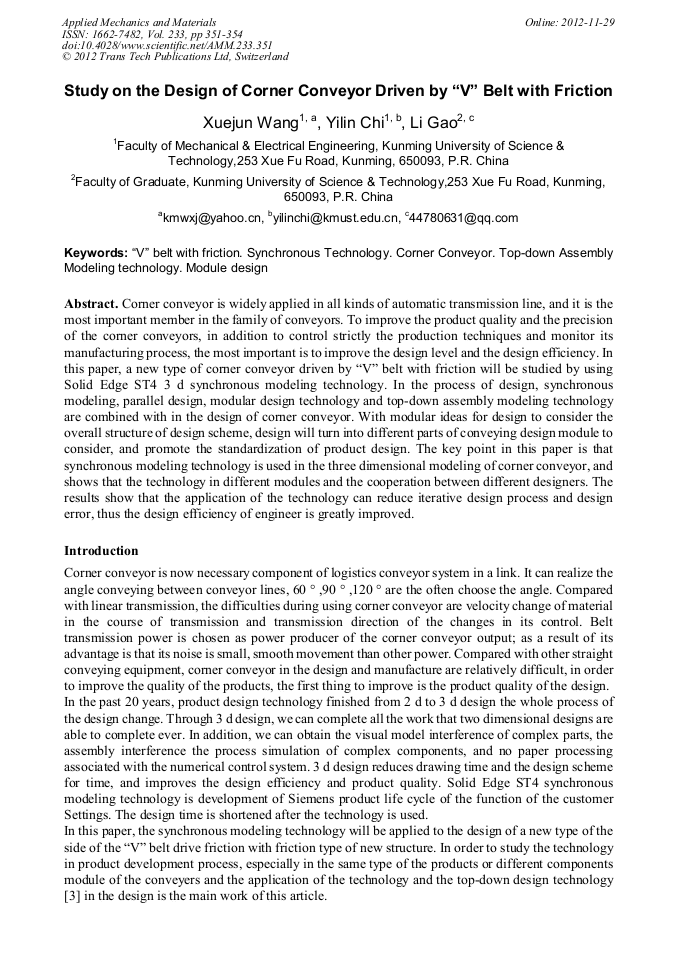

Corner conveyor is widely applied in all kinds of automatic transmission line, and it is the most important members in the family of conveyors. To improve the product quality and the precision of the corner conveyors, in addition to control strictly the production techniques and monitor its manufacturing process, the most important is to improve the design level and the design efficiency. In this paper, a new type of the side of the V belt drive friction with friction type of new structure will be studied by using Solid Edge ST4 3 d synchronous modeling technology. In the process of design, synchronous modeling, parallel design, modular design technology and top-down assembly modeling technology are combined with in the design of corner conveyor. With modular ideas for design of thought to consider the overall structure of design scheme, design will turn into different parts of conveying design module to consider, and promote the standardization of product design. The key point in this paper is that synchronous modeling technology is used in the three dimensional modeling of corner conveyor, and shows that the technology in different modules and the cooperation between different designers. The results show that the application of the technology can reduce iterative design process and design error, thus the design efficiency of engineer is greatly improved.

• Periodical: Applied Mechanics and Materials (Volume 233)
• Pages: 351-354
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.233.351
• Online since: November 2012
• Authors: Xue Jun Wang, Yi Lin Chi, Li Gao
• Keywords: “V” Belt with Friction, Corner Conveyor, Module Design, Synchronous Technology, Top-Down Assembly Modeling Technology
