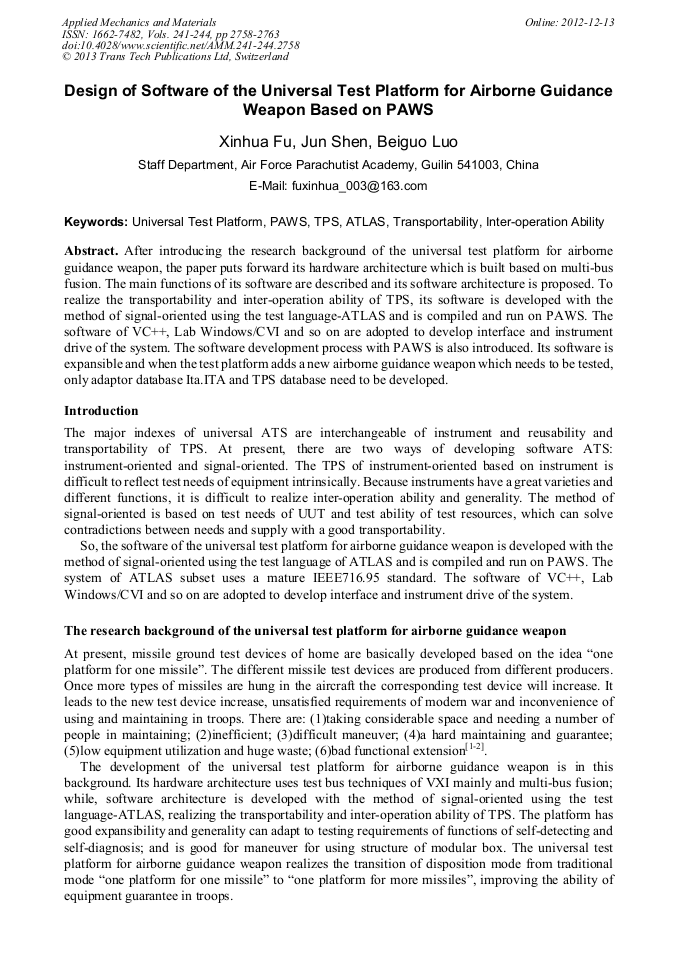

Design of Software of the Universal Test Platform for Airborne Guidance Weapon Based on PAWS

Abstract:

After introducing the research background of the universal test platform for airborne guidance weapon, the paper puts forward its hardware architecture which is built based on multi-bus fusion. The main functions of its software are described and its software architecture is proposed. To realize the transportability and inter-operation ability of TPS, its software is developed with the method of signal-oriented using the test language-ATLAS and is compiled and run on PAWS. The software of VC++、Lab Windows/CVI and so on are adopted to develop interface and instrument drive of the system. The software development process with PAWS is also introduced. Its software is expansible and when the test platform adds a new airborne guidance weapon which needs to be tested, only adaptor database Ita.ITA and TPS database need to be developed.

• Periodical: Applied Mechanics and Materials (Volumes 241-244)
• Pages: 2758-2763
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.241-244.2758
• Online since: December 2012
• Authors: Xin Hua Fu, Jun Shen, Bei Guo Luo
• Keywords: ATLAS, Inter-Operation Ability, PAWS, TPS, Transportability, Universal Test Platform

References

[1] Xiaoping Zhu. Parallel test technology and application research [D]. xi an: Air force engineering university, 2005. In Chinese

[2] Zhixin Yuan, Yi Liu. General development of Air to Air missile ground test devices [J]. Aviation weapons, 2002, (5):35~36. In Chinese

[3] TYX Inc., PAWS Developer studio course manual[Z].TYX Training Course. 6004, 2001.

[4] TYX Inc., PAWS driver development [Z]. TYX Training Course 6006, 2001.

[5] TYX Inc., Creating WCEM with MSVC [Z]. TYX Training Course, 2001.

[6] ATLAS training manual[M].IEEE C/ATLAS Std716- 1989.1992.
