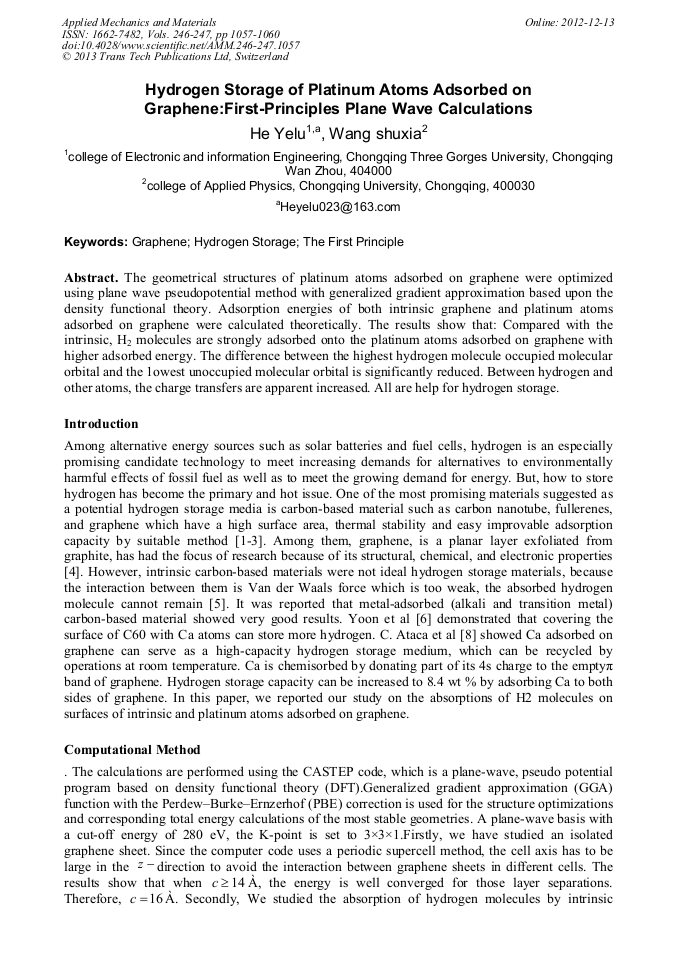

Hydrogen Storage of Platinum Atoms Adsorbed on Graphene: First-Principles Plane Wave Calculations

Abstract:

The geometrical structures of platinum atoms adsorbed on graphene were optimized using plane wave pseudopotential method with generalized gradient approximation based upon the density functional theory. Adsorption energies of both intrinsic graphene and platinum atoms adsorbed on graphene were calculated theoretically. The results show that: Compared with the intrinsic, H2 molecules are strongly adsorbed onto the platinum atoms adsorbed on graphene with higher adsorbed energy. The difference between the highest hydrogen molecule occupied molecular orbital and the 1owest unoccupied molecular orbital is significantly reduced. Between hydrogen and other atoms, the charge transfers are apparent increased. All are help for hydrogen storage.

• Periodical: Applied Mechanics and Materials (Volumes 246-247)
• Pages: 1057-1060
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.246-247.1057
• Online since: December 2012
• Authors: Ye Lu He, Shu Xia Wang
• Keywords: First-Principle, Graphen, Hydrogen Storage

References

[1] E. Durgun, S. Ciraci, W. Zhou, T. Yildirim, Transition-metal-ethylene complexes as high-capacity hydrogen-storage media. [J] Phys. Rev. Lett. 2006, 97 (22) : 226102.

DOI: 10.1103/physrevlett.97.226102

[2] Y.F. Zhao, Y.H. Kim, A.C. Dillon, M.J. Heben, S.B. Zhang, Measurement of long-range wave-function correlations in an open microwave billiard. [J]Phys. Rev. Lett. 2005, 94(3): 15504.

DOI: 10.1103/physrevlett.94.036804

[3] J.R. Cheng, L.B. Zhang, R. Ding, Z.F. Ding, X. Wang, Z. Wang, X. Fang, Influence of chemical potential on the computer simulation of hydrogen storage in single-walled carbon nanotube array[J] Comp Mater Sci. 2008, 44(2) : 601–604.

DOI: 10.1016/j.commatsci.2008.04.022

[4] O.V. Yazyev, L. Helm, Defect-induced magnetism in graphene [J] Phys. Rev. B 75 (2007) 125408.

[5] S. Dag, Y. Ozturk, S. Ciraci, T. Yildirim, Adsorption and dissociation of hydrogen molecules on bare and functionalized carbon nanotubes [J]Phys. Rev. B 72 (2005) 155404.

DOI: 10.1103/physrevb.72.155404

[6] M. Yoon et al., Calcium as the superior coating metal in functionalization of carbon fullerenes for high-capacity hydrogen storage [J]Phys. Rev. Lett. 100, (2008)206806.

DOI: 10.1103/physrevlett.100.206806

[7] LI Ming, ZHOU Zhen et al, Computational investigation and design of nanostructured hydrogen storage materials [J] Science in China B, 2009 , 39(9): 971-976.

[8] C. Ataca, E. Akturk, S. Ciraci, et al Hydrogen storage of calcium atoms adsorbed on graphene: First-principles plane wave calculations [J] Phys. Rev. B 79 (2009) 041406.

DOI: 10.1103/physrevb.79.041406

[9] Pham Tien Lam a, Phan Viet Dung et al First principles study of the physisorption of hydrogen molecule on graphene and carbon nanotube surfaces adhered by Pt atom[J]Computational Materials Science 49 (2010) S15–S20.

DOI: 10.1016/j.commatsci.2010.02.041
