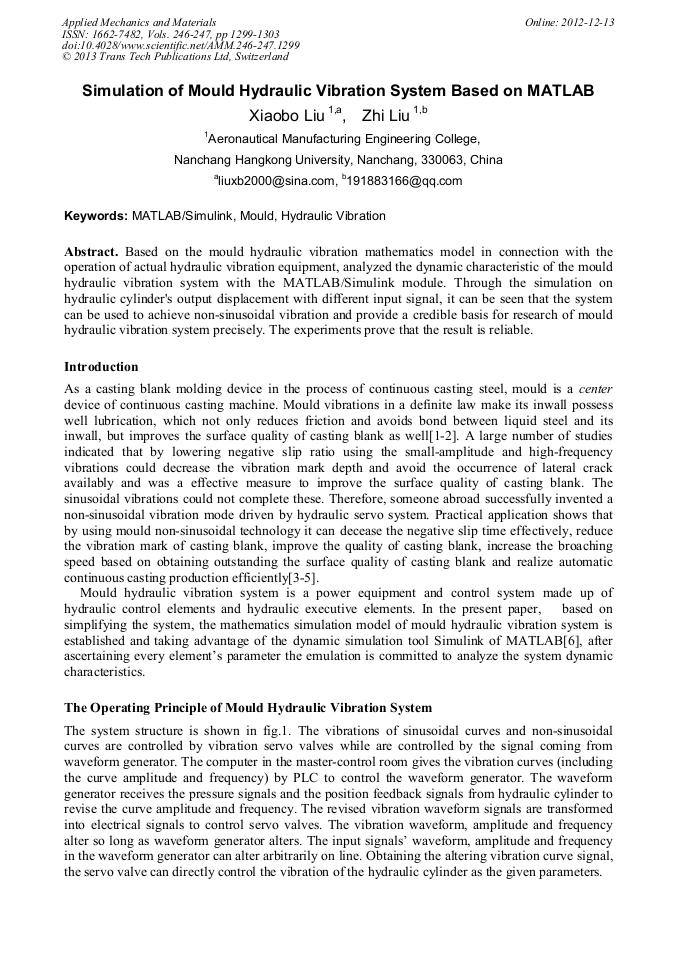

Simulation of Mould Hydraulic Vibration System Based on MATLAB

Abstract:

Based on the mould hydraulic vibration mathematics model in connection with the operation of actual hydraulic vibration equipment, analyzed the dynamic characteristic of the mould hydraulic vibration system with the MATLAB/Simulink module. Through the simulation on hydraulic cylinder's output displacement with different input signal, it can be seen that the system can be used to achieve non-sinusoidal vibration and provide a credible basis for research of mould hydraulic vibration system precisely. The experiments prove that the result is reliable.

• Periodical: Applied Mechanics and Materials (Volumes 246-247)
• Pages: 1299-1303
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.246-247.1299
• Online since: December 2012
• Authors: Xiao Bo Liu, Zhi Liu
• Keywords: Hydraulic Vibration, MATLAB/SIMULINK, Mould

References

[1] Edward S: Iron and Steel Engineer, Vol. 7(1996), p.29.

[2] Zhang Naihong, Ren Xueping, Wang Wei: Steelmaking, Vol. 20(2004), p.34(in Chinese).

[3] Watzinger J: Ironmaking and Steelmaking. Vol. 32(2005), p.208.

[4] Yu Minzhi, Li Xiankui and Zheng Xueran: Journal of Iron and Steel Research. Vol. 7(2006), p.14(in Chinese).

[5] Meng Xiangning and Zhu Miaoyong: Chinese Mech. Eng. Vol. 18(2007), p.1779(in Chinese).

[6] Huang Yongan, Ma Lu and Liu Huimin: Tsinghua University Press, Beijing, (2005) (in Chinese).
