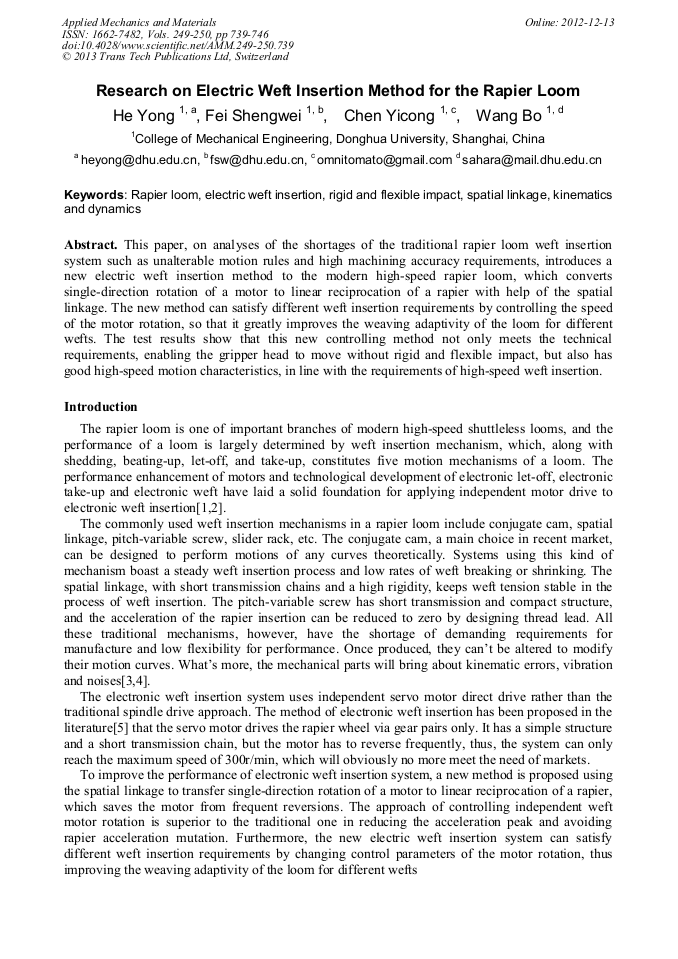

Research on Electric Weft Insertion Method for the Rapier Loom

Abstract:

This paper, on analyses of the shortages of the traditional rapier loom weft insertion system such as unalterable motion rules and high machining accuracy requirements, introduces a new electric weft insertion method to the modern high-speed rapier loom, which converts single-direction rotation of a motor to linear reciprocation of a rapier with help of the spatial linkage. The new method can satisfy different weft insertion requirements by controlling the speed of the motor rotation, so that it greatly improves the weaving adaptivity of the loom for different wefts. The test results show that this new controlling method not only meets the technical requirements, enabling the gripper head to move without rigid and flexible impact, but also has good high-speed motion characteristics, in line with the requirements of high-speed weft insertion.

• Periodical: Applied Mechanics and Materials (Volumes 249-250)
• Pages: 739-746
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.249-250.739
• Online since: December 2012
• Authors: Yong He, Sheng Wei Fei, Yi Cong Chen, Bo Wang
• Keywords: Dynamic, Electric Weft Insertion, Flexible Impact, Kinematics, Rapier Loom, Rigid Impact, Spatial Linkage

References

[1] Chen Yuanfu, Hong Canghai. Principle and Usage of Rapier Loom[M]. 2nd ed. Shanghai: China Textile Press, (2005).

[2] Wei Dong. The Researches and Development on Electric Weft Yarn Insertion System for Rapier Loom [D]. Shanghai: Donghua University, (2003).

[3] Zhu Wenhua, Li Jinhai. Brief Analysis of the Rapier-Driving Mechanisms for Flexible Rapier Loom [J]. Textile Accessories, 2001, 28(4): 29-33.

[4] Xiao Weibing. The Electronic Weft Insertion System of Rapier Loom Based on MCS-51 Microcomputer [J]. China Water Transport, 2007, 5(4): 183-184.

[5] He Yong, Wei Dong. Study on a New Method of Weft Yarn Insertion Control System [J]. Mechanical and Electronical Engineering Magazine, 2005, 22(11): 8-10.

[6] Chen Ming, Chen Renzhe. Principle of Textile Machine Design (Volume 2)[M]. 2nd ed. Beijing: China Textile Press, (1996).

[7] Huang Chen, Li Kerang, Chen Ming. Analysis of the Spatial Mechanism of the Orthogonal Crank-Rocking Lever for the Weft Insertion in Rapier Looms [J]. Journal of Textile Research, 2001, 22(2): 7-9.

[8] Li Kerang, Chen Ming. A Study of the Translation Law for the Weft Insertion Mechanism in Rapier Loom [J]. Journal of Textile Research, 2004, 25(1): 44-45.

[9] Yuan Jianguo. Analysis on the Weft Insertion of Rapier Loom Model G1731 [J]. Journal of Henan Textile College, 2005, 17(2): 4-6.

[10] Kou Baoquan, Cheng Shukang. AC Servo Motor and Its Control [M]. Beijing: China Machine Press, (2008).

[11] Li Feng. The Development of the Shaftless Driving Technology Used in the Printing Machine [D]. Shandong: Shandong University, 2006: 4-8.

[12] Wu Xingpei. Design and Analysis of the Mechanism of Complex Law of Motion. [D] Shanghai: Donghua University, (2010).
