Analysis on Welding Crack of Subcritical Power Station Boiler Platen Superheater Header

Yan Ting Feng; Xiang Feng Zheng; Xue Xia Xu; Guo Zhen Dong; Yong Wang; Peng Sun

doi:10.4028/www.scientific.net/AMM.251.446

Paper Titles

Fractal Study for Surface Cracks on the Recycled Concrete Beams with Recycled Bricks
p.426

Formation Energy Calculations of Impurity Elements at Substitutional or Interstitial Sites in Silicon
p.431

RAP Percentage and Warm Mix Additive Influence on Regenerated Asphalt Mixture Performance
p.436

Numerical Simulation of Misrun Defect of Bimetallic Composite Pipe by Investment Casting
p.442

Analysis on Welding Crack of Subcritical Power Station Boiler Platen Superheater Header
p.446

Study on Response of Adhesively Bonded Joints under Transverse Impact
p.450

The Analytical Characterization of Nonlinear Strain Rate Dependent Triaxial Braided Composites
p.455

On Yarn Unevenness Test and its Influence Factor Analysis
p.460

Influences of Process and Equipment on Filament Unevenness
p.465

HomeApplied Mechanics and MaterialsApplied Mechanics and Materials Vol. 251Analysis on Welding Crack of Subcritical Power...

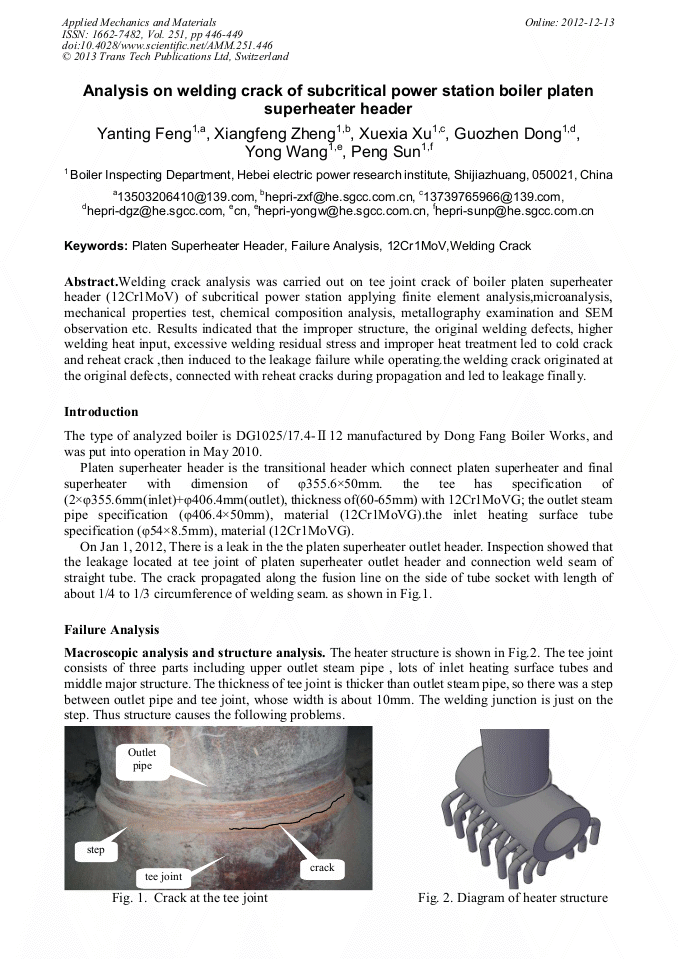

Analysis on Welding Crack of Subcritical Power Station Boiler Platen Superheater Header

Abstract:

Welding crack analysis was carried out on tee joint crack of boiler platen superheater header (12Cr1MoV) of subcritical power station applying finite element analysis,microanalysis, mechanical properties test, chemical composition analysis, metallography examination and SEM observation etc. Results indicated that the improper structure, the original welding defects, higher welding heat input, excessive welding residual stress and improper heat treatment led to cold crack and reheat crack ,then induced to the leakage failure while operating.the welding crack originated at the original defects, connected with reheat cracks during propagation and led to leakage finally.
