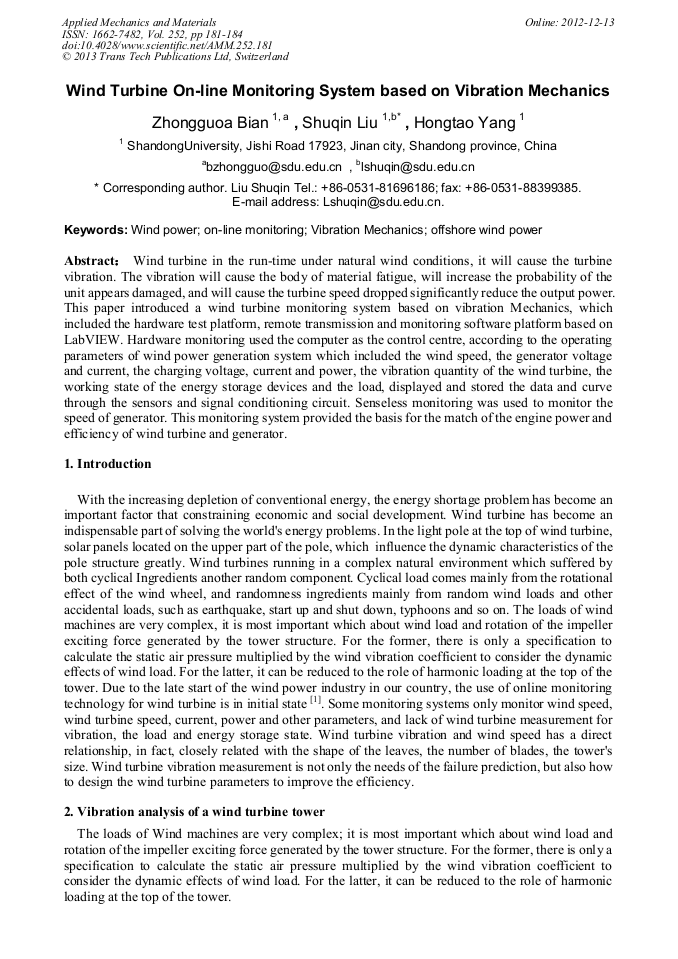

Wind Turbine On-Line Monitoring System Based on Vibration Mechanics

Abstract:

Wind turbine in the run-time under natural wind conditions, it will cause the turbine vibration. The vibration will cause the body of material fatigue, will increase the probability of the unit appears damaged, and will cause the turbine speed dropped significantly reduce the output power. This paper introduced a wind turbine monitoring system based on vibration Mechanics, which included the hardware test platform, remote transmission and monitoring software platform based on LabVIEW. Hardware monitoring used the computer as the control centre, according to the operating parameters of wind power generation system which included the wind speed, the generator voltage and current, the charging voltage, current and power, the vibration quantity of the wind turbine, the working state of the energy storage devices and the load, displayed and stored the data and curve through the sensors and signal conditioning circuit. Senseless monitoring was used to monitor the speed of generator. This monitoring system provided the basis for the match of the engine power and efficiency of wind turbine and generator.

• Periodical: Applied Mechanics and Materials (Volume 252)
• Pages: 181-184
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.252.181
• Online since: December 2012
• Authors: Zhong Guo Bian, Shu Qin Liu, Hong Tao Yang
• Keywords: Offshore Wind Power, Online Monitoring, Vibration Mechanics, Wind Power

References

[1] Shi Zhi, Cui Xinwei, Li Chunlan, Liang Bin, The Application of On-line Monitor System on Anemone-electric Generator，Compressor, Blower & Fan Technology,2007（4）

[2] Song XW, Wood HG. Computational Fluid Dynamics (CFD) Study of the 4th Generation Prototype of a Continuous Flow Ventricular Assist Device (VAD) Transactions of the ASME, 2004, 126(4):180-187.

DOI: 10.1115/1.1688776

[3] Robbins RC，Barlow CW, Oyer PE，et a1．Thirty years of cardiac transplantation at Stanford Univearing motors with hybrid PID and robust model reference adaptive control scheme. Mechatronics, 2008, 18, 35-45.

DOI: 10.1016/j.mechatronics.2007.07.007

[4] CHEN Hongwei; WANG Rongjie On Air-Blower Vibration and the Countermeasure, Noise and Vibration Control, 2007，27(2):49-52

[5] Yang Haiyan, Meng Yanjing, Li Weibing, Bao Meng, Application and Properties of Vibration sensor On wind turbine，Sensor World, 2009，5(2)：27-31

[6] Wang Yongzhi, Research on Electric Power Quality Monitoring System in Wind Generation. Journal of Hefei University of Technology, (2009)
