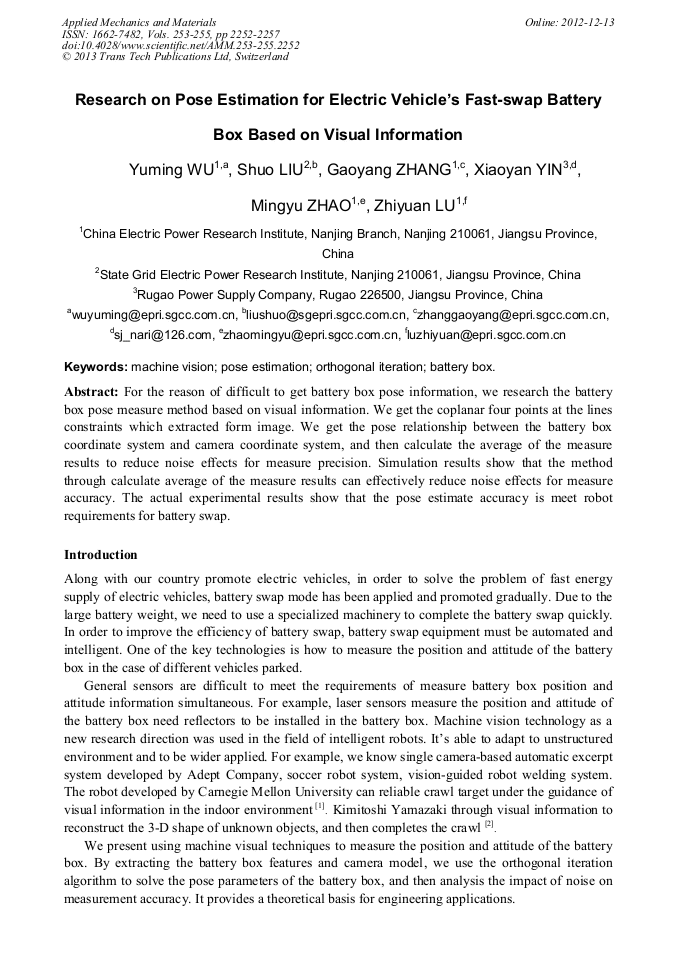

Research on Pose Estimation for Electric Vehicle’s Fast-Swap Battery Box Based on Visual Information

Abstract:

For the reason of difficult to get battery box pose information, we research the battery box pose measure method based on visual information. We get the coplanar four points at the lines constraints which extracted form image. We get the pose relationship between the battery box coordinate system and camera coordinate system, and then calculate the average of the measure results to reduce noise effects for measure precision. Simulation results show that the method through calculate average of the measure results can effectively reduce noise effects for measure accuracy. The actual experimental results show that the pose estimate accuracy is meet robot requirements for battery swap.

• Periodical: Applied Mechanics and Materials (Volumes 253-255)
• Pages: 2252-2257
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.253-255.2252
• Online since: December 2012
• Authors: Yu Ming Wu, Shuo Liu, Gao Yang Zhang, Xiao Yan Yin, Ming Yu Zhao, Zhi Yuan Lu
• Keywords: Battery Box, Machine Vision, Orthogonal Iteration, Pose Estimation

References

[1] Diankov R, Kanade T, Kuffner J. 9th IEEE-RAS International Conference on Humaniod Robots, 2009: 646-673.

DOI: 10.1109/ichr.2009.5379526

[2] Kimitoshi Yamazaki, Masahiro Tomono, and Takashi Tsubouchi. Field and Service Robotics, 2008, 42: 563-571.

[3] De Xu, Min Tan, Yuan li: Visual Measurement and control for robots. The second edition. National Defense Industry Press, BeiJing 2011. (In Chinese).

[4] Jie Li, Quanxin Ding, Peng Wang. Aeronautical computing technique, 2011, 41(6): 16-19. (In Chinese).

[5] Xiaojian Wang, Shunliang Pan, Liwei Qiu, Weiqun Shen, Zishan Song. Chinese Journal of Scientific Instrument, 2008, 29(3): 600-604. (In Chinese).

[6] Lijuan Qin, Yulan Hu, Yingzi Wei, Hong Wang, Yue Zhou. Computer engineering & science, 2009, 31(4): 49-55. (In Chinese).

DOI: 10.1109/ccdc.2008.4597943

[7] Zimiao Zhang, Peng Wang, Changku Sun. Journal of Tianjin University, 2011, 44(5): 440-444. (In Chinese).

[8] Yunxi Xu, Yunliang Jiang, Fang Chen. Acta optica sinica, 2009, 11: 3129-3135. (In Chinese).

[9] Lu C P, Hager G, Mjolsness E. IEEE Transaction on Pattern analysis and machine intelligence, 2000, 22(6): 610-622.

[10] Fakhr-Eddine Ababsa, Malik Mallem. Proceedings of VRCAI2004-ACM SIGGRAPH International Conference on Virtual Reality Continuum and its Application in Industry, 2004, 431-435.

DOI: 10.1145/1044588.1044682

[11] Rafael G. Gonzalez, Richard E. Woods: Digital Image Processing. The second edition. Publishing House of Electronics Industry, BeiJing 2007. (In Chinese).
