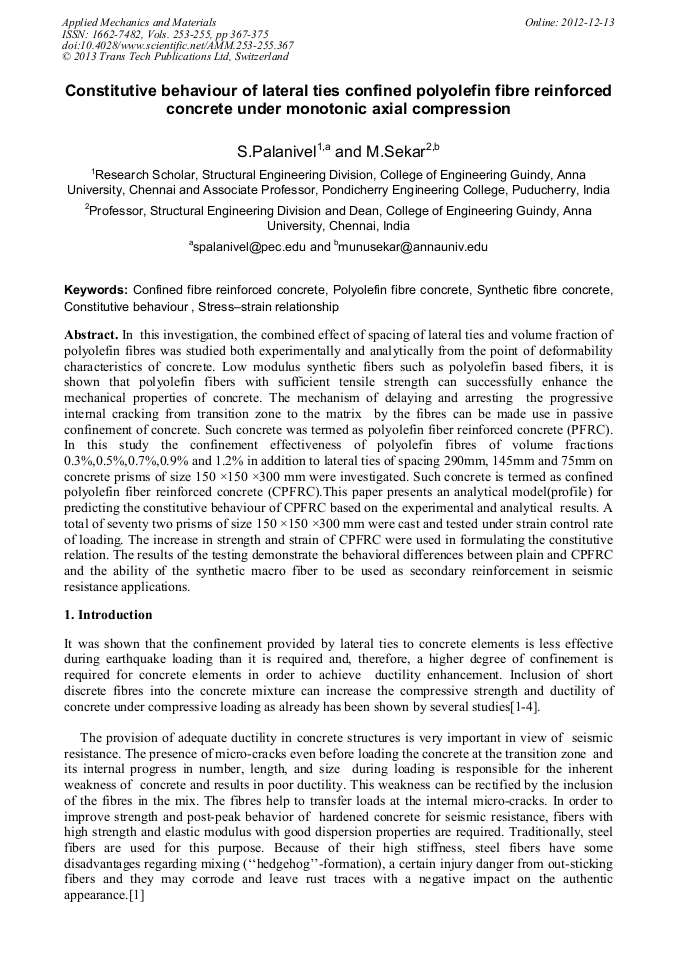

Constitutive Behaviour of Lateral Ties Confined Polyolefin Fibre Reinforced Concrete under Monotonic Axial Compression

Abstract:

In this investigation, the combined effect of spacing of lateral ties and volume fraction of polyolefin fibres was studied both experimentally and analytically from the point of deformability characteristics of concrete. Low modulus synthetic fibers such as polyolefin based fibers, it is shown that polyolefin fibers with sufficient tensile strength can successfully enhance the mechanical properties of concrete. The mechanism of delaying and arresting the progressive internal cracking from transition zone to the matrix by the fibres can be made use in passive confinement of concrete. Such concrete was termed as polyolefin fiber reinforced concrete (PFRC). In this study the confinement effectiveness of polyolefin fibres of volume fractions 0.3%,0.5%,0.7%,0.9% and 1.2% in addition to lateral ties of spacing 290mm, 145mm and 75mm on concrete prisms of size 150 ×150 ×300 mm were investigated. Such concrete is termed as confined polyolefin fiber reinforced concrete (CPFRC).This paper presents an analytical model(profile) for predicting the constitutive behaviour of CPFRC based on the experimental and analytical results. A total of seventy two prisms of size 150 ×150 ×300 mm were cast and tested under strain control rate of loading. The increase in strength and strain of CPFRC were used in formulating the constitutive relation. The results of the testing demonstrate the behavioral differences between plain and CPFRC and the ability of the synthetic macro fiber to be used as secondary reinforcement in seismic resistance applications.

• Periodical: Applied Mechanics and Materials (Volumes 253-255)
• Pages: 367-375
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.253-255.367
• Online since: December 2012
• Authors: S. Palanivel, M. Sekar
• Keywords: Confined Fibre Reinforced Concrete, Constitutive Behaviour, Polyolefin Fibre Concrete, Stress-Strain Relationship, Synthetic Fibre Concrete

References

[1] J. Kaufmann et al.: Mechanical reinforcement of concrete with bi-component fibers Composites, Part A 38 (2007) 1975–(1984)

[2] K. Ramesh et al.: Constitutive behaviour of confined fibre reinforced concrete under axial compression, Cement & Concrete Composites 25 (2003) 343–350

DOI: 10.1016/s0958-9465(02)00051-3

[3] Ganesan N, Murthy J.: Strength and behaviour of confined steel fibre reinforced concrete olumns, ACI Mater J 1990;87(2):221–7.

[4] M.N.S. Hadi: Using fibres to enhance the properties of concrete columnsConstruction and Building Materials, 21 (2007) 118–125

[5] S. Mindess et al.: Impact Resistance of Polyolefin Fibre Reinforced Precast Units, Cement and Concrete Composites 20 (1998) 387-392

DOI: 10.1016/s0958-9465(98)00016-x

[6] A. Sivakumar, M. Santhanam: Mechanical properties of high strength concrete reinforced with metallic and non-metallic fibres, Cement & Concrete Composites (2007)

DOI: 10.1016/j.cemconcomp.2007.03.006

[7] A. Tagnit-Hamou et al.: Microstructural analysis of the bond mechanism between polyolefin fibers and cement pastes, Cement and Concrete Research 35 (2005) 364–370

DOI: 10.1016/j.cemconres.2004.05.046

[8] L. Yan et al.: Polyolefin fiber-reinforced concrete compositesPart I. Damping and frequency characteristics, Cement and Concrete Research 30 (2000) 391±401

DOI: 10.1016/s0008-8846(99)00267-7

[9] L. Yan et al.: Polyolefin fiber-reinforced concrete composites Part II. Damping and interface debonding, Cement and Concrete Research 30 (2000) 403±410

DOI: 10.1016/s0008-8846(99)00268-9

[10] L. Yan et al: Interface morphologies in polyolefin fiber reinforced concrete composites, Composites Part A 29A ( 1998) 643-650

DOI: 10.1016/s1359-835x(97)00114-0

[11] C.-G. Han et al.: Performance of spalling resistance of high performance concrete with polypropylene fiber contents and lateral confinement, Cement and Concrete Research 35 (2005) 1747–1753

DOI: 10.1016/j.cemconres.2004.11.013

[12] Report on the Physical Properties and Durability of Fiber-Reinforced Concrete(ACI 544.5R-10),(2010)

[13] M. A. Mansur, M. S. Chin and T. H. Wee: stress-strain relationship of high-strength fiber concrete in compression, journal of materials in civil engineering , Feb. 1999, pp.21-29

DOI: 10.1061/(asce)0899-1561(1999)11:1(21)

[14] H.C. Lima Junior and J.S. Giongo: Steel-fibre high-strength concrete prisms confined by rectangular ties under concentric compression , Materials and Structures, Vol. 37, December 2004, p.689 – 697.

DOI: 10.1007/bf02480514

[15] U. K. Sharma, P. Bhargava, and S. A. Sheikh: Tie-confined fibre-reinforced high-strength concrete short columns, Magazine of Concrete Research, 2007, 59, No. 10, December, p.757–769.

DOI: 10.1680/macr.2007.59.10.757

[16] ACI 544.1R-96(Reapproved 2002), State-of-the-Art Report on Fiber Reinforced Concrete

[17] ACI 544.2R-89(Reapproved 1999), Measurement of Properties of Fiber Reinforced Concrete

[18] ASTM C1116, Standard Specification for Fiber-Reinforced Concrete and Shotcrete

[19] P. Paultre et al.: Behavior of Steel Fiber-Reinforced High-Strength Concrete Columns under Uniaxial Compression, Journal of structural engineering ,ASCE / october 2010 / 1225-1235

DOI: 10.1061/(asce)st.1943-541x.0000211
