Numerical Analysis of a Shallow-Buried Portal in Expressway Tunnel with Weak Rockmass

Abstract:

Aiming at the problems in construction for a shallow-buried and unsymmetrical loading portal in Banzhulin Tunnel in Yu-Xiang expressway, the finite element simulation were carried on to study the behavior for bench excavation method. Main results of numerical analysis as follows:the displacement of surrounding rock of right tunnel(as AR)at the horizontal direction is large and may larger than that of the left tunnel(as AL) at the vertical direction,and the largest deformation is 22.63mm,occuring at the key point DL. Compared with the data of monitoring measurement, the correctness of this simulation was proved.The behavior for deformation and stress of mountain tunnels as Banzhulin is basically mastered,and the displacement of rockmass is the key factor in tunnelling.

You might also be interested in these eBooks

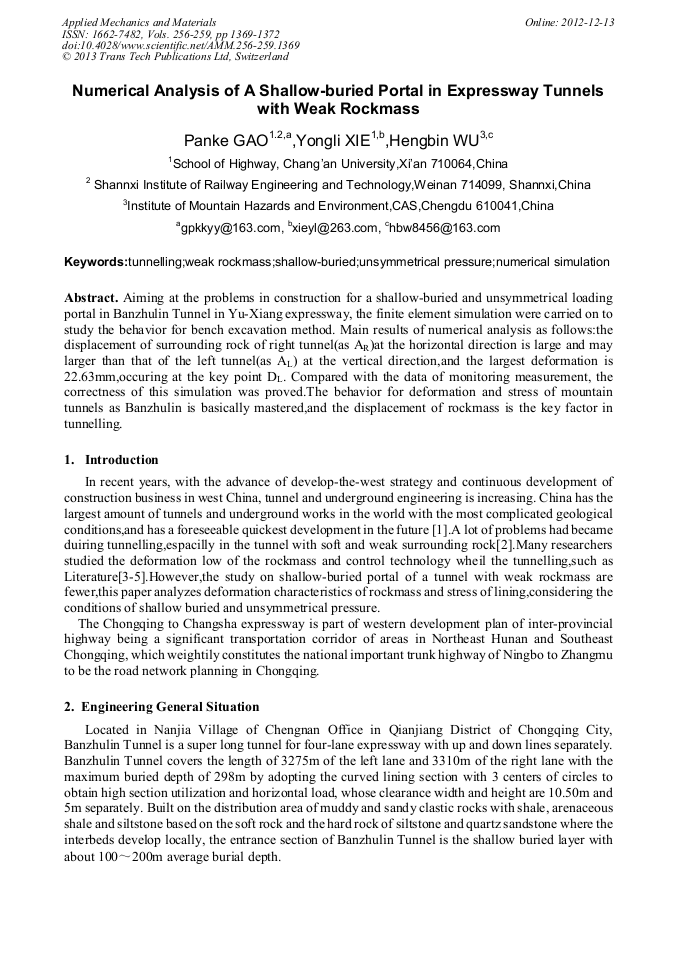

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 256-259)

Pages:

1369-1372

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.256-259.1369

Citation:

Cite this paper

Online since:

December 2012

Authors:

Pan Ke Gao, Yong Li Xie, Heng Bin Wu

Keywords:

Numerical Simulation, Shallow-Buried, Tunnelling, Unsymmetrical Pressure, Weak Rockmass

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Mengshu Wang.(2003).China has the largest amount of tunnels and underground works in the world with the most complicated geological conditions,and has a foreseeable quickest development in the future.Railway Standard Design 1,1-5.

Google Scholar

[2] Baoshu Guan.(2011).Deformation of Tunnels with Soft Surrounding Rocks and its Control.Tunnel Construction 31,1-16.

Google Scholar

[3] A.Yassaghi,H.Salari-Rad.(2005).Squeezing rock conditions at an igneous contact zone in the Taloun tunnels,Tehran-Shomal freeway,Iran:a case study. International Journal of Rock Mechanics and Mining Science 42,95-108.

DOI: 10.1016/j.ijrmms.2004.07.002

Google Scholar

[4] Panke Gao. (2009).Research on Deformation Characteristics and Reinforcement Measures of the Weak Surrounding Rock in Banzhulin Tunnel.Chongqing:ChongQing Jiaotong University.

Google Scholar

[5] Melih Genis.(2010).Assessment of the dynamic stability of the portals of the Dorukhan tunnel using numerical analysis.International Journal of Rock Mechanics and Mining Science 47,1231-1241.

DOI: 10.1016/j.ijrmms.2010.09.013

Google Scholar
