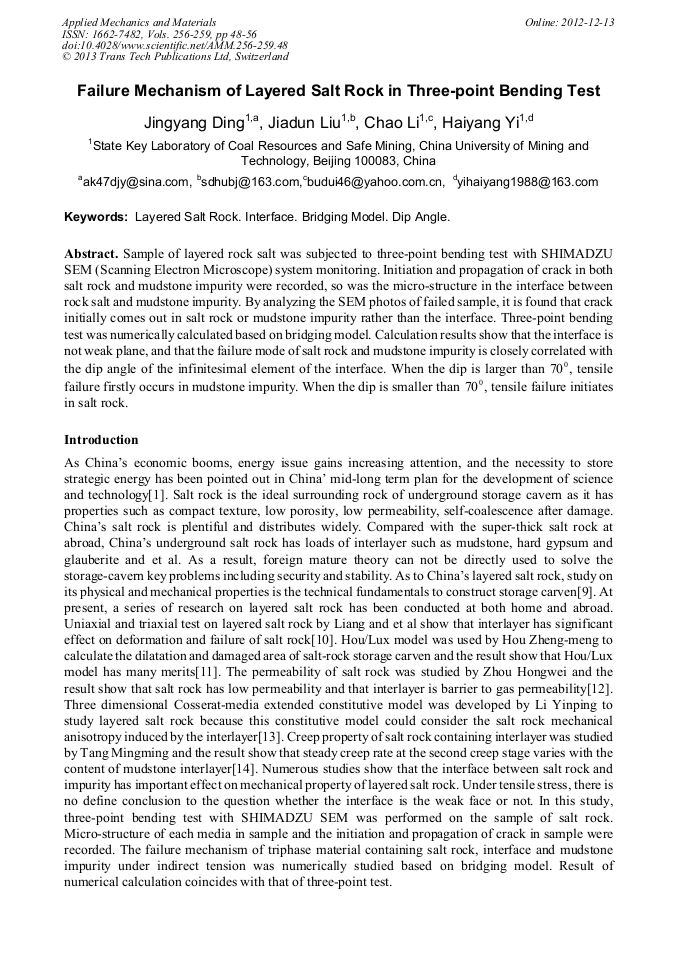

Failure Mechanism of Layered Salt Rock in Three-Point Bending Test

Abstract:

Sample of layered rock salt was subjected to three-point bending test with SHIMADZU SEM (Scanning Electron Microscope) system monitoring. Initiation and propagation of crack in both salt rock and mudstone impurity were recorded, so was the micro-structure in the interface between rock salt and mudstone impurity. By analyzing the SEM photos of failed sample, it is found that crack initially comes out in salt rock or mudstone impurity rather than the interface. Three-point bending test was numerically calculated based on bridging model. Calculation results show that the interface is not weak plane, and that the failure mode of salt rock and mudstone impurity is closely correlated with the dip angle of the infinitesimal element of the interface. When the dip is larger than 70°, tensile failure firstly occurs in mudstone impurity. When the dip is smaller than 70° , tensile failure initiates in salt rock.

• Periodical: Applied Mechanics and Materials (Volumes 256-259)
• Pages: 48-56
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.256-259.48
• Online since: December 2012
• Authors: Jing Yang Ding, Jia Dun Liu, Chao Li, Hai Yang Yi
• Keywords: Bridging Model, Dip Angle, Interface, Layered Salt Rock

References

[1] Yanchun Tang. Study on washing process of rock-salt cavern with coupled stress-dissolving mechanism [Ph.D.Thesis][D]. Wuhan:Institute of Rock and Soil Mechanics, Chinese Academy of Sciences, 2007.(in Chinese)

[2] Xueying Yin, Chunhe Yang, Jianwen Chen. Numerical simulation research on long-term stability of gas storage in Jintan salt Mine[J]. Rock and Soil Mechanics, 2006, 27(6):869-874. (in Chinese)

[3] Chunhe Yang, Yinping Li, Dan'an Qu, et al. Advances in researches of the mechanical behaviors of bedded salt rocks[J]. Advances In Mechanics, 2008, 38(4):484-494. (in Chinese)

[4] Jianwen Chen. Studies on temperature effect of mechanical properties and micro mechanism of rock salt [Ph.D.Thesis][D]. Wuhan:Institute of Rock and Soil Mechanics,Chinese Academy of Sciences, 2008. (in Chinese)

[5] Ph.Cosenza, M.Ghoreychi. Effects of very low permeability on the long-term evolution of a storage cavern in rock salt[J]. International Journal of Rock Mechanics and Mining Sciences,1999,36(4): 527~533.

DOI: 10.1016/s0148-9062(99)00018-2

[6] Yinping Li, Jiang Liu, Chunhe Yang. Influence of mudstone interlayer on deformation and failure characteristics of salt rock[J]. Chinese Journal of Rock Mechanics and Engineering,2006,25(12): 2461-2466. (in Chinese)

[7] Yanhui Liu, Xiao Li, Shouding Li, et al. Distribution and structural fabric features of mudstone interlayer of rock salt in underground gas storage[J]. Rock and Soil Mechanics, 2009, 30(12): 3627-3632. (in Chinese)

[8] Chunhe Yang, Li Yinping, Chen Feng. Mechanics and Engineering of Layered Salt Rock[M].Beijing: Science Press, 2009. (in Chinese)

[9] Ruidong Peng, Zhide Wu, Hongwei Zhou, et al. Meso-experimental investigation of crack evolution in bedded salt rock[J]. Chinese Journal of Rock Mechanics and Engineering, 2011, 30(Supp.2): 3953-3959. (in Chinese)

[10] W.Liang, C.Yang, Y.Zhao, et al. Experimental investigation of mechanical properties of bedded salt rock[J]. International Journal of Rock Mechanics and Mining Sciences,2007,44(3):400~411.

DOI: 10.1016/j.ijrmms.2006.09.007

[11] Zhengmeng Hou, Wen Wu. Improvement of design of storage cavity in rock salt by using the Hou/Lux constitutive model with consideration of creep rupture criterion and damage[J]. Journal of Soil Engineering,2003,25(1):105-108. (in Chinese)

[12] Hongwei Zhou, Jinming He, Zhide Wu. Permeability and meso-structure characteristics of bedded salt rock[J]. Chinese Journal of Rock Mechanics and Engineering, 2009, 28(10): 2068-2073. (in Chinese)

[13] Yinping Li, Chunhe Yang. Three-dimensional expanded Cosserat medium constitutive model for laminated salt rock[J]. Rock and Soil Mechanics,2006,27(4):509-513. (in Chinese)

[14] Mingming Tang, Zhiyin Wang, Guosheng Ding, et al. Creep property experiment and constitutive relation of salt-mudstone interlayer[J]. Journal of China Coal Society,2010,35(1):42-45. (in Chinese)

[15] Zhengming Huang. On a general constitutive description for the inelastic and failure behavior of fibrous laminates––Part I: Lamina theory. Computer&Structures,2002,80(13):1159-1176.

DOI: 10.1016/s0045-7949(02)00074-3

[16] Zhengming Huang. Introduction to microscopic mechanics of composite[M].Beijing:Science Press,2004.(in Chinese)
