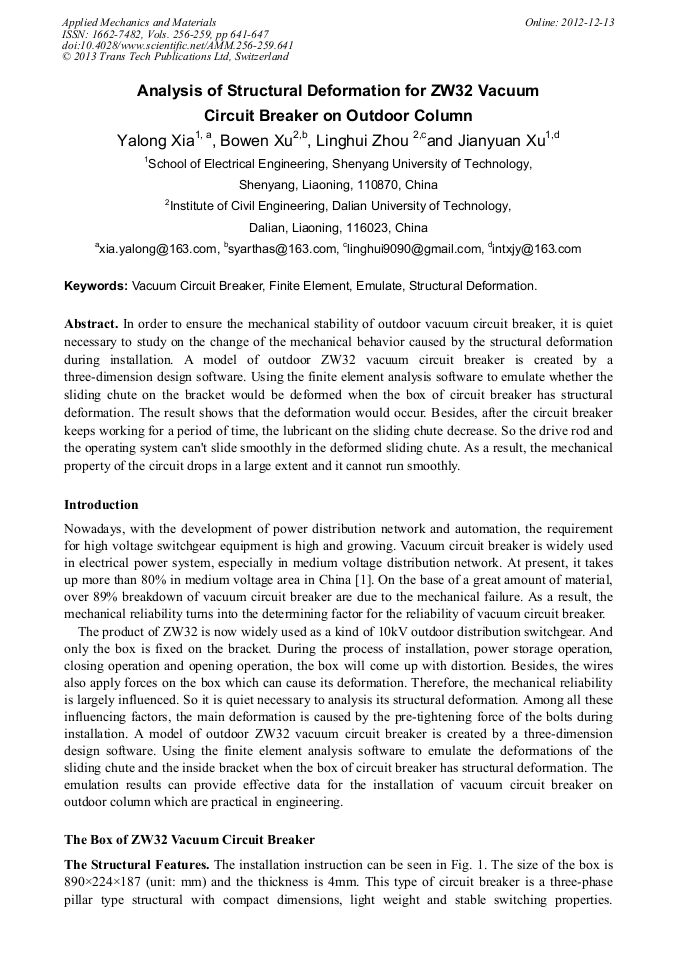

Analysis of Structural Deformation for ZW32 Vacuum Circuit Breaker on Outdoor Column

Abstract:

In order to ensure the mechanical stability of outdoor vacuum circuit breaker, it is quiet necessary to study on the change of the mechanical behavior caused by the structural deformation during installation. A model of outdoor ZW32 vacuum circuit breaker is created by a three-dimension design software. Using the finite element analysis software to emulate whether the sliding chute on the bracket would be deformed when the box of circuit breaker has structural deformation. The result shows that the deformation would occur. Besides, after the circuit breaker keeps working for a period of time, the lubricant on the sliding chute decrease. So the drive rod and the operating system can't slide smoothly in the deformed sliding chute. As a result, the mechanical property of the circuit drops in a large extent and it cannot run smoothly.

• Periodical: Applied Mechanics and Materials (Volumes 256-259)
• Pages: 641-647
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.256-259.641
• Online since: December 2012
• Authors: Ya Long Xia, Bo Wen Xu, Ling Hui Zhou, Jian Yuan Xu
• Keywords: Emulate, Finite Element, Structural Deformation, Vacuum Circuit Breaker

References

[1] X. Lin: Modern High Voltage Electric Technology. (Machinery Industry Press, China 2011).

[2] R. Ringlee: Power System Reliability Calculation. (MIT Press Cambridge, English 1983).

[3] Y.Z. Zhang: Elasticity and the Method of Finite Element Analysis. (China Railway Publishing House, China 1983).

[4] Y. Huang: Basis of Elasticity and the Method of Finite Element Analysis. (Metallurgical Industry Press, China 1983).

[5] H. Q. Yu, D. J. Chen: Metal Forming Principles. (Machinery Industry Press, China 1999).

[6] J.W. Zhao, H.Y. Wang: Structural Finite Element Analysis. (Science Press, China 2001).

[7] X.C. Wang: the Method of Finite Element Analysis and Numerical Method. (Tsinghua University Press, China 1983).

[8] K.Z. Yang, G.Y. Cheng, Z.S. Li: Fundamentals of Machine Design. (Higher Education Press, China 2005).
