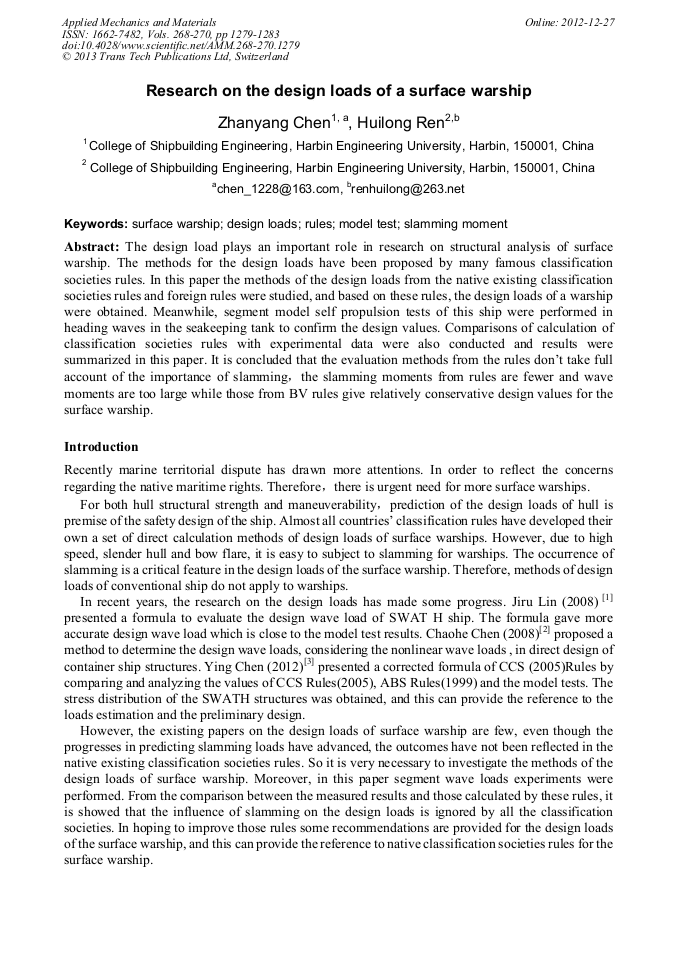

Research on the Design Loads of a Surface Warship

Abstract:

The design load plays an important role in research on structural analysis of surface warship. The methods for the design loads have been proposed by many famous classification societies rules. In this paper the methods of the design loads from the native existing classification societies rules and foreign rules were studied, and based on these rules, the design loads of a warship were obtained. Meanwhile, segment model self propulsion tests of this ship were performed in heading waves in the seakeeping tank to confirm the design values. Comparisons of calculation of classification societies rules with experimental data were also conducted and results were summarized in this paper. It is concluded that the evaluation methods from the rules don’t take full account of the importance of slamming，the slamming moments from rules are fewer and wave moments are too large while those from BV rules give relatively conservative design values for the surface warship.

• Periodical: Applied Mechanics and Materials (Volumes 268-270)
• Pages: 1279-1283
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.268-270.1279
• Online since: December 2012
• Authors: Zhan Yang Chen, Hui Long Ren
• Keywords: Design Loads, Model Test, Rules, Slamming Moment, Surface Warship

References

[1] Jiru Lin, Liguo Shi, Guohong You, et al. The Method for Evaluating the Design Wave Loads on SWATH Ship[J]. SHIPBUILDING OF CHINA. 2008, 49(3): 104-111(In Chinese).

[2] Chaohe Chen, Weifang Zhong, et al. Calculation of the design wave load of a container ship structure[J]. J. Huazhong Univ. of Sci. & Tech. (Natural Science Edition). 2008, 36(10): 110-113(In Chinese).

[3] Ying Chen, Yalin Yue, Jiru Lin. Research on the design loads of the SWATH[J]. Journal of Ship Mechanics. 2012, 16(1-2): 101-107(In Chinese).

[4] Design criteria for hull longitudinal strength and stiffness [S] (In Chinese).

[5] GJB/Z 119-99. Method for structural deign and strength calculation of naval surface ships[S]. 1999(In Chinese).

[6] BUREAU VERITAS (BV). Rules for the Classification of Military Ships[S]. (2003).

[7] LLOYD'S REGISTER (LR). Provisional Rules for the Classification of Naval Ships[S]. (1999).

[8] Xueliang Wang, Jiajun Hu, Xuekang Gu, et al. Comparative Studies of the Transverse Structure Design Wave Loads for a Trimaran by Model Tests and Rule Calculations[J]. Journal of Ship Mechanics. 2011, 15(3): 269-275(In Chinese).

[9] Zhanyang Chen, Huilong Ren, Hui Li, et al. The wave load experimental investigation of segmented model of a very large ship based on variable cross-section beams[J]. Journal of Harbin Engineering University. 2012, 33(3): 1-6(In Chinese).

[10] Zhanyang Chen, Huilong Ren, Hui Li. Experimental and Numerical Analysis of Bow Slamming and Whipping in Different Sea States[J]. Journal of Ship Mechanics. 2012, 16(3): 246-253.
