Effect of Sintering Temperature on Microstructure and Mechanical Properties of WC-16TiC-xTaC-9Co Cemented Carbides

Chong Cai Zhang; Quan Wang

doi:10.4028/www.scientific.net/AMM.268-270.340

Paper Titles

Multi-Fractional Research on Pore Distribution in the Sinter Ore with Different Basicity
p.321

Study on the Corrosion Resistance of High Boron Iron-Based Alloy
p.326

Study on Corrosion Behavior of Hot Extruded Mg-1Ca-0.5Mn Alloy in Sodium Chloride Water Solution
p.330

Model Analysis on Particles Size Distribution of Beryllium Powder
p.336

Effect of Sintering Temperature on Microstructure and Mechanical Properties of WC-16TiC-xTaC-9Co Cemented Carbides
p.340

Multi-Fractal Behaviors in Grain Size Distribution of Low Silica Sinter
p.344

Comparison Analysis of Aircraft Aluminum Alloy Corrosion Damage Forecasting Method
p.348

Anisotropy Affecting Dendrite Growth of Fe-C Alloy in a Forced Flow
p.352

Comprehensive Mathematical Model of Full Oxygen Blast Furnace with Top Recycle Gas Heated by Gasifier
p.356

HomeApplied Mechanics and MaterialsApplied Mechanics and Materials Vols. 268-270Effect of Sintering Temperature on Microstructure...

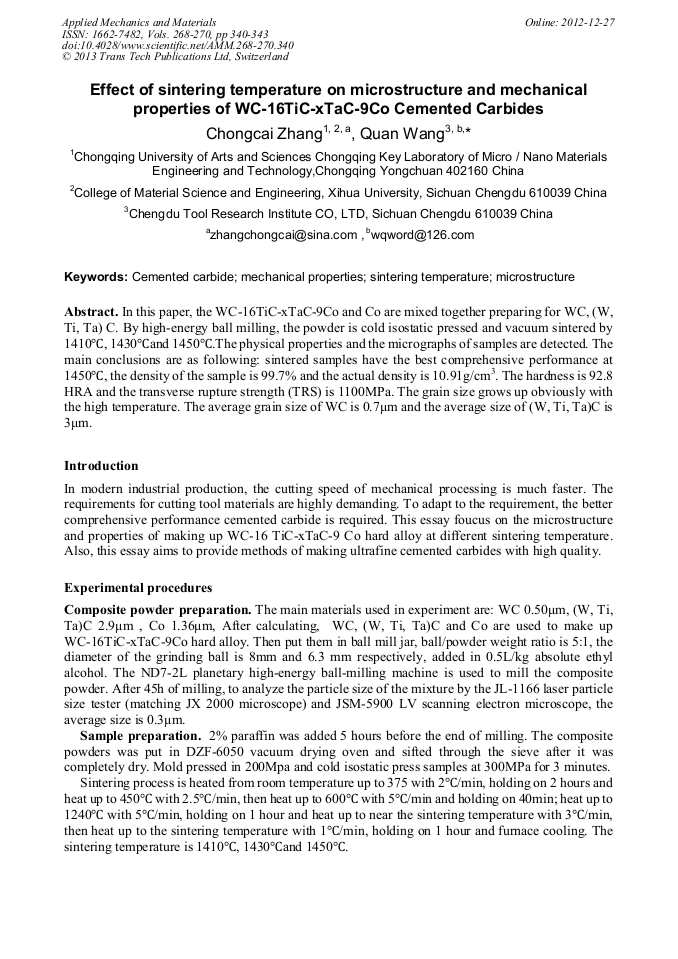

Effect of Sintering Temperature on Microstructure and Mechanical Properties of WC-16TiC-xTaC-9Co Cemented Carbides

Abstract:

In this paper, the WC-16TiC-xTaC-9Co and Co are mixed together preparing for WC, (W, Ti, Ta) C. By high-energy ball milling, the powder is cold isostatic pressed and vacuum sintered by 1410°C, 1430°Cand 1450°C.The physical properties and the micrographs of samples are detected. The main conclusions are as following: sintered samples have the best comprehensive performance at 1450°C, the density of the sample is 99.7% and the actual density is 10.91g/cm3. The hardness is 92.8 HRA and the transverse rupture strength (TRS) is 1100MPa. The grain size grows up obviously with the high temperature. The average grain size of WC is 0.7μm and the average size of (W, Ti, Ta)C is 3μm.

You might also be interested in these eBooks

Materials, Mechanical Engineering and Manufacture

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 268-270)

Pages:

340-343

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.268-270.340

Citation:

Cite this paper

Online since:

December 2012

Authors:

Chong Cai Zhang, Quan Wang

Keywords:

Cemented Carbide, Mechanical Property, Microstructure, Sintering Temperature

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Farid Akhtar, Islam S. Humail, S.J. Askari, et al. Effect of WC particle size on the microstructure, mechanical properties and fracture behavior of WC-(W, Ti, Ta)C-6wt%Co cemented carbides [J]. Int J Refract M Hard Mat, 2007, 25: 405-410.

DOI: 10.1016/j.ijrmhm.2006.11.005

Google Scholar

[2] Chongcai Zhang, Quan Wang, Qunqun Yuan and Long Wang. Effect of VC/Cr3C2 additions on microstructure and mechanical properties of WC-16TiC-xTaC-10Co Ultrafine Cemented Carbides [J]. Advanced Materials Research Vols. 476-478 (2012), pp.1214-1217.

DOI: 10.4028/www.scientific.net/amr.476-478.1214

Google Scholar

[3] Pagounis E,LindroosVK.Proecssing and properties of particulate reinforced steel matrix composties[J]. Materials Science and Engineering,1998, A246(2):221—234.

Google Scholar

[4] Chongcai Zhang, Qunqun Yuan, Quan Wang, Zhiyong Shengand Long Wang. Effect of TaC on W-Ti-Co Ultrafine Cemented Carbides [J]. Advanced Materials Research Vols. 306-307 (2011), pp.598-602.

DOI: 10.4028/www.scientific.net/amr.306-307.598

Google Scholar
