Realization of Target Position Changing On-The-Fly for Intelligent Motion Control Applications

Abstract:

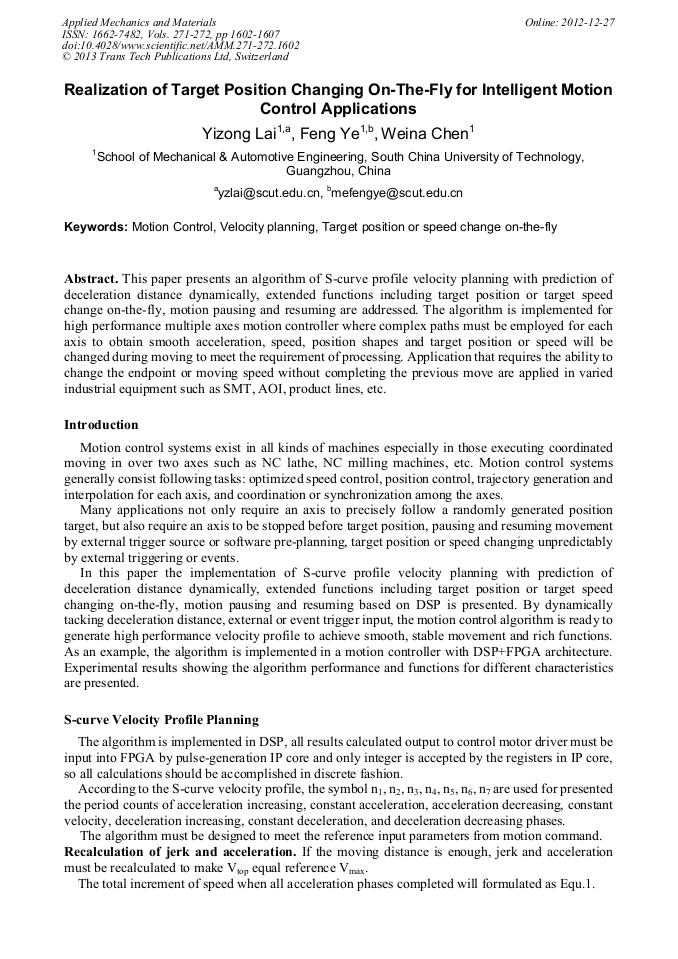

This paper presents an algorithm of S-curve profile velocity planning with prediction of deceleration distance dynamically, extended functions including target position or target speed change on-the-fly, motion pausing and resuming are addressed. The algorithm is implemented for high performance multiple axes motion controller where complex paths must be employed for each axis to obtain smooth acceleration, speed, position shapes and target position or speed will be changed during moving to meet the requirement of processing. Application that requires the ability to change the endpoint or moving speed without completing the previous move are applied in varied industrial equipment such as SMT, AOI, product lines, etc.

• Periodical: Applied Mechanics and Materials (Volumes 271-272)
• Pages: 1602-1607
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.271-272.1602
• Online since: December 2012
• Authors: Yi Zong Lai, Feng Ye, Wei Na Chen
• Keywords: Motion Control, Target Position or Speed Change on-the-Fly, Velocity Planning
