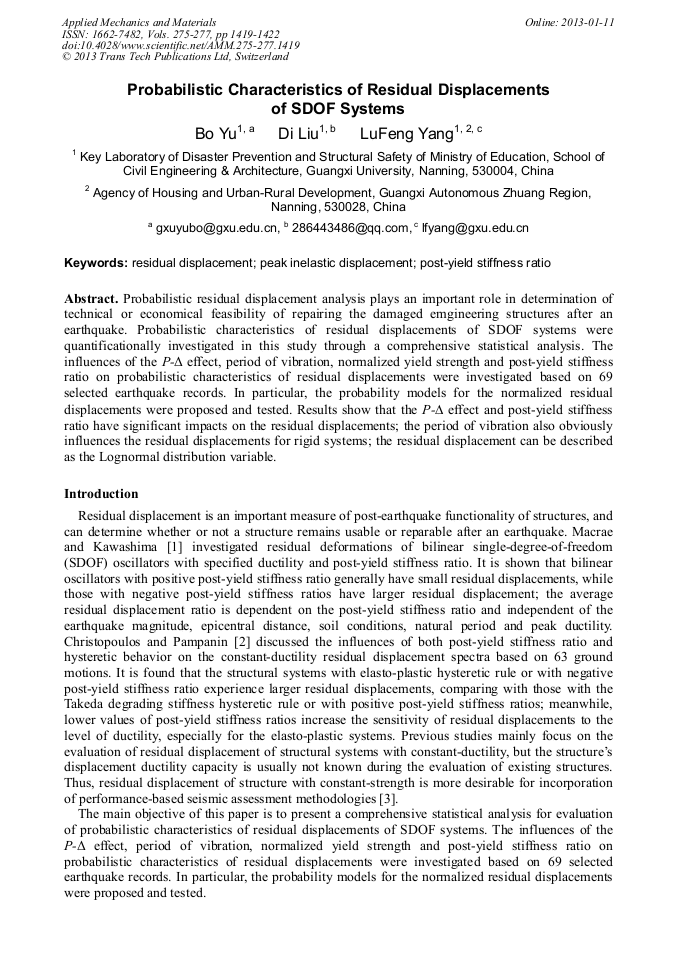

Probabilistic Characteristics of Residual Displacements of SDOF Systems

Abstract:

Probabilistic residual displacement analysis plays an important role in determination of technical or economical feasibility of repairing the damaged emgineering structures after an earthquake. Probabilistic characteristics of residual displacements of SDOF systems were quantificationally investigated in this study through a comprehensive statistical analysis. The influences of the P-Δ effect, period of vibration, normalized yield strength and post-yield stiffness ratio on probabilistic characteristics of residual displacements were investigated based on 69 selected earthquake records. In particular, the probability models for the normalized residual displacements were proposed and tested. Results show that the P-Δ effect and post-yield stiffness ratio have significant impacts on the residual displacements; the period of vibration also obviously influences the residual displacements for rigid systems; the residual displacement can be described as the Lognormal distribution variable.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 275-277)

Pages:

1419-1422

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.275-277.1419

Citation:

Cite this paper

Online since:

January 2013

Authors:

Bo Yu, Lu Feng Yang, Di Liu

Keywords:

Peak Inelastic Displacement, Post-Yield Stiffness Ratio, Residual Displacement

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] G. A. Macrae, K. Kawashima, Post-earthquake residual displacements of bilinear oscillators. Earthq. Eng. Struct. D. 26(7) (1997) 701-716.

DOI: 10.1002/(sici)1096-9845(199707)26:7<701::aid-eqe671>3.0.co;2-i

Google Scholar

[2] C. Christopoulos, S. Pampanin, Towards performance-based design of MDOF structures with explicit consideration of residual deformations. J. of Earthquake Technology. 41(1) (2004) 53-73.

Google Scholar

[3] J. Ruiz-García, and E. Miranda, Residual displacement ratios for assessment of existing structures. Earthq. Eng. Struct. D. 35(3) (2006) 315-336.

DOI: 10.1002/eqe.523

Google Scholar

[4] B. Yu, T. J. Liu, H. P. Hong, Influences of pinching and P-Δ effects on seismic ductility demand and damage index. J. Earthq. Eng. Eng. Vib. 31(4) (2011) 94-105.

Google Scholar

[5] G. A. MacRae, P-Δ effects on single-degree-of-freedom structures in earthquakes. Earthquake Spectra. 10 (1994) 539.

DOI: 10.1193/1.1585788

Google Scholar

[6] Y. K. Wen, Method for random vibration of hysteretic systems. J. Eng. Mech. Div. 102(2) (1976). 249-263.

DOI: 10.1061/jmcea3.0002106

Google Scholar

[7] L. F. Shampine, M. W. Reichelt, The matlab ode suite. J. Sci. Cmoput. 18(1) (1997) 1-22.

Google Scholar

[8] Pacific Earthquake Engineering Reasearch (PEER) Center. Next generation attenuation database. (2007) heep: /peer. berkeley. edu/nga/index. html.

Google Scholar

[9] H. P. Hong, K. Goda, Orientation-dependent ground-motion measure for seismic-hazard assessment. B. Seismol. Soc. Am. 97(5) (2007) 1525-1538.

DOI: 10.1785/0120060194

Google Scholar
