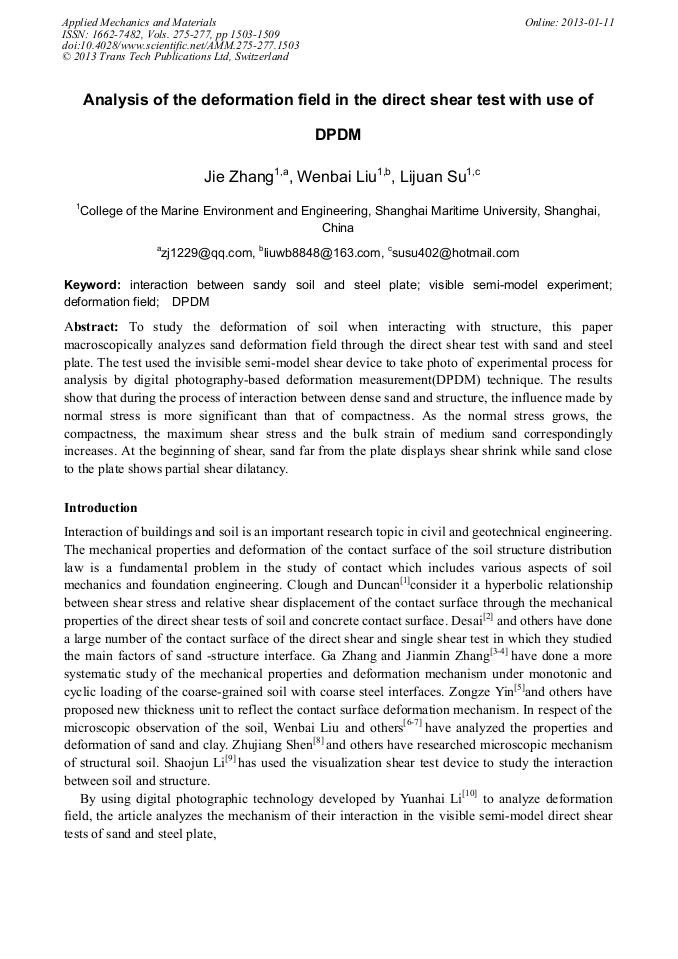

Analysis of the Deformation Field in the Direct Shear Test with Use of DPDM

Abstract:

To study the deformation of soil when interacting with structure, this paper macroscopically analyzes sand deformation field through the direct shear test with sand and steel plate. The test used the invisible semi-model shear device to take photo of experimental process for analysis by digital photography-based deformation measurement(DPDM) technique. The results show that during the process of interaction between dense sand and structure, the influence made by normal stress is more significant than that of compactness. As the normal stress grows, the compactness, the maximum shear stress and the bulk strain of medium sand correspondingly increases. At the beginning of shear, sand far from the plate displays shear shrink while sand close to the plate shows partial shear dilatancy.

• Periodical: Applied Mechanics and Materials (Volumes 275-277)
• Pages: 1503-1509
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.275-277.1503
• Online since: January 2013
• Authors: Jie Zhang, Wen Bai Liu, Li Juan Su
• Keywords: Deformation Field, DPDM, Interaction between Sandy Soil and Steel Plate, Visible Semi-Model Experiment

References

[1] Clough G W, Duncan J M. Finite element analysis of retaining wall behavior[J]. Journal of the Soil Mechanics and Foundations Division, American Society of Civil Engineering, 1971, 97 (SM12): 1 657－1 672.

DOI: 10.1061/jsfeaq.0001713

[2] Desai C S, Drumm E C, Zaman M M. Cyclic testing and modeling of interfaces[J]. Journal of Geotechnical Engineering, American Society of Civil Engineering, 1985, 111(6): 793－815.

DOI: 10.1061/(asce)0733-9410(1985)111:6(793)

[3] Ga Zhang, Jianmin Zhang. Experimental study of the monotonous mechanical properties of interface between soil and the contact surface of structure[J]. Journal of Geotechnical Engineering, 2004, 26 (1): 21－25. （In Chinese）.

[4] Ga Zhang, Jianmin Zhang. Experimental study of deformation characteristics of the contact surface between coarse grained soil soil and structure under cyclic loading[J]. Journal of Geotechnical Engineering. 2004, 26(2): 254－258. （In Chinese）.

[5] Zongze Yin, Hong Zhu, Guohua, Xu. Mathematical modeling of deformation of the contact surface between soil and material of structure[J]. Journal of Geotechnical Engineering, 1994, 16 (3) : 14O22.

[6] Wenbai Liu, Liang Cao, Yibing Deng. Deformation field analysis of cohesive soils in side confined compression test based on the the DPDM technology[J]. Water Transport Engineering, 2009(10): 36-40 （In Chinese）.

[7] Yexun Li, Wenbai Liu, Hui Zhang. Study of micromechanical properties of sand soil based on the direct shear test[J]. China Water Transport, 2009, 9(12): 185-186．（In Chinese）.

[8] Kaisheng He, Zhujiang Shen. Microscopic deformation and mechanism of structural soil. Journal of Hohai University (natural sciences)[J]2003 （In Chinese）.

[9] Junshao Li, Fanzhen Meng, Jing Chen. Development and application of visual shear test device for soil-structure interaction[J]. Journal of Geotechnical Engineering, 2012, 31(1): 180 -188. （In Chinese）.

[10] Yuanhai Li, Hongwen Jing, Qingyou Zeng. Development and application of digital photographic measurement software system on geotechnical engineering[J]. Chinese Journal of Rock Mechanics and Engineering, 2006, 25(z2) （In Chinese）.
