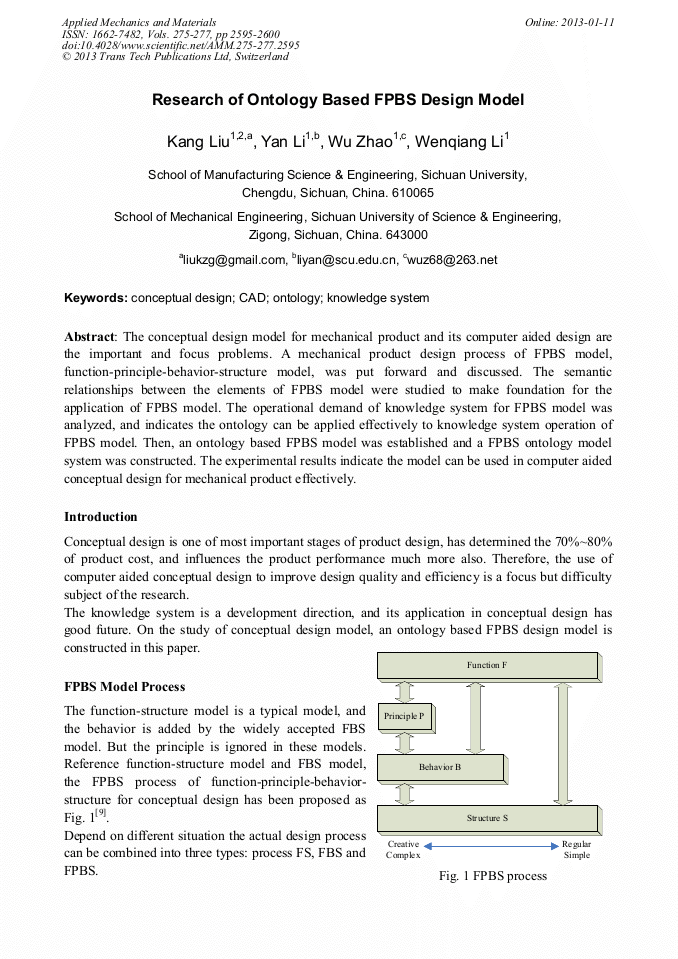

Research of Ontology Based FPBS Design Model

Abstract:

The conceptual design model for mechanical product and its computer aided design are the important and focus problems. A mechanical product design process of FPBS model, function-principle-behavior-structure model, was put forward and discussed. The semantic relationships between the elements of FPBS model were studied to make foundation for the application of FPBS model. The operational demand of knowledge system for FPBS model was analyzed, and indicates the ontology can be applied effectively to knowledge system operation of FPBS model. Then, an ontology based FPBS model was established and a FPBS ontology model system was constructed. The experimental results indicate the model can be used in computer aided conceptual design for mechanical product effectively.

• Periodical: Applied Mechanics and Materials (Volumes 275-277)
• Pages: 2595-2600
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.275-277.2595
• Online since: January 2013
• Authors: Kang Liu, Yan Li, Wu Zhao, Wen Qiang Li
• Keywords: CAD, Conceptual Design, Knowledge System, Ontology

References

[1] G. Pahl, W. Beitz, J. Feldhusen, K. h. Grote. Engineering Design[M]. London: Springer, (2007).

[2] Stone R B, Wood K L. Development of a functional basis for design[J]. Journal of Mechanical Design, 2000, 122: 359-370.

[3] Yonggang LEI, Yinhong PENG, Xueshu RUAN. Conceptual Design for Mechanical Production: Summarize and Analysis[J]. Mechanical Science and Technology, 2000, 19(1): 18-21.

[4] Huilin SHU, Jihong LIU, Yifang ZHONG. Summarize for Computer Aided Conceptual Design of Mechanical Product[J]. Journal of Computer Aided Design & Computer Graphics. 2000, 12(12): 948-954.

DOI: 10.1016/0010-4485(80)90470-4

[5] Liwen GUAN, Hongzhong HUANG, Zhengjia ZHAO, Zhixing WANG. Conceptual Design for Mechanical Product: Summarize and Prospect[J]. Mechanical Design, 2001(8): 5-9.

[6] Riichiro Mizoguchi. Ontology-based systematization of functional knowledge[J]. Journal of Engineering Design, 2004, 15 (4) : pp.327-351.

DOI: 10.1080/09544820410001697163

[7] Yoshinobu Kitamura and Riichiro Mizoguchi. Ontology-based systematization of functional knowledge[J]. Journal of Engineering Design, 2004, 15(4): 327-351.

DOI: 10.1080/09544820410001697163

[8] Kang LIU, Ling YU. Ontology and the Application in Mechanical Design[J]. Journal of Sichuan University of Science & Engineering (Natrual Science Edition), 2010, 23(2): 219-223.

[9] Kang LIU. Research of Ontological Functional Design for Mechanical Products. Sichuan University, Chengdu, China, 2010. In Chinese.
