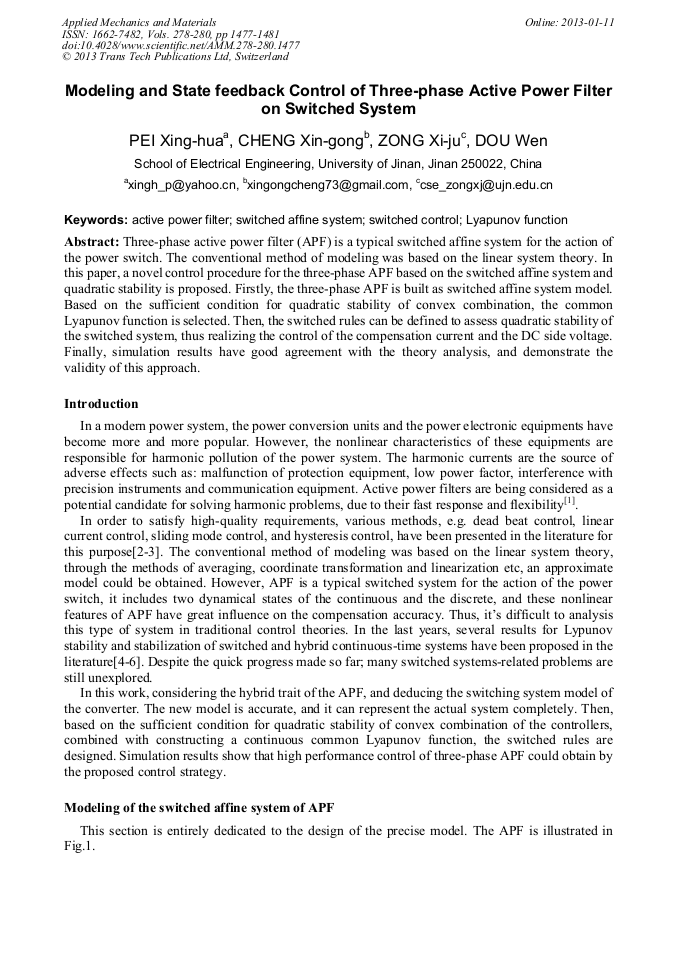

Modeling and State Feedback Control of Three-Phase Active Power Filter on Switched System

Abstract:

Three-phase active power filter (APF) is a typical switched affine system for the action of the power switch. The conventional method of modeling was based on the linear system theory. In this paper, a novel control procedure for the three-phase APF based on the switched affine system and quadratic stability is proposed. Firstly, the three-phase APF is built as switched affine system model. Based on the sufficient condition for quadratic stability of convex combination, the common Lyapunov function is selected. Then, the switched rules can be defined to assess quadratic stability of the switched system, thus realizing the control of the compensation current and the DC side voltage. Finally, simulation results have good agreement with the theory analysis, and demonstrate the validity of this approach.

• Periodical: Applied Mechanics and Materials (Volumes 278-280)
• Pages: 1477-1481
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.278-280.1477
• Online since: January 2013
• Authors: Xing Hua Pei, Xin Gong Cheng, Xi Ju Zong, Wen Dou
• Keywords: Active Power Filter (APF), Lyapunov Function, Switched Affine System, Switched Control

References

[1] Akagi H, Fujita H, Wada K: A Shunt Active Filter Based on Voltage Detection for Harmonic termination of a radial power distribution line. IEEE Trans on Industry Applications, Vol. 35, no. 3 (1999), pp.638-645.

DOI: 10.1109/28.767015

[2] R.E. shatshat: Artificial Intelligent Controller for Current Source Converter-based Modular Active Power Filters. Power deliv. IEEE Trans, Vol. 19, no. 3 (2004), pp.1314-1320.

DOI: 10.1109/tpwrd.2004.829148

[3] A.N. Jog, N.G. Apt: An Adaptive Hysteresis Band Current Controlled Shunt Active Power Filter. Compatibility in Power Electronics (CPE2007), pp.2933-2938.

DOI: 10.1109/cpe.2007.4296515

[4] Liberzon D, Morse A: Basic Problems in Stability and Design of Switched System. IEEE Control systems, Vol. 19, no. 5 (1999), pp.59-70.

[5] Kumpati S. Narendra, Jeyendran Balakrishnan: A Common Lyapunov Function for Stable LTI Systems with Commuting A-Matrices. IEEE Transaction on Automatic Control, Vol. 39, no. 12(1994), pp.2469-2471.

DOI: 10.1109/9.362846

[6] Shorten.R. N, Narendra.K. S, Mason. O: A Result on Common Quadratic Lyapunov Functions. IEEE Transactions on Automatic Control, Vol. 48, no. 1(2003), pp.110-113.

DOI: 10.1109/tac.2002.806661

[7] Geromel J C, Colaneri P: Stability and Stabilization of Continuous-time Switched Linear Systems. SIAM J. Control Optim, Vol. 45, no. 5(2006), p.1915-(1930).

DOI: 10.1137/050646366
