A Tool for Modeling and Analysis of BTF Toolholder-Spindle System

Abstract:

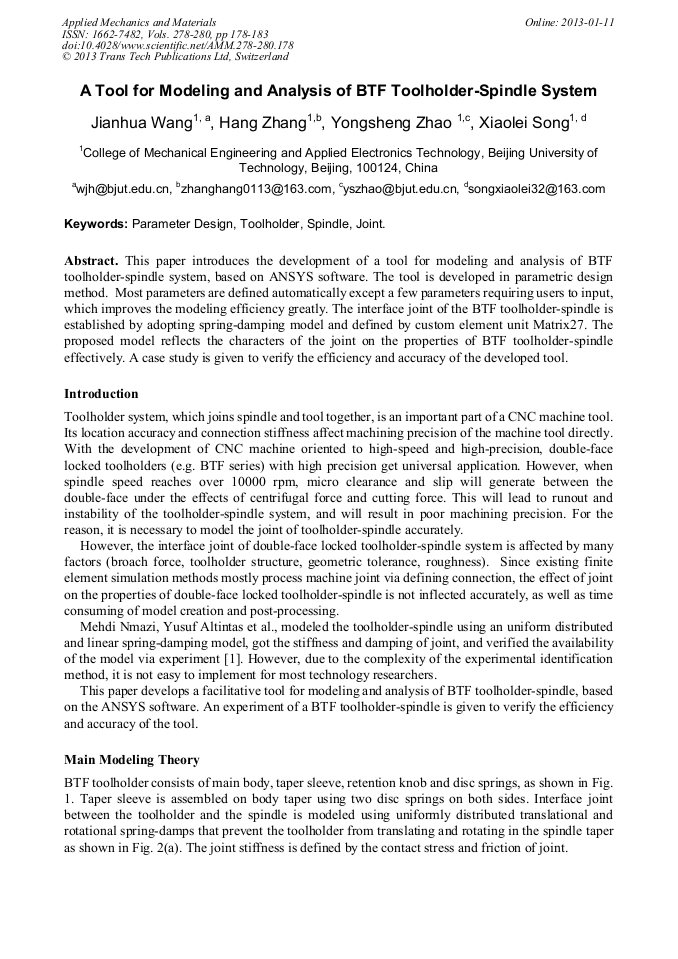

This paper introduces the development of a tool for modeling and analysis of BTF toolholder-spindle system, based on ANSYS software. The tool is developed in parametric design method. Most parameters are defined automatically except a few parameters requiring users to input, which improves the modeling efficiency greatly. The interface joint of the BTF toolholder-spindle is established by adopting spring-damping model and defined by custom element unit Matrix27. The proposed model reflects the characters of the joint on the properties of BTF toolholder-spindle effectively. A case study is given to verify the efficiency and accuracy of the developed tool.
