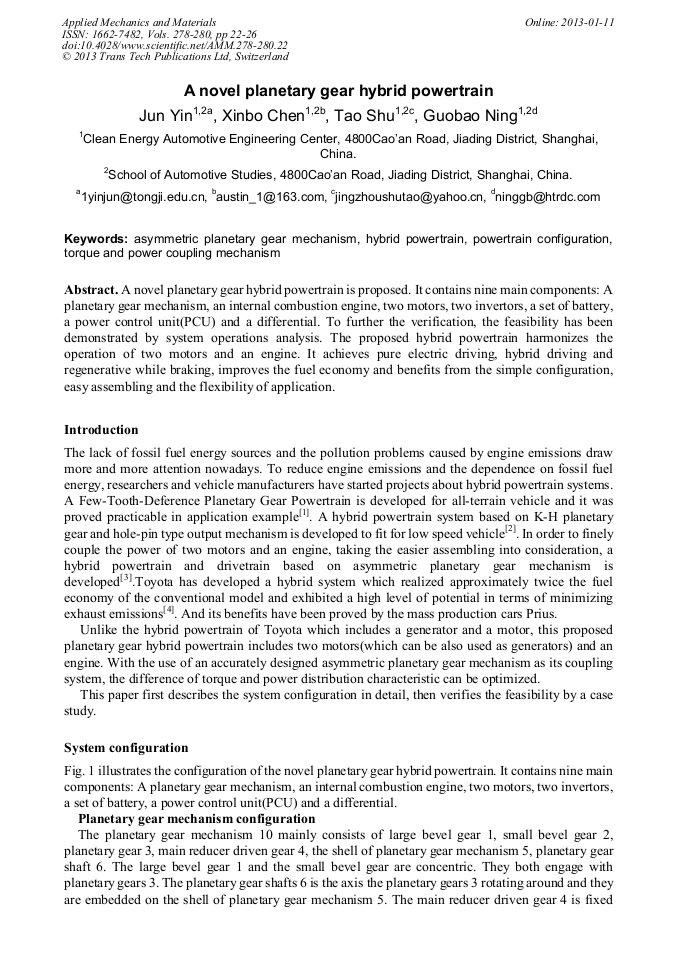

A Novel Planetary Gear Hybrid Powertrain

Abstract:

A novel planetary gear hybrid powertrain is proposed. It contains mainly nine components: A planetary gear mechanism, an internal combustion engine, two motors, two invertors, a set of battery, a power control unit(PCU) and a differential. To further the verification, the feasibility has been demonstrated by system operations analysis. The proposed hybrid powertrain harmonizes the operation of two motors and an engine. It achieves pure electric driving, hybrid driving and regenerative while braking, improves the fuel economy and benefits from the simple configuration, easy assembling and the flexibility of application.
