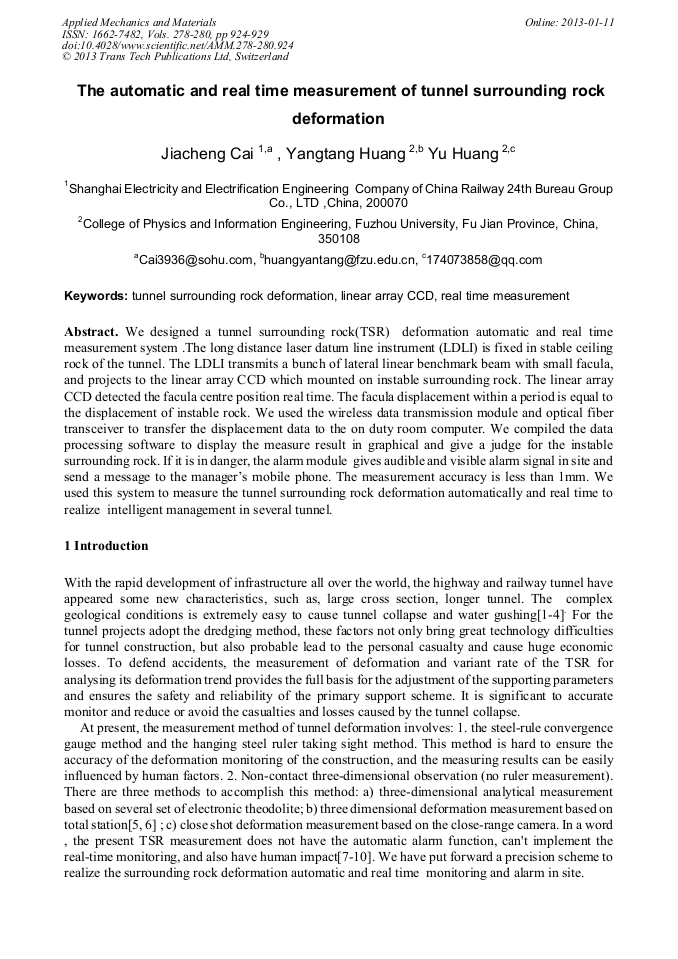

The Automatic and Real Time Measurement of Tunnel Surrounding Rock Deformation

Abstract:

We designed a tunnel surrounding rock(TSR) deformation automatic and real time measurement system .The long distance laser datum line instrument (LDLI) is fixed in stable ceiling rock of the tunnel. The LDLI transmits a bunch of lateral linear benchmark beam with small facula, and projects to the linear array CCD which mounted on instable surrounding rock. The linear array CCD detected the facula centre position real time. The facula displacement within a period is equal to the displacement of instable rock. We used the wireless data transmission module and optical fiber transceiver to transfer the displacement data to the on duty room computer. We compiled the data processing software to display the measure result in graphical and give a judge for the instable surrounding rock. If it is in danger, the alarm module gives audible and visible alarm signal in site and send a message to the manager’s mobile phone. The measurement accuracy is less than 1mm. We used this system to measure the tunnel surrounding rock deformation automatically and real time to realize intelligent management in several tunnel

• Periodical: Applied Mechanics and Materials (Volumes 278-280)
• Pages: 924-929
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.278-280.924
• Online since: January 2013
• Authors: Jia Cheng Cai, Yan Tang Huang, Yu Huang
• Keywords: Linear Array CCD, Real Time Measurement, Tunnel Surrounding Rock Deformation

References

[1] Hu J H. CONSTRUCTION TECHNOLOGY. Vol. 41, No. 356( 2012) , p.95 (in Chinese).

[2] Qin W M , Li Q, Ren W Z, Liang C and Yang Y. Chinese Journal of Rock Mechanics and Engineering. Vol. 29, No. 3(2010), p.549(in Chinese).

[3] Deng C, Liu C L, Lu J and Yand X F. Research & Explore. Vol. 29, No. 28( 2011), p.81 (in Chinese).

[4] Yu Y Q , Xiong F B and Li H M. CONSTRUCTION TECHNOLOGY. Vol. 39, No. 1(2010), p.36 (in Chinese).

[5] Luo J W , Chen L W , Wang Y H and Xiong F. Soil Eng. And Fundation. Vol. 23, No. 6(2009), p.82 (in Chinese).

[6] Chen H X. Railway Investigation and Surveying, Vol. 3(2010), p.9 (in Chinese).

[7] Mo Y C and Zhou X J. Chinese Journal of Rock Mechanics and Engineering, Vol. 27 (Supp. 2)( 2008), p.3816 (in Chinese).

[8] Chen Y J, Liu C W, Xu J and Fang Y Q. Chinese Journal of Geotechnical Engineering, Vol. 30, No. 7(2008), p.1084 (in Chinese).

[9] Dong W D, Gao B and Shen Y S. Modern Tunnelling Technology Vol. 43, No. 6(2006), p.40 (in Chinese).

[10] Xu L S. Chinese Journal of Rock Mechanics and Engineering Vol. 22, No. 2 (2000), p.1. (in Chinese).

[11] Yantang Huang. Applied Mechanics and Materials, Vol. 209-211 (2012), pp.1500-1504.
