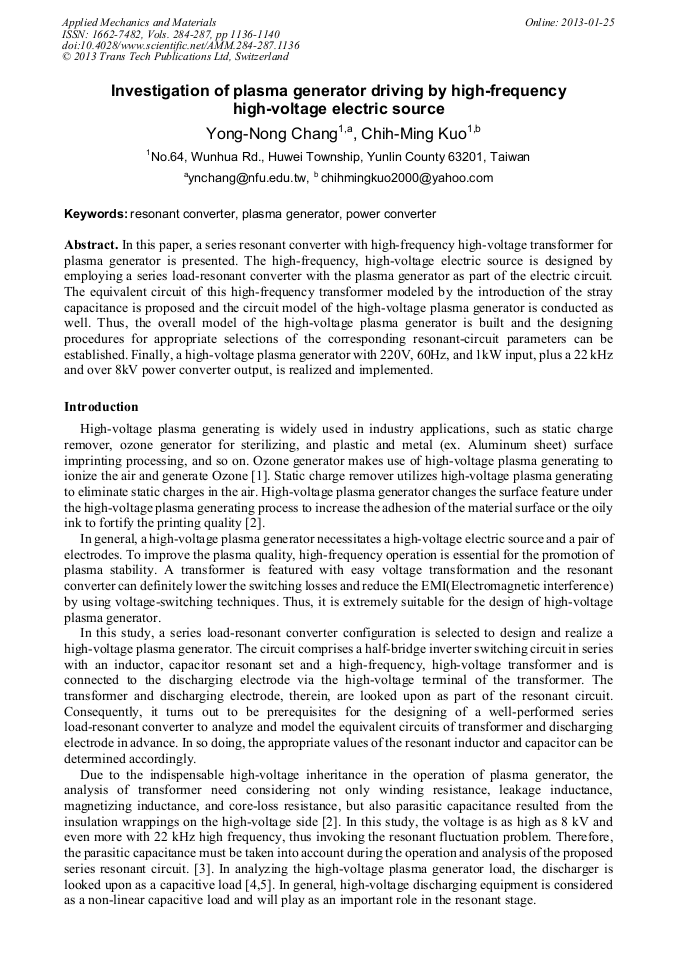

Investigation of Plasma Generator Driving by High-Frequency High-Voltage Electric Source

Abstract:

In this paper, a series resonant converter with high-frequency high-voltage transformer for plasma generator is presented. The high-frequency, high-voltage electric source is designed by employing a series load-resonant converter with the plasma generator as part of the electric circuit. The equivalent circuit of this high-frequency transformer modeled by the introduction of the stray capacitance is proposed and the circuit model of the high-voltage plasma generator is conducted as well. Thus, the overall model of the high-voltage plasma generator is built and the designing procedures for appropriate selections of the corresponding resonant-circuit parameters can be established. Finally, a high-voltage plasma generator with 220V, 60Hz, and 1kW input, plus a 22 kHz and over 8kV power converter output, is realized and implemented.

• Periodical: Applied Mechanics and Materials (Volumes 284-287)
• Pages: 1136-1140
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.284-287.1136
• Online since: January 2013
• Authors: Yong Nong Chang, Chih Ming Kuo
• Keywords: Plasma Generator, Power Converter, Resonant Converter

References

[1] J. Chen and P. Wang.: IEEE Trans. on Plasma Sci. Vol. 33 (2005), p.808.

[2] M. Xingkui and C. Wei.: Chinese Society of E.E. Vol 26 (2006), p.167.

[3] H. Y. Lu, J. G. Zhu and S. Y. R. Hui.: IEEE Trans. on Power Electronics. Vol. 18 (2003), p.1105.

[4] A. Maglaras and F. V. Topalis.: IEEE Trans. on Dielectrics and Electrical Insulation. Vol. 16 (2009), p.32.

[5] H. Akagi and A. Nabae, A Voltage-Source Inverter Using IGBT's for a 50kHz 10kV Corona Surface Treaters, IEEE Industry Applications Society Annul Meeting, CA, USA, October 1-5 (1989). p.1164.

DOI: 10.1109/ias.1989.96789

[6] Y. C. Hsieh, T. C. Hsueh and H. C. Yen. J.: IEEE Trans. on Power Electronics. Vol 24 (2009), p.973.
