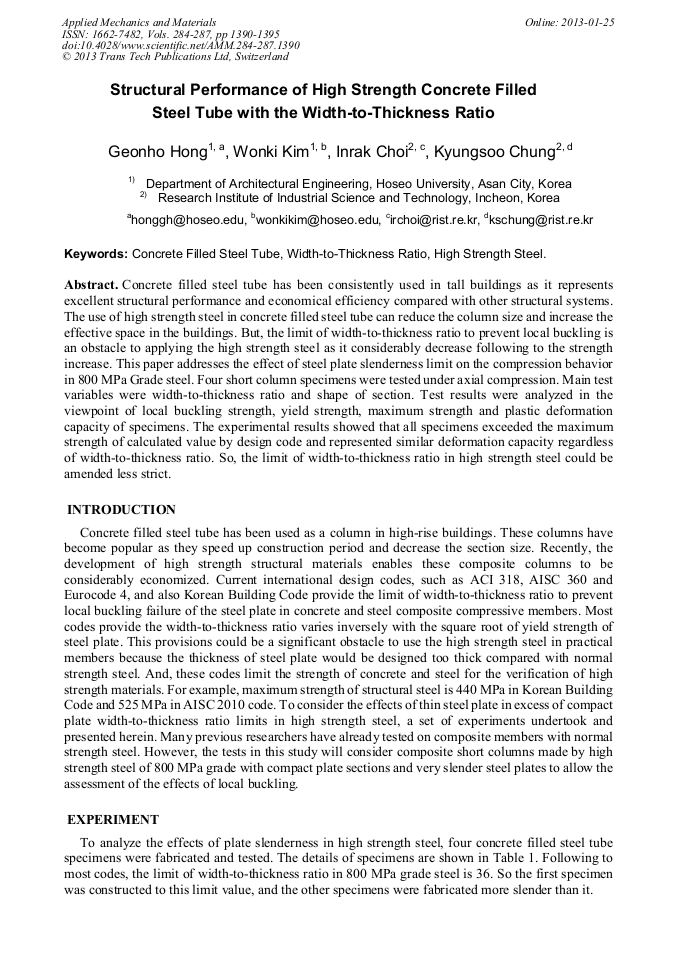

Structural Performance of High Strength Concrete Filled Steel Tube with the Width-to-Thickness Ratio

Abstract:

Concrete filled steel tube has been consistently used in tall buildings as it represents excellent structural performance and economical efficiency compared with other structural systems. The use of high strength steel in concrete filled steel tube can reduce the column size and increase the effective space in the buildings. But, the limit of width-to-thickness ratio to prevent local buckling is an obstacle to applying the high strength steel as it considerably decrease following to the strength increase. This paper addresses the effect of steel plate slenderness limit on the compression behavior in 800 MPa Grade steel. Four short column specimens were tested under axial compression. Main test variables were width-to-thickness ratio and shape of section. Test results were analyzed in the viewpoint of local buckling strength, yield strength, maximum strength and plastic deformation capacity of specimens. The experimental results showed that all specimens exceeded the maximum strength of calculated value by design code and represented similar deformation capacity regardless of width-to-thickness ratio. So, the limit of width-to-thickness ratio in high strength steel could be amended less strict.

• Periodical: Applied Mechanics and Materials (Volumes 284-287)
• Pages: 1390-1395
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.284-287.1390
• Online since: January 2013
• Authors: Geon Ho Hong, Won Ki Kim, In Rak Choi, Kyung Soo Chung
• Keywords: Concrete-Filled Steel Tube (CFST), High Strength Steel (HSS), Width-to-Thickness Ratio

References

[1] B. Uy, M. A. Bradford, Elastic local buckling of steel plates in composite steel-concrete members, Engineering Structures, Vol. 18, No. 3, 1996, pp.193-200.

DOI: 10.1016/0141-0296(95)00143-3

[2] Brian Uy, Strength of concrete filled steel box columns incorporating local buckling, Journal of Structural Engineering, March 2000, pp.341-352.

DOI: 10.1061/(asce)0733-9445(2000)126:3(341)

[3] H. S. Han et al., Compression behavior of steel plate-concrete structures with the width-to-thickness ratio, Journal of Korean Society of Steel Construction, Vol. 23, No. 2, 2011, pp.229-236.

[4] S. H. Kim et al., Design equation for square CFT columns with large width-to-thickness ratio, Journal of Korean Society of Steel Construction, Vol. 21, No. 5, 2009, pp.537-544.

[5] AISC, Specification for structural steel buildings, ANSI/AISC 360-10, 2010, pp.81-96.

[6] AIK, Korean Building Code for Structural Design, Architectural Institute of Korea (2009).
