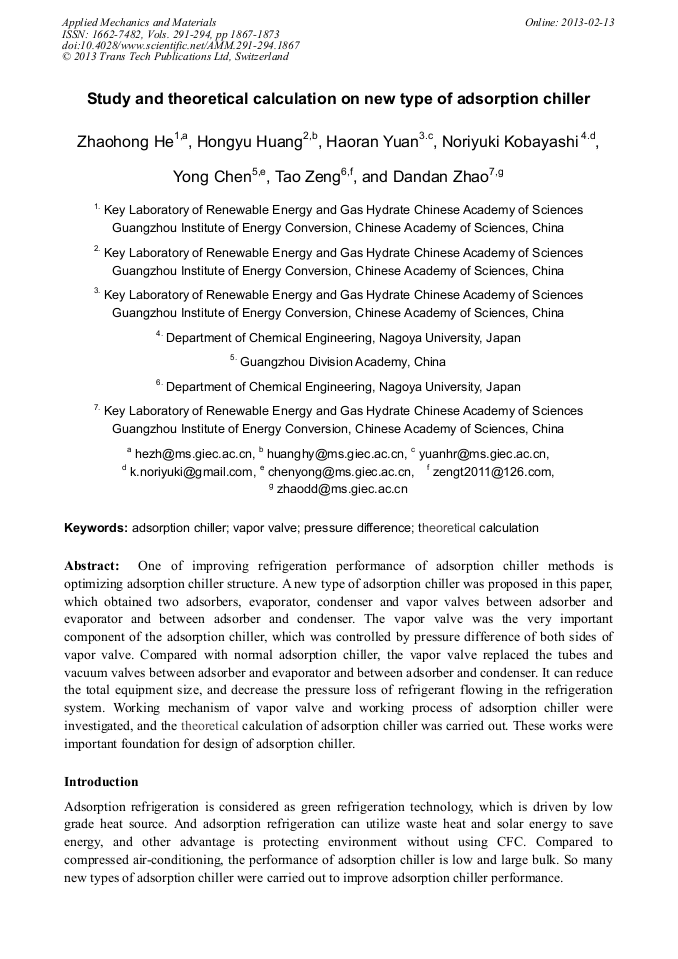

Study and Theoretical Calculation on New Type of Adsorption Chiller

Abstract:

One of improving refrigeration performance of adsorption chiller methods is optimizing adsorption chiller structure. A new type of adsorption chiller was proposed in this paper, which obtained two adsorbers, evaporator, condenser and vapor valves between adsorber and evaporator and between adsorber and condenser. The vapor valve was the very important component of the adsorption chiller, which was controlled by pressure difference of both sides of vapor valve. Compared with normal adsorption chiller, the vapor valve replaced the tubes and vacuum valves between adsorber and evaporator and between adsorber and condenser. It can reduce the total equipment size, and decrease the pressure loss of refrigerant flowing in the refrigeration system. Working mechanism of vapor valve and working process of adsorption chiller were investigated, and the theoretical calculation of adsorption chiller was carried out. These works were important foundation for design of adsorption chiller.

• Periodical: Applied Mechanics and Materials (Volumes 291-294)
• Pages: 1867-1873
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.291-294.1867
• Online since: February 2013
• Authors: Zhao Hong He, Hong Yu Huang, Hao Ran Yuan, Noriyuki Kobayashi, Yong Chen, Tao Zeng, Dan Dan Zhao
• Keywords: Adsorption Chiller, Pressure Difference, Theoretical Calculation, Vapor Valve

References

[1] C.J. Chen, R.Z. Wang, Z.Z. Xia et al. Journal of Chemical Industry and Engineering , Vol. 59(2008), p.43 (In Chinese).

[2] K.S. Chang, M.T. Chen, T. W. Chung. Applied Thermal Engineering, Vol. 25(2005), p.2330.

[3] G, Restuccia , A. Freni, F. Russo, et al. Applied Thermal Engineering , Vol. 25(2005), p.1419.

[4] S.D. Waszkiewicz, M.J. Tierney, H. Saidani Scott. Applied Thermal Engineering, Vol. 29(2009), p.2222.

[5] T. Melkon , E.S. Ayse. Microporous and Mesoporous Materials, Vol. 34(2000), p.23.

[6] S. Lena, T. Melkon ,S. Ferdinand, et al. Applied Thermal Engineering, Vol. 30(2010), p.1409.

[7] X.L. Wang, H.T. Chua. International Journal of Heat and Mass Transfer, Vol. 50(2007), p.433.

[8] B.B. Saha, S. Koyama, T. Kashiwagi, et al. International Journal of Refrigeration, Vol. 26(2003), p.749.

[9] B.B. Saha, K.C.A. Alam, A. Akisawa, et al. In: Proceeding of ASME Advanced Energy System Division[C], Orlando(2000).

[10] B.B. Saha, E.C. Boelman, T. Kashiwagi. Energy, Vol. 20(1995), p.983.

[11] A. Akira, K.C.A. Alam, H. Yoshinori, et al. International Journal of Refrigeration, Vol. 27(2004), p.225.

[12] C.J. Chen, R.Z. Wang, Z.Z. Xia , et al. Applied Energy, Vol. 87(2010), p.2673.

[13] D.C. Wang, Z.Z. Xia, J.Y. Wu, et al. Int. J. Refrig, Vol. 28(2005), p.1073.
