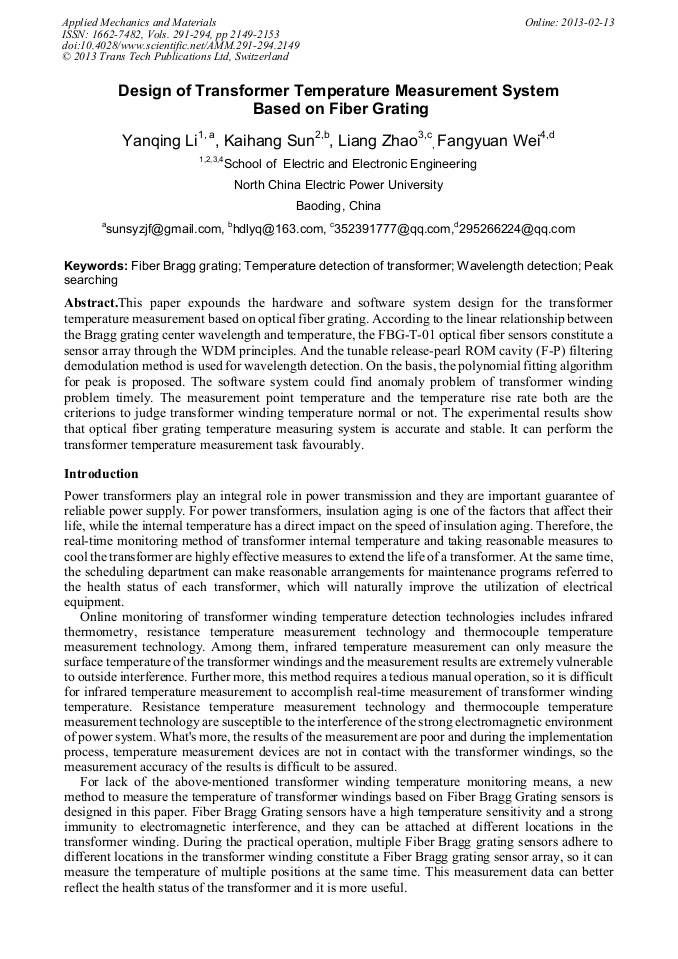

Design of Transformer Temperature Measurement System Based on Fiber Grating

Abstract:

This paper expounds the hardware and software system design for the transformer temperature measurement based on optical fiber grating. According to the linear relationship between the Bragg grating center wavelength and temperature, the FBG-T-01 optical fiber sensors constitute a sensor array through the WDM principles. And the tunable release-pearl ROM cavity (F-P) filtering demodulation method is used for wavelength detection. On the basis, the polynomial fitting algorithm for peak is proposed. The software system could find anomaly problem of transformer winding problem timely. The measurement point temperature and the temperature rise rate both are the criterions to judging transformer winding temperature normal or not. The experimental results show that optical fiber grating temperature measuring system is accurate and stable. It can perform the transformer temperature measurement task favourably.

• Periodical: Applied Mechanics and Materials (Volumes 291-294)
• Pages: 2149-2153
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.291-294.2149
• Online since: February 2013
• Authors: Yan Qing Li, Kai Hang Sun, Liang Zhao, Fang Yuan Wei
• Keywords: Fiber Bragg Grating (FBG), Peak Searching, Temperature Detection of Transformer, Wavelength Detection

References

[1] Jianqing Liao. Instrument Technique and Sensor Vol. 2 (2010): 98-100, in Chinese.

[2] Hongchun Wang. Shandong Technology Vol. 21 (2008): 58-60, in Chinese.

[3] Xupeng You, Guangxue Yang. Electronic Science and Technology Vol. 12(2006): 8-10, in Chinese.

[4] Fanchao Zeng, Yubin Wei, Guoan Kuang, et al. Transactions of China Electrotechnical Society Vol. 7 (2009): 12-13, in Chinese.

[5] Jing Li, Yuehua Wang, Huimi Zong, et al. Shijiazhuang Railway Vocational and Technical College Vol. 8 (2009): 80-83, in Chinese.

[6] Qiufeng Shang, Binghua Lin. Electrical Measurement and Instrumentation Vol. 47 (2010): 1-4, in Chinese.
