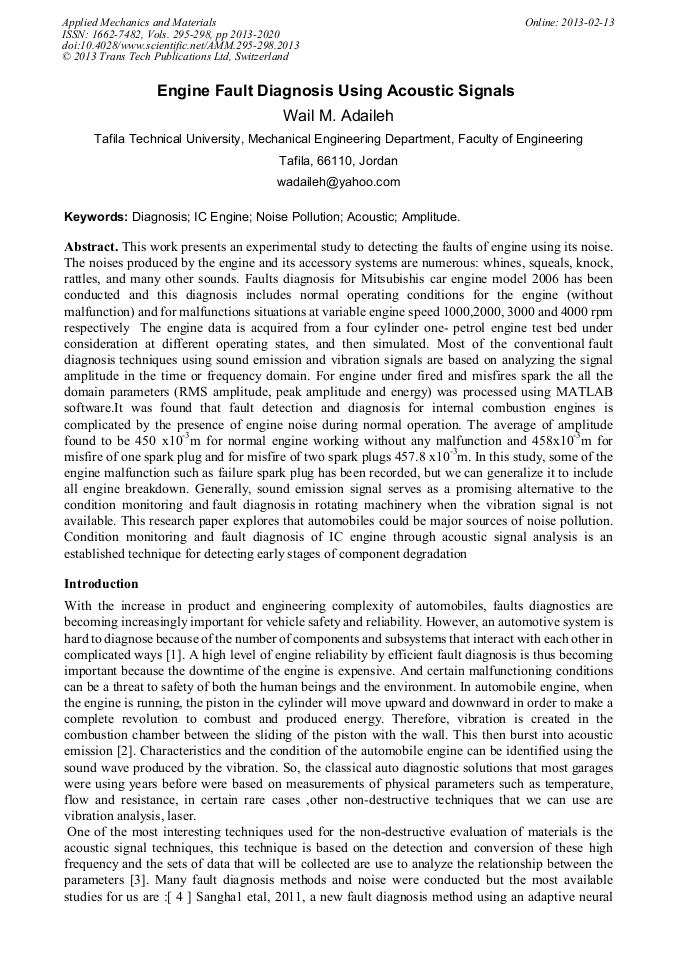

Engine Fault Diagnosis Using Acoustic Signals

Abstract:

This work presents an experimental study to detecting the faults of engine using its noise. The noises produced by the engine and its accessory systems are numerous: whines, squeals, knock, rattles, and many other sounds. Faults diagnosis for Mitsubishis car engine model 2006 has been conducted and this diagnosis includes normal operating conditions for the engine (without malfunction) and for malfunctions situations at variable engine speed 1000,2000, 3000 and 4000 rpm respectively The engine data is acquired from a four cylinder one- petrol engine test bed under consideration at different operating states, and then simulated. Most of the conventional fault diagnosis techniques using sound emission and vibration signals are based on analyzing the signal amplitude in the time or frequency domain. For engine under fired and misfires spark the all the domain parameters (RMS amplitude, peak amplitude and energy) was processed using MATLAB software.It was found that fault detection and diagnosis for internal combustion engines is complicated by the presence of engine noise during normal operation. The average of amplitude found to be 450 x10-3m for normal engine working without any malfunction and 458x10-3m for misfire of one spark plug and for misfire of two spark plugs 457.8 x10-3m. In this study, some of the engine malfunction such as failure spark plug has been recorded, but we can generalize it to include all engine breakdown. Generally, sound emission signal serves as a promising alternative to the condition monitoring and fault diagnosis in rotating machinery when the vibration signal is not available. This research paper explores that automobiles could be major sources of noise pollution. Condition monitoring and fault diagnosis of IC engine through acoustic signal analysis is an established technique for detecting early stages of component degradation.

• Periodical: Applied Mechanics and Materials (Volumes 295-298)
• Pages: 2013-2020
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.295-298.2013
• Online since: February 2013
• Authors: Wail M. Adaileh
• Keywords: Acoustic, Amplitude, Diagnosis, IC Engine, Noise Pollution

References

[1] P. Rasmussen, S. Gade: Tire Noise Measurement on a moving vehicle. Bruel and Kajer, Denmark. (2003).

[2] N. Singh , S. Davar: Noise Pollution- Sources, Effects and Control , J. Hum. Ecol. 16(3): 181-187 (2004).

[3] International Standards Organization 362-1982(E): Acoustics –Measurement of noise emitted by accelerating road vehicles – Engineering method.

DOI: 10.3403/01607402u

[4] M. S. Sangha1, D. L. Yu and J. B. Gomm: Sensor fault diagnosis for automotive engines with real data evaluation, International Journal of Engineering, Science and Technology Vol. 3, No. 8, 2011, pp.13-25.

DOI: 10.4314/ijest.v3i8.2

[5] J. Boskovic,R. Mehra: On-line failure detection and identification (fdi) and adaptive reconfigurable control (arc) in aerospace applications. In Proceedings of the American control conference, Arlington, VA. (2006).

DOI: 10.1109/acc.2001.946269

[6] J. Chen, H. Zhang : Robust detection of faulty actuators via unknown input observers. International Journal of Systems Science, 22(10), 1829–1839. (1991).

DOI: 10.1080/00207729108910753

[7] A. Duyar, W. Merrill: Fault diagnosis for the space shuttle main engine. Journal of Guidance, Control and Dynamics, 15(2), 384–389. (1992).

DOI: 10.2514/3.20847

[8] P.M. Frank Fault diagnosis in dynamic systems using analytical and knowledge-based redundancy—a survey and some new results. Automatica, 26, 459–474. (1990).

DOI: 10.1016/0005-1098(90)90018-d

[9] M. Hou, P. Muller : Fault detection and isolation observers. International Journal of Control, 60(5), 827–846. (1994).

[10] Y. Maki, K. Loparo : A neural network approach to fault detection and diagnosis in industrial processes. IEEE Transactions on Control Systems Technology, 5(6), 529–541. (1997).

DOI: 10.1109/87.641399

[11] B. Otman Y. Xiaohong: Engine fault diagnosis based on multi-sensor information fusion using Dempster–Shafer evidence theory,  Information Fusion, 8, 4, 379–386 ( 2007).

DOI: 10.1016/j.inffus.2005.07.003

[12] D. Yixin ‏, Kevin, M. Passino : Fault diagnosis for a turbine engine, Control Engineering Practice. 121, 1151-1165. (2004).

DOI: 10.1016/j.conengprac.2003.11.012

[13] P.E. Waters: Commercial road vehicle noise, Journal of Sound and Vibration. 35, 2 , 155–200, 201–222. (1974).

DOI: 10.1016/0022-460x(74)90047-9

[14] P. Suresh, S. Gokhaleb, A. K. Ghoshal: Evaluating effects of traffic and vehicle characteristics on vehicular emissions near traffic intersections, Transportation Research Part D: Transport and Environment. 14, 3, 180–196. (2009).

DOI: 10.1016/j.trd.2008.12.001

[15] E.A. King, E. Murphyb, H.J. Ricea: Evaluating the impact on noise levels of a ban on private cars in Dublin city centre, Ireland, Transportation Research Part D: Transport and Environment, 16, 7, 532–539. ( 2011).

DOI: 10.1016/j.trd.2011.05.002

[16] O. Serkan ,H. Yilmaz, M , P Ye_il: Evaluation of noise pollution caused by vehicles in the city of Tokat, Turkey, Scientific Research and Essay . 4, 11, pp.1205-1212, ( 2009).
