Oil Pipeline Leakage Detection System Design Based on Single Chip Microcomputer

Abstract:

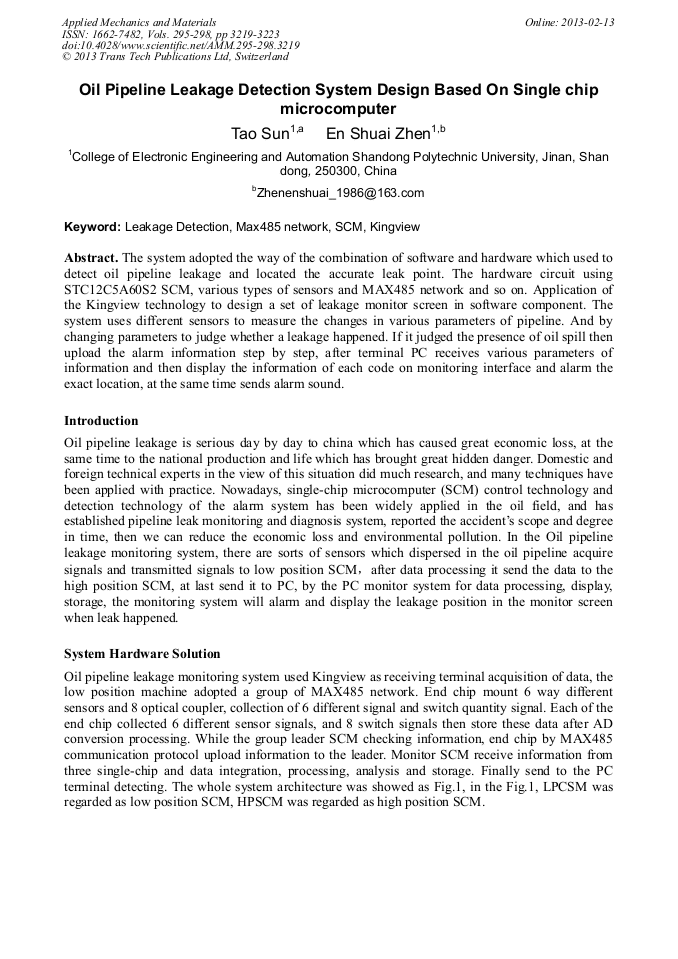

The system adopted the way of the combination of software and hardware which used to detect oil pipeline leakage and located the accurate leak point. The hardware circuit using STC12C5A60S2 SCM、various types of sensors and MAX485 network and so on. Application of the Kingview technology to design a set of leakage monitor screen in software component. The system uses different sensors to measure the changes in various parameters of pipeline. And by changing parameters to judge whether a leakage happened. If it judged the presence of oil spill then upload the alarm information step by step, after terminal PC receives various parameters of information and then display the information of each code on monitoring interface and alarm the exact location, at the same time sends alarm sound.
