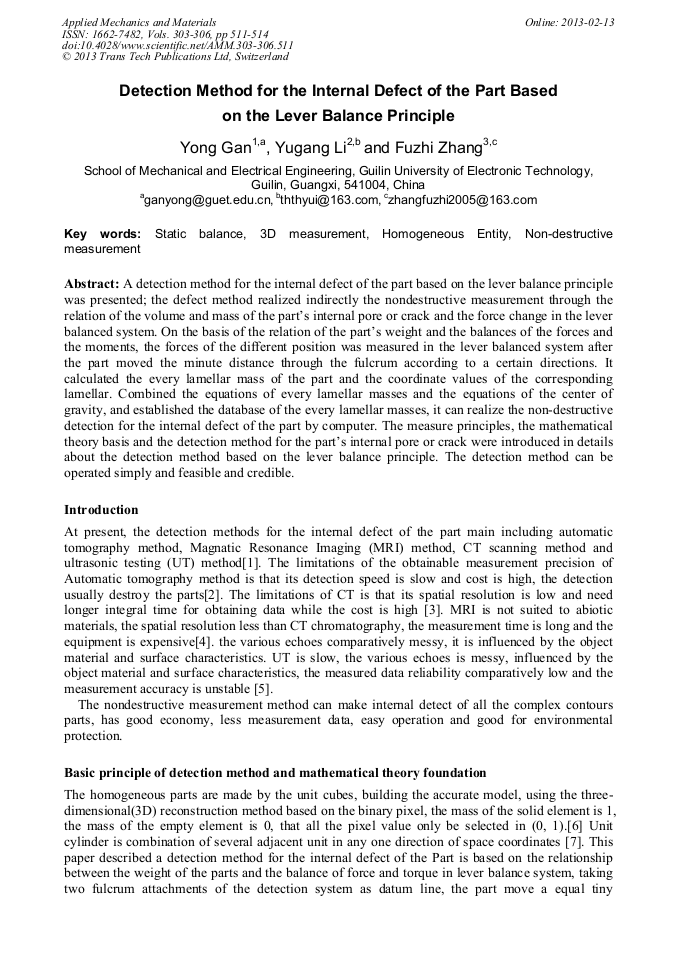

Detection Method for the Internal Defect of the Part Based on the Lever Balance Principle

Abstract:

Abstract: A detection method for the internal defect of the part based on the lever balance principle was presented; the defect method realized indirectly the nondestructive measurement through the relation of the volume and mass of the part’s internal pore or crack and the force change in the lever balanced system. On the basis of the relation of the part’s weight and the balances of the forces and the moments, the forces of the different position was measured in the lever balanced system after the part moved the minute distance through the fulcrum according to a certain directions. It calculated the every lamellar mass of the part and the coordinate values of the corresponding lamellar. Combined the equations of every lamellar masses and the equations of the center of gravity, and established the database of the every lamellar masses, it can realize the non-destructive detection for the internal defect of the part by computer. The measure principles, the mathematical theory basis and the detection method for the part’s internal pore or crack were introduced in details about the detection method based on the lever balance principle. The detection method can be operated simply and feasible and credible.

• Periodical: Applied Mechanics and Materials (Volumes 303-306)
• Pages: 511-514
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.303-306.511
• Online since: February 2013
• Authors: Yong Gan, Yu Gang Li, Fu Zhi Zhang
• Keywords: 3D Measurement, Homogeneous Entity, Non-Destructive Measurement, Static Balance

References

[1] Dingjun Chen and Junting Cheng: Machinery, Vol. 31(4) (2004), pp.19-23 (In Chinese).

[2] Bardsley, Daniel J: 3D surface reconstruction and recognition, Proceedings of SPIE - The International Society for Optical Engineering, Vol. 6539( IV) (2007).

[3] Yingfu Guo, Bing Li, Pengnan Li and Chuanjun Liao: Mining&Processing Equipment, Vol. 33(7) (2005), pp.75-77 (In Chinese).

[4] Skydan, Lalor M. J : 3D shape measurement of automotive glass by using a fringe reflection technique. Measurement Science and Technology, 18(1) (2007), pp.106-114.

DOI: 10.1088/0957-0233/18/1/013

[5] Yong Gan, Ning Sun and Qinghua Kong, etal: Research　On　Method　of　3D　Contour　Digital　Measurement　For　Entity, in: Proceedings　of　ICMEM2007, Vol. 395-400 (2007).

[6] Gan Yong : design for 3d equal-densidy entity contour digital measurement device, proceedings of the second international symposium on the test automation and instrumentation, Vol. 4 : 2306-2310 (2008).

[7] Yong Gan, Ning Sun and Qinghua Kong: Journal of Machine Design, Vol. 10(8-11) (2008) (In Chinese).

[8] Gan Yong, Zhong Jing Ru and Gan Du Fen: Advanced Materials Research, Vol. 201-203 (2011), pp.63-68.
