Development of a Bipolar Pulse Generator for High-Frequency Ultrasound Imaging System

Abstract:

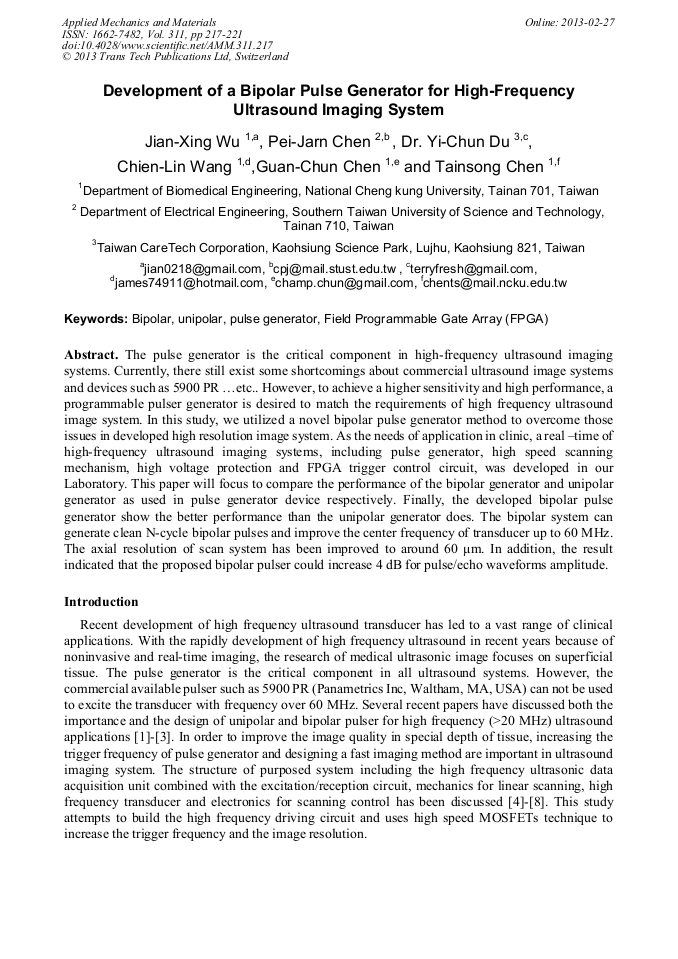

Article Preview

The pulse generator is the critical component in high-frequency ultrasound imaging systems. Currently, there still exist some shortcomings about commercial ultrasound image systems and devices such as 5900 PR …etc.. However, to achieve a higher sensitivity and high performance, a programmable pulser generator is desired to match the requirements of high frequency ultrasound image system. In this study, we utilized a novel bipolar pulse generator method to overcome those issues in developed high resolution image system. As the needs of application in clinic, a real –time of high-frequency ultrasound imaging systems, including pulse generator, high speed scanning mechanism, high voltage protection and FPGA trigger control circuit, was developed in our Laboratory. This paper will focus to compare the performance of the bipolar generator and unipolar generator as used in pulse generator device respectively. Finally, the developed bipolar pulse generator show the better performance than the unipolar generator does. The bipolar system can generate clean N-cycle bipolar pulses and improve the center frequency of transducer up to 60 MHz. The axial resolution of scan system has been improved to around 60 μm. In addition, the result indicated that the proposed bipolar pulser could increase 4 dB for pulse/echo waveforms amplitude.

Info:

Periodical:

Edited by:

Teen-Hang Meen

Pages:

217-221

DOI:

10.4028/www.scientific.net/AMM.311.217

Citation:

J. X. Wu et al., "Development of a Bipolar Pulse Generator for High-Frequency Ultrasound Imaging System", Applied Mechanics and Materials, Vol. 311, pp. 217-221, 2013

Online since:

February 2013

Export:

Price:

$38.00

[1] A. Brown and G. R. Lockwood, A low-cost, high-performance pulse generator for ultrasound imaging, IEEE Trans. Ultrason., Ferroelect., Freq. Contr., vol. 49(6), p.848–851. ( 2002).

DOI: 10.1109/tuffc.2002.1009345

[2] Xiaochen Xu, Jesse T. Yen, and K. Kirk Shung, A low-cost bipolar pulse generator for high-frequency ultrasound applications, IEEE Trans. Ultrason., Ferroelect., Freq. Contr., vol. 54(2), p.443–447. (2007).

DOI: 10.1109/tuffc.2007.259

[3] Weibao Qiu, Yanyan Yu, Fu Keung Tsang, and Lei Sun, A Multifunctional, Reconfigurable Pulse Generator for High-Frequency Ultrasound Imaging, IEEE Trans. Ultrason., Ferroelect., Freq. Contr., vol. 59(7), p.1558–1567. (2012).

DOI: 10.1109/tuffc.2012.2355

[4] K. K. Shung, High Frequency Ultrasonic Imaging, Journal of Ultrasound in Medicine, vol. 17(1), pp.25-30. (2009).

[5] D. A. Knspik, B. Starkoski, C. J. Pablin and F. S. Foster, A 100-200 MHz ultrasound biomicroscope, IEEE Trans. Ultrason., Ferroelect., Freq. Contr., vol. 47, pp.1540-1549. (2000).

DOI: 10.1109/58.883543

[6] F. S. Foster, C. J. Pavlin, K. A. Harasiewicz, D. A. Christopher and D. H. Turnbull, Advances in ultrasound biomicroscopy, Ultrasound Med. Biol., vol. 26, pp.1-27. (2000).

DOI: 10.1016/s0301-5629(99)00096-4

[7] D. H. Turnbull, B. G. Starkoski, K. A. Harasiewicz, J. L. Semple, L. From, A. K. Gupta, D. N. Sauder, and F. S. Foster, A 40-100 MHz B-scan ultrasound backscatter microscope for skin imaging, Ultrasound Med. Biol, vol. 21(1), pp.79-88. (1995).

DOI: 10.1016/0301-5629(94)00083-2

[8] M. Vogt, B. Paul, S. Scharenberg, R. Scharenberg, and H. Ermert, Development of a high ultrasound skin imaging system: Optimization utilizing time domain reflectometry and network analysis, Proc, IEEE US Symposium, pp.744-747. (2003).

DOI: 10.1109/ultsym.2003.1293508

[9] G. R. Lockwood, J. W. Hunt and F. S. Foster, The Design of Protection Circuitry for High-Frequency Ultrasound Imaging System, IEEE Trans. Ultrason., Ferroelect., Freq. Contr., Vol. 38, pp.48-55. (1991).

DOI: 10.1109/58.67834

[10] J.X. Wu, Y.C. Du, C.H. Lin , P.J. Chen and T. Chen, High Speed Scanning Design for Real-time Ultrasound Imaging System with Single Transducer, Energy Procedia., Vol. 13, pp.8931-8937. (2011).

DOI: 10.1016/j.egypro.2011.12.676

[11] Weibao Qiu, Yanyan Yu, Fu Keung Tsang, and Lei Sun, An FPGA-Based Open Platform for Ultrasound Biomicroscopy, IEEE Trans. Ultrason., Ferroelect., Freq. Contr., Vol. 59, pp.1432-1440. (2012).

DOI: 10.1109/tuffc.2012.2344
