Design of a Step-down DC-DC Converter ASIC Applied to Portable Electronic Products

Abstract:

Using CSMC 0.5μm process model, a Step-Down DC-DC converter ASIC applied to portable electronic products was designed. The peak current-mode control PWM with slope compensation was adopted in the power management chip to improve the dynamic response speed of the system; the error amplifier and PWM comparator was redesigned to improve the response speed and stability of the chip; the over-current protection function was included in the peak current sampling circuit; in addition, the circuit with the pulse-skipping mode reduce the battery energy loss. Capable of delivering 600mA Output Current over a wide input voltage range from 3.1 to 5.5V, the ASIC, that has a fixed operation frequency of 800kHz and 95% conversion efficiency, is ideally suited for portable electronic products. No external Schottky diode is required in practical application.

You might also be interested in these eBooks

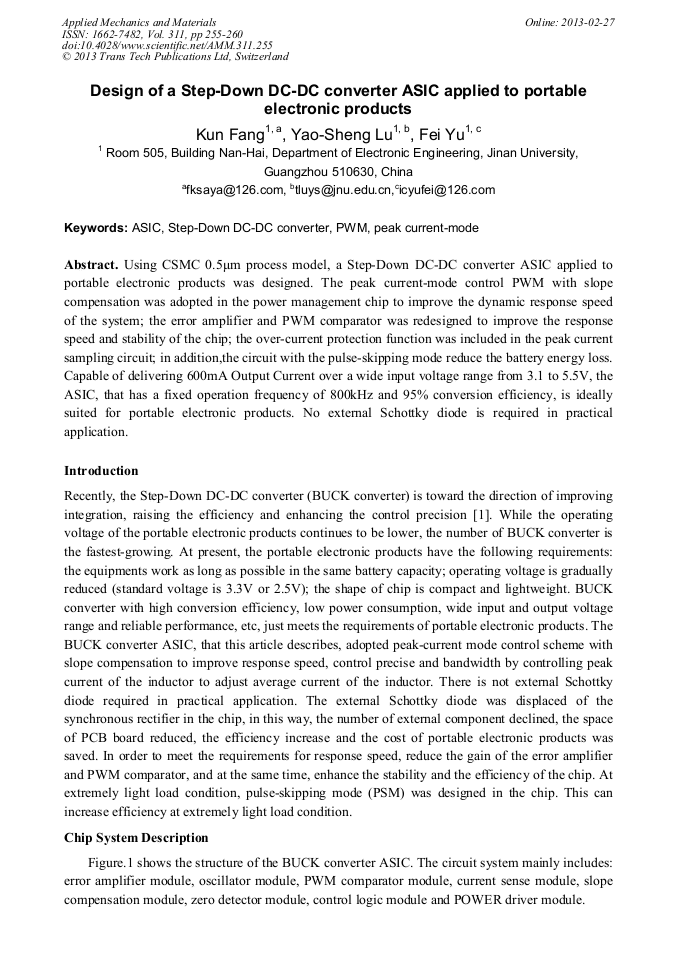

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 311)

Pages:

255-260

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.311.255

Citation:

Cite this paper

Online since:

February 2013

Authors:

Kun Fang, Yao Sheng Lu, Fei Yu

Keywords:

ASIC, Peak Current-Mode, PWM, Step-Down DC-DC Converter

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Abraham I. Pressman, Switching Power Supply Design, second ed, Electronics Industry, 2005, pp.7-16, pp.97-110.

Google Scholar

[2] R. D. Ridley, A new continuous-time model for current-mode control, IEEE Trans Power Electron, (1991)Apr, vol.6, no.2, pp.270-280.

Google Scholar

[3] CHEUNG Fai Lee, PHILIP K T M, A Monolithic current mode CMOS DC-DC converter with on-chip current-sensing technique, J. IEEE Journal of Solid-State Circuits, 2004, vol.39, no.1, pp.3-14.

DOI: 10.1109/jssc.2003.820870

Google Scholar

[4] M. K. Kazimierczuk, Transfer function of current modulator in PWM converters with current-mode control, IEEE Trans. Circuits Syst. vol.47, no.9, (2000) Sep, pp.1407-1412.

DOI: 10.1109/81.883339

Google Scholar

[5] Chung Chich Fang, Exat Orbital Stability Analysis of Static and Dynamic Ramp Compensations in DC-DC Converters, Electronics Industry. (2001)June, pp.2124-2129.

DOI: 10.1109/isie.2001.932045

Google Scholar

[6] C. F. Lee , P. K. T. Mok, A Monolithic Current-Mode CMOS DC-DC Converter With On-Chip Current-Sensing Technique, IEEE J. Solid-State Circuit, vol.39, no.1, (2004)Jan, pp.3-14.

DOI: 10.1109/jssc.2003.820870

Google Scholar
