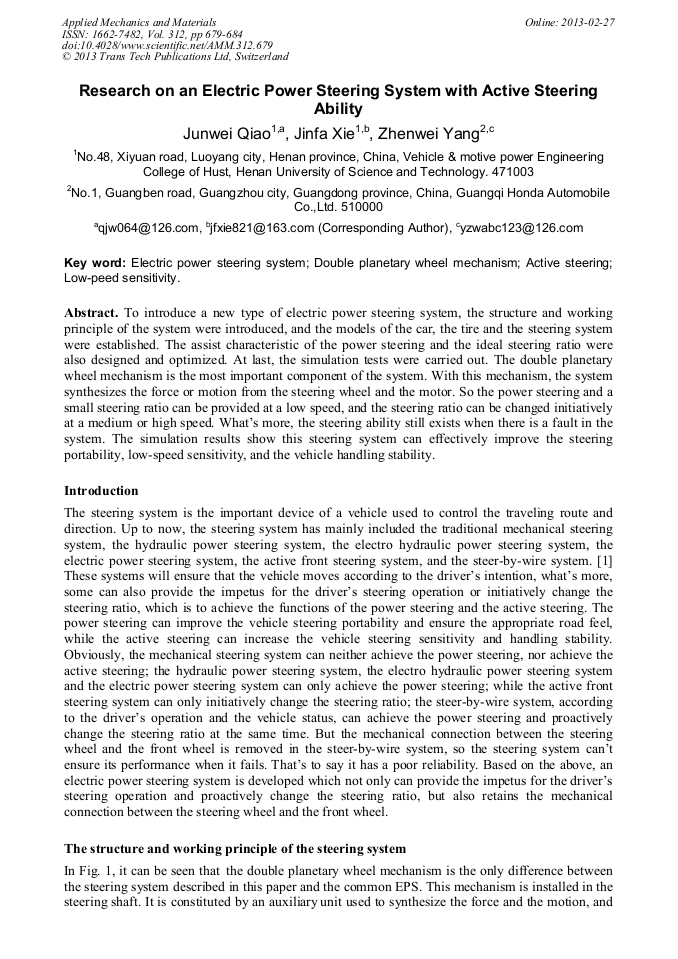

Research on an Electric Power Steering System with Active Steering Ability

Abstract:

To introduce a new type of electric power steering system, the structure and working principle of the system were introduced, and the models of the car, the tire and the steering system were established. The assist characteristic of the power steering and the ideal steering ratio were also designed and optimized. At last, the simulation tests were carried out. The double planetary wheel mechanism is the most important component of the system. With this mechanism, the system synthesizes the force or motion from the steering wheel and the motor. So the power steering and a small steering ratio can be provided at a low speed, and the steering ratio can be changed initiatively at a medium or high speed. Whats more, the steering ability still exists when there is a fault in the system. The simulation results show this steering system can effectively improve the steering portability, low-speed sensitivity, and the vehicle handling stability.

• Periodical: Applied Mechanics and Materials (Volume 312)
• Pages: 679-684
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.312.679
• Online since: February 2013
• Authors: Jun Wei Qiao, Jin Fa Xie, Zhen Wei Yang
• Keywords: Active Steering, Double Planetary Wheel Mechanism, Electric Power Steering System, Low-Peed Sensitivity

References

[1] Hu Aijun, Lv Baozhan: Tractor & Farm transporter Vol. 38 (2011), pp.3-6

[2] Philip Koehn, Michael Eckrich: Active Steering- the BMW approach towards modern steering technology , SAE, (2004)

DOI: 10.4271/2004-01-1105

[3] Yu z s: Auto theory , China Machine Press, (2006)

[4] Huang Binghua, Chen Fuzhen: Journal Of Wut(Information & Management Engineering) Vol. 30 (2008), pp.912-915

[5] Zhao Wanzhong, Shi Guobiao, Lin Yi, etc: Chinese Joural Of Mechanical Engineering Vol. 24 (2011), pp.584-590

[6] Shi Guobiao, Zhao Wanzhong, Wang Chengling, etc: Transactions of Beijing Institute of Technology Vol. 28 (2008), pp.208-209

[7] Dong Xia, Chen Kangning, Li Tianshi: jixie kongzhikikun jichu , xi'an jiaotong univercity press, (2005)

[8] Zhao Wan-zhong, Sun Pei-kun, Liu Shun,etc: J.Cent.South Univ Vol. 19 (2012), pp.974-981

[9] Manfed Mistschke, Henning Wallentowitz: qiche donglixue , China Communications Press, (1997)

[10] Shang Gaogao, Hong Ze, Zhang Hongdang, etc: journal of jiangsu university vol. 31 (2010), pp.278-282

[11] Xu Zhongming, Wang Jiquan, Yu Feng, etc: Journal of Chongqing University of Technology (Natural Science) Vol. 26 (2012), pp.1-7

[12] Guo Konghui. Qiche Caozongdinglixue, Jilin Science & Technology Press, (1991)
