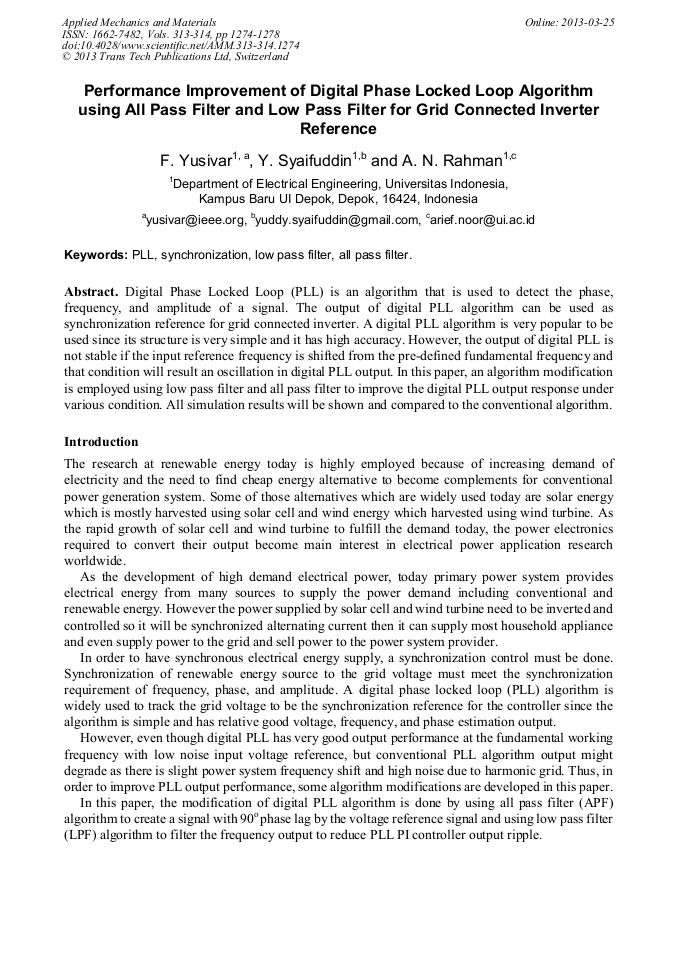

Performance Improvement of Digital Phase Locked Loop Algorithm Using all Pass Filter and Low Pass Filter for Grid Connected Inverter Reference

Abstract:

Digital Phase Locked Loop (PLL) is an algorithm that is used to detect the phase, frequency, and amplitude of a signal. The output of digital PLL algorithm can be used as synchronization reference for grid connected inverter. A digital PLL algorithm is very popular to be used since its structure is very simple and it has high accuracy. However, the output of digital PLL is not stable if the input reference frequency is shifted from the pre-defined fundamental frequency and that condition will result an oscillation in digital PLL output. In this paper, an algorithm modification is employed using low pass filter and all pass filter to improve the digital PLL output response under various condition. All simulation results will be shown and compared to the conventional algorithm.

• Periodical: Applied Mechanics and Materials (Volumes 313-314)
• Pages: 1274-1278
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.313-314.1274
• Online since: March 2013
• Authors: F. Yusivar, Y. Syaifuddin, A.N. Rahman
• Keywords: All Pass Filter, Low Pass Filter, PLL, Synchronization

References

[1] Castilla, M., Miret, J., Matas, J., Vicuña, L. G., & Guerrero, J. M. (2008). Linear Current Control Scheme With Series Resonant Harmonic Compensator for Single-Phase Grid-Connected Photovoltaic Inverters. IEEE Transactions on Industrial Electronics , 2724-2728.

DOI: 10.1109/tie.2008.920585

[2] Langton, C. (1998). Intuitive Guide to Principles of Communication. Retrieved November 20, 2010, from complextoreal: http://www.complextoreal.com

[3] A. Gray. Modern Differential Geometry. CRE Press, 1998.

[4] Mok, H. S., Choe, G. H., Kim, S. H., Lee, J. M., & Suh, I. Y. (2008). Current THD Reduction and Anti-islanding Detection in Distributed Generation with Grid Voltage Distortion. IEEE International Conference on Sustainable Energy Technologies, 2008. (ICSET 2008) , 990.

DOI: 10.1109/icset.2008.4747151

[5] Rey, A. B., Pablo, S. d., Ruiz, J., & Ruz, F. d. (2005). Two Novel Current Source Sliding Mode Control Strategies for a 3-Phase Grid-Connected Inverter. Proceedings of the IEEE International Symposium on Industrial Electronics, 2005. (ISIE 2005). Volume: 2 , 763-767.

DOI: 10.1109/isie.2005.1529011

[6] Silva, S. A., Novochadlo, R., & Modesto, R. A. (2008). Single-Phase PLL Structure Using Modified p-q Theory for Utility Connected Systems. 4707.

DOI: 10.1109/pesc.2008.4592712

[7] Sujanarko, B. (2010). Metode Sinkronisasi Inverter Satu Fase dengan Jaringan Listrik yang Terdistorsi. TELKOMNIKA , 49-56.

DOI: 10.12928/telkomnika.v8i1.604

[8] Syamsuddin, S., Rahim, N., Krismadinata, & Selvaraj, J. (n.d.). Implementation of TMS320F2812 in Islanding Detection for Photovoltaic Grid Connected Inverter. International Conference for Technical Postgraduates (TECHPOS), 2009 , 1-3.

DOI: 10.1109/techpos.2009.5412085
