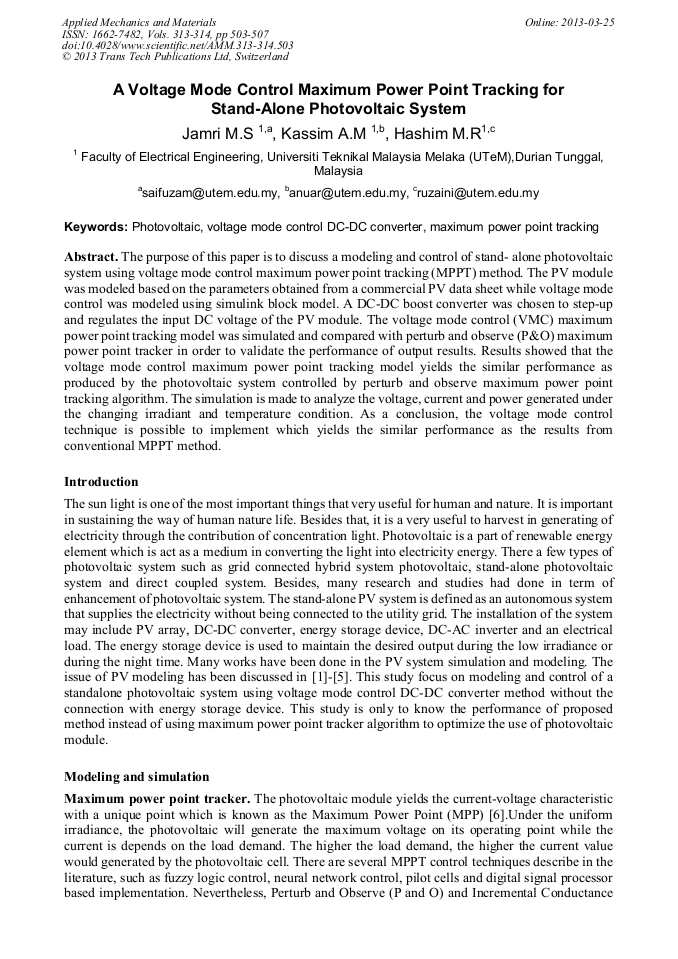

A Voltage Mode Control Maximum Power Point Tracking for Stand-Alone Photovoltaic System

Abstract:

The purpose of this paper is to discuss a modeling and control of stand- alone photovoltaic system using voltage mode control maximum power point tracking (MPPT) method. The PV module was modeled based on the parameters obtained from a commercial PV data sheet while voltage mode control was modeled using simulink block model. A DC-DC boost converter was chosen to step-up and regulates the input DC voltage of the PV module. The voltage mode control (VMC) maximum power point tracking model was simulated and compared with perturb and observe (P&O) maximum power point tracker in order to validate the performance of output results. Results showed that the voltage mode control maximum power point tracking model yields the similar performance as produced by the photovoltaic system controlled by perturb and observe maximum power point tracking algorithm. The simulation is made to analyze the voltage, current and power generated under the changing irradiant and temperature condition. As a conclusion, the voltage mode control technique is possible to implement which yields the similar performance as the results from conventional MPPT method.

• Periodical: Applied Mechanics and Materials (Volumes 313-314)
• Pages: 503-507
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.313-314.503
• Online since: March 2013
• Authors: M.S. Jamri, A.M. Kassim, M.R. Hashim
• Keywords: Maximum Power Point Tracking (MPPT), Photovoltaic (PV), Voltage Mode Control DC-DC Converter

References

[1] Theocharis, A.D., A. Menti, J. Milias-Argitis and T. Zacharias, 2005. Modeling and simulation of a single-phase residential photovoltaic system. Proceeding of the IEEE Russia Power Tech, June 27-30, IEEE Computer Society, St. Petersburg, pp: 1-7

DOI: 10.1109/PTC.2005.4524407

[2] Ropp, M.E. and S. Gonzalez, 2009. Development of a MATLAB/simulink model of a single-phase grid connected photovoltaic system. IEEE Trans. Energy Conver., 24: 195-202

DOI: 10.1109/TEC.2008.2003206

[3] Ito, R., Y. Matsuzaki, T. Tani and T. Yachi, 2003. Evaluation of performance of MPPT equipment in photovoltaic system. Proceeding of the 25th International Telecommunications Energy Conference, Oct. 19-23, IEEE Computer Society, USA.,pp:256-260

[4] Bae, H.S., J.H. Park, B.H. Cho and G.J. Yu, 2005. New control strategy for 2-stage utility-connected photovoltaic power conditioning system with a low cost digital processor. Proceedings of the IEEE 36th Power Electronics Specialists Conference, June 16-16, IEEE Xplore Press, pp: 2925-2929.

DOI: 10.1109/pesc.2005.1582049

[5] Armstrong, S. and W.G. Hurley, 2004. Self-regulating maximum power point tracking for solar energy systems. Proceeding of the 39th International Universities Power Engineering Conference, Sept. 6-8, University of the West of England (UWE), Bristol, UK., pp: 1339-1350.

[6] Femia, N., G. Petrone, G. Spagnuolo and M. Vitelli, 2005. Optimization of perturb and observe maximum power point tracking method. IEEE Trans. Power Elect., 20: 963-973

DOI: 10.1109/TPEL.2005.850975

[7] Mahmoud, A.M.A., H.M. Mashaly, S.A. Kandil, H. El Khashab and M.N.F. Nashed, 2000. Fuzzy logic implementation for photovoltaic maximum power tracking. Proceeding of the 26th Annual Conference of the IEEE International Workshop on Robot and Human Interactive Communication, Oct. 22-28, IEEE Computer Society,pp: 735-740

DOI: 10.1109/IECON.2000.973240

[8] Marouani, R. and F. Bacha, 2009. A maximum-power point tracking algorithm applied to a photovoltaic water-pumping system. Proceeding of the 8th International Symposium on Advanced Electromechanical Motion Systems and Electric Drives Joint Symposium, Sept. 2009, pp:16

DOI: 10.1109/ELECTROMOTION.2009.5259078
