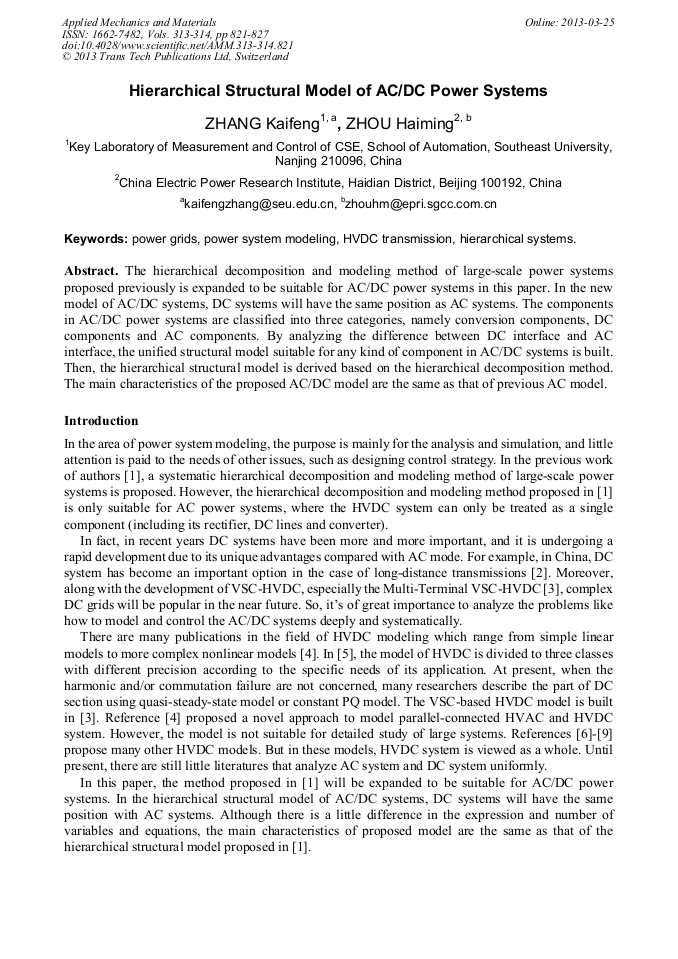

Hierarchical Structural Model of AC/DC Power Systems

Abstract:

The hierarchical decomposition and modeling method of large-scale power systems proposed previously is expanded to be suitable for AC/DC power systems in this paper. In the new model of AC/DC systems, DC systems will have the same position as AC systems. The components in AC/DC power systems are classified into three categories, namely conversion components, DC components and AC components. By analyzing the difference between DC interface and AC interface, the unified structural model suitable for any kind of component in AC/DC systems is built. Then, the hierarchical structural model is derived based on the hierarchical decomposition method. The main characteristics of the proposed AC/DC model are the same as that of previous AC model.

• Periodical: Applied Mechanics and Materials (Volumes 313-314)
• Pages: 821-827
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.313-314.821
• Online since: March 2013
• Authors: Kai Feng Zhang, Hai Ming Zhou
• Keywords: Hierarchical Systems, HVDC Transmission, Power Grids, Power System Modeling

References

[1] X.Z. Dai and K.F. Zhang: Hierarchical structural model of large-scale complex power systems and its self-similarity. Proceedings of the CSEE, Vol. 27 (2007), p.6.

[2] L. Chen, H.J. Liu and G.H. Chen: Effect of HVDC modulating in Three Gorges HVDC transmission links. High Voltage Engineering, Vol. 32 (2006), p.87.

[3] M. Durrant, H. Werner and K. Abbott: Model of a VSC HVDC terminal attached to a weak AC system. Proc. IEEE Control Application Conf. (2003), p.178.

DOI: 10.1109/cca.2003.1223288

[4] H.R. Najafi, F. Robinson and A. Shoulate: Novel dynamic modeling of parallel HVAC/HVDC system. University Power Engineering Conf. (2004), p.1160.

[5] Prabba Kunder: Power System Stability and Control (Electric Power Press, Beijing 2001).

[6] R.K. Pandey: Stability analysis of AC/DC system with Multirate discrete-time HVDC converter model. IEEE Trans. Power Delivery, Vol. 23 (2008), p.311.

DOI: 10.1109/tpwrd.2007.911128

[7] Kala Meah and A.H.M. Sadrul Ula: Simulation study of the CIGRE HVDC benchmark model with the WSCC nine-bus power system network. Proc. IEEE power system conference and exposition (2009), p.1.

DOI: 10.1109/psce.2009.4840025

[8] X.H. Li, F. Long, Z.X. Cai and L. Zhu: Modeling and analysis of large scale power system with muti-infeed HVDC by EMTDC. Proc. Asia-Pacific Power and Energy Engineering Conf. (2010), p.1.

DOI: 10.1109/appeec.2010.5448241

[9] Y. Wang, S.Z. Zhao, C. Huangfu and J.J. Jiang: Dynamic model and control of voltage source converter based HVDC. Proc. Asia-Pacific Power and Energy Engineering Conf. (2009), p.1.

DOI: 10.1109/appeec.2009.4918301
