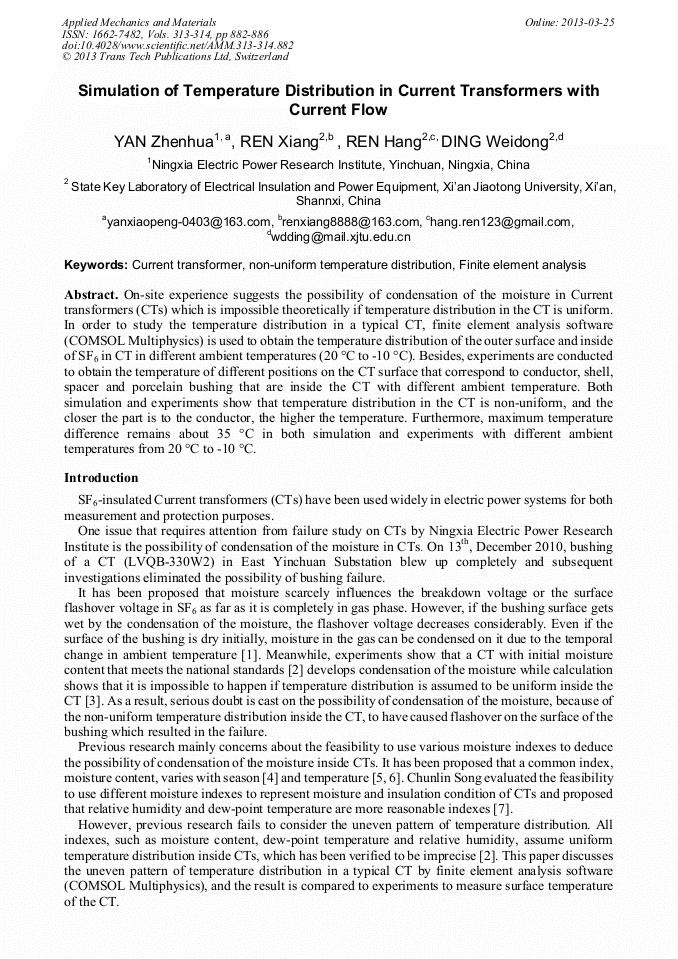

Simulation of Temperature Distribution in Current Transformers with Current Flow

Abstract:

On-site experience suggests the possibility of condensation of the moisture in Current transformers (CTs) which is impossible theoretically if temperature distribution in the CT is uniform. In order to study the temperature distribution in a typical CT, finite element analysis software (COMSOL Multiphysics) is used to obtain the temperature distribution of the outer surface and inside of SF₆ in CT in different ambient temperatures (20 °C to-10 °C). Besides, experiments are conducted to obtain the temperature of different positions on the CT surface that correspond to conductor, shell, spacer and porcelain bushing that are inside the CT with different ambient temperature. Both simulation and experiments show that temperature distribution in the CT is non-uniform, and the closer the part is to the conductor, the higher the temperature. Furthermore, maximum temperature difference remains about 35 °C in both simulation and experiments with different ambient temperatures from 20 °C to-10 °C.

• Periodical: Applied Mechanics and Materials (Volumes 313-314)
• Pages: 882-886
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.313-314.882
• Online since: March 2013
• Authors: Zhen Hua Yan, Xiang Ren, Hang Ren, Wei Dong Ding
• Keywords: Current Transformer (CT), Finite Element Analysis (FEA), Non-Uniform Temperature Distribution

References

[1] T. Nitta, Y. Shibuya, Y. Fujiwara, Y. Arahata, H. Takahashi, H. Kuwahara, IEEE Transactions on Power Apparatus and Systems Vol. PAS-97 (1978), p.959

DOI: 10.1109/tpas.1978.354569

[2] National Development and Reform Commission, in: Method of Humidity Measurement of SF6 Insulated Gas in Electrical Equipment. The National Standards in Power Industrial: DL/T 506-2007 (2008) (in Chinese)

[3] Zhenhua Yan, Xiang Ren, Hang Ren, Weidong Ding: submitted to ICMIA' 2012.

[4] IEEE Standards Board, in: IEEE Guide for Moisture Measurement and Control in SF6 Gas-Insulated Equipment. (1993)

DOI: 10.1109/ieeestd.2013.6692861

[5] Li Taijun, Wang Zhangqi, Zhang Ting, Liu Quanzhi, Proceedings of the CSEE Vol. 23 (2003), p.169 (in Chinese)

[6] Chao Lv, Xiaoguang Hu, Proceedings of the CSEE Vol. 26 (2006), p.151 (in Chinese)

[7] Chun Lin, Ningxia Electric Power Vol. 6 (2010), p.55 (in Chinese)
